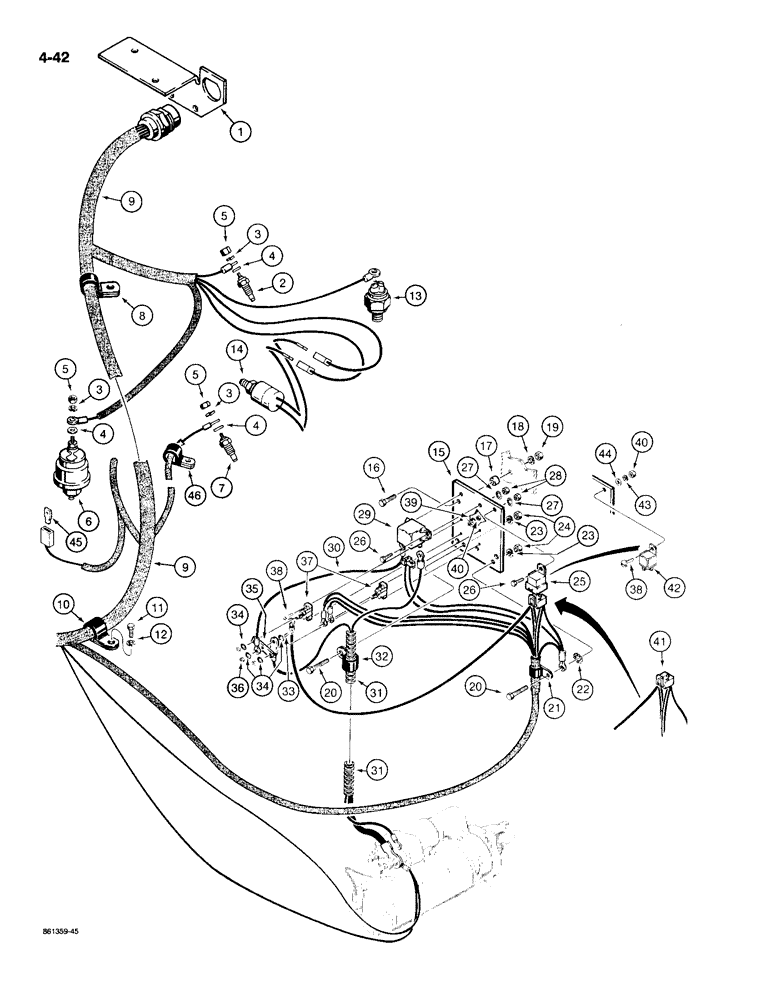

Запчасти Case W20C (4-042) - ELECTRICAL CIRCUIT, REAR HARNESS TO SWITCHES & SOLENOIDS, USED ON W18B & BEFORE W20C P.I.N. 9155766 (04) - ELECTRICAL SYSTEMS

1

L78403

BRACKET

- harness

1шт.

2

L127075

TEMPERATURE SENDER

SENDER - torque converter oil temperature

1шт.

3

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

4

195-12

WASHER,#10

- flat, No. 10

3шт.

5

129-27

NUT,Hex, #10 - 32

- hex, No. 10 - 32 NF

3шт.

6

L109945

TRANSMITTER

SENDER - air pressure

1шт.

7

L127075

TEMPERATURE SENDER

SENDER - water temperature

1шт.

8

49838

CLAMP

- harness

1шт.

9

L114534

HARNESS

- rear, used with square relays

1шт.

10

R14668

CLAMP

- wire

1шт.

11

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

REF

INSTRUCTION

SWITCH - neutral start, see Figure 4-028, Ref. 29 & 45 - 48

1шт.

14

REF

INSTRUCTION

SWITCH - backup alarm, see Figure 4-120, Ref. 1 & 1A, for correct switch

1шт.

15

L115657

PLATE

- relay mounting

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

17

L78175

HUB

SPACER - bolt

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

NLS

NO LONGER SERVICED

- harness

1шт.

22

193-45

WASHER,Ext-Int Tooth, 5/16"

- external-internal tooth lock, 5/16"

1шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

25

L114539

RELAY

- cab, plastic, no longer available, order items 38, 40, 42, 43, and 44

1шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(1) used with plastic relay Hex, 1/4"-20 x 3/4", G5, Full Thd

2-3шт.

27

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4"

2-3шт.

28

25-104

NUT,1/4"-20, G5

(1) used with plastic relay 1/4"-20, G5

2-3шт.

29

L115883

RELAY

- starter

1шт.

30

L114058

HARNESS

WIRE - jumper

1шт.

31

L114132

CABLE

-, Serial Range: starter-relay

1шт.

32

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- cable

1шт.

33

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan head Phillips, No. 10 NC x 5/8 inch

1шт.

34

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

4шт.

35

L114028

BAR

- connector

1шт.

36

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

1шт.

37

L114199

BREAKER

CIRCUIT BREAKER - 30 amp

2шт.

38

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- pan head slotted, No. 10 - 24 NC x 3/4", (1) used with metal relay

4-5шт.

39

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

6шт.

40

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, (1) used with metal relay

6-7шт.

41

L114316

SOCKET

- relay, used with L36275 kit, see Figure 4-038

1шт.

42

L118429

RELAY

- lamps, metal

1шт.

43

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Used with metal relay #10

1шт.

44

195-13

WASHER,#10

- flat, No. 10, used with metal relay

1шт.

45

L59682

TERMINAL CONNECTOR

TERMINAL - flat

1шт.

46

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire

1шт.
