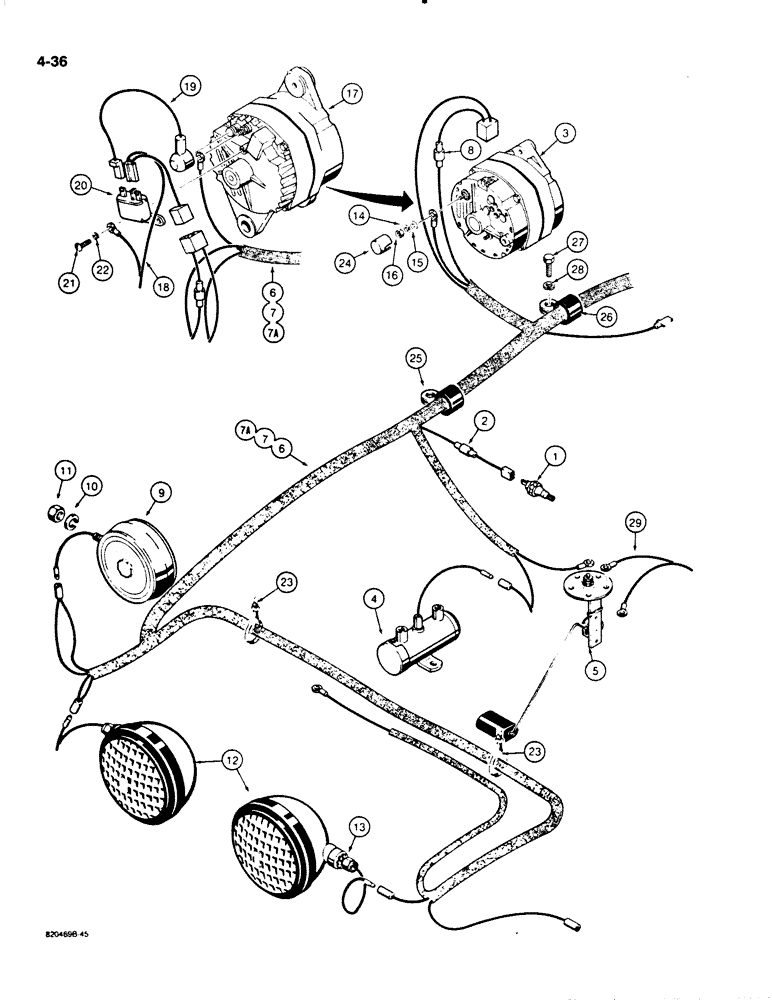

Запчасти Case W20C (4-036) - ELECTRICAL CIRCUIT, REAR HARNESS TO ALTERNATOR AND LAMPS, USED ON W18B & BEFORE W20C P.I.N. 9155766 (04) - ELECTRICAL SYSTEMS

1

A66737

SWITCH, PRESSURE

SENDER - engine oil pressure

1шт.

Replaced by L111811.

1шт.

2

L73576

RESISTOR

- harness

1шт.

3

REF

INSTRUCTION

ALTERNATOR - 40 amp, see Figure 4-056 for correct alternator and mounting parts, see item 17 for 65 amp alternator

1шт.

4

L52634

PUMP

- fuel, parts list Figure 3-16

1шт.

5

L110128

TRANSMITTER

SENDER - fuel gauge

1шт.

6

L109536

WIRE HARNESS

HARNESS - rear, used with backup alarm switch with screw type terminals, not available, order L110799 harness and L36238 kit listed below

1шт.

7

L110799

HARNESS

- rear, used with backup alarm switch with blade type terminals and round metal relays

1шт.

7a

L114534

HARNESS

- rear, used with square relays

1шт.

8

L73576

RESISTOR

- 40 ohms

1шт.

9

L59897

LAMP

- stop and tail, parts list Figure 4-078

1шт.

10

92-8

LOCK WASHER,1/2"

1шт.

11

129-125

NUT,1/2"-20, G5

1шт.

12

REF

INSTRUCTION

FLOOD LAMP - see Figure 4-074 for correct assembly and components

1-2шт.

13

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1-2шт.

14

892-1106

LOCK WASHER,M6

1шт.

15

195-16

WASHER,#12

- flat, No. 12

1шт.

16

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1

1шт.

17

REF

INSTRUCTION

ALTERNATOR - 65 amp, see Figure 4-058 for correct alternator and mounting parts, see item 3 for 40 amp alternator

1шт.

18

L72960

ELECTRICAL WIRE

WIRE - L72955 alternator only, Serial Range: harness-relay

1шт.

19

L72959

ELECTRICAL WIRE

WIRE - L72955 alternator only, Serial Range: alternator-relay

1шт.

20

L73433

RELAY

- L72955 alternator only

1шт.

21

71-510

SCREW - round head, slotted, 5/16" - 18 NC x 5/8"

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

L106774

CAP

- 40 amp alternator

1шт.

25

49838

CLAMP

- harness, uses existing hardware on left-hand side plate

1шт.

26

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

1шт.

29

A31060

ELECTRICAL WIRE

WIRE - ground

1шт.

L36238

KIT

- electrical, includes terminals to adapt, Serial Range: harness-switches

1шт.
