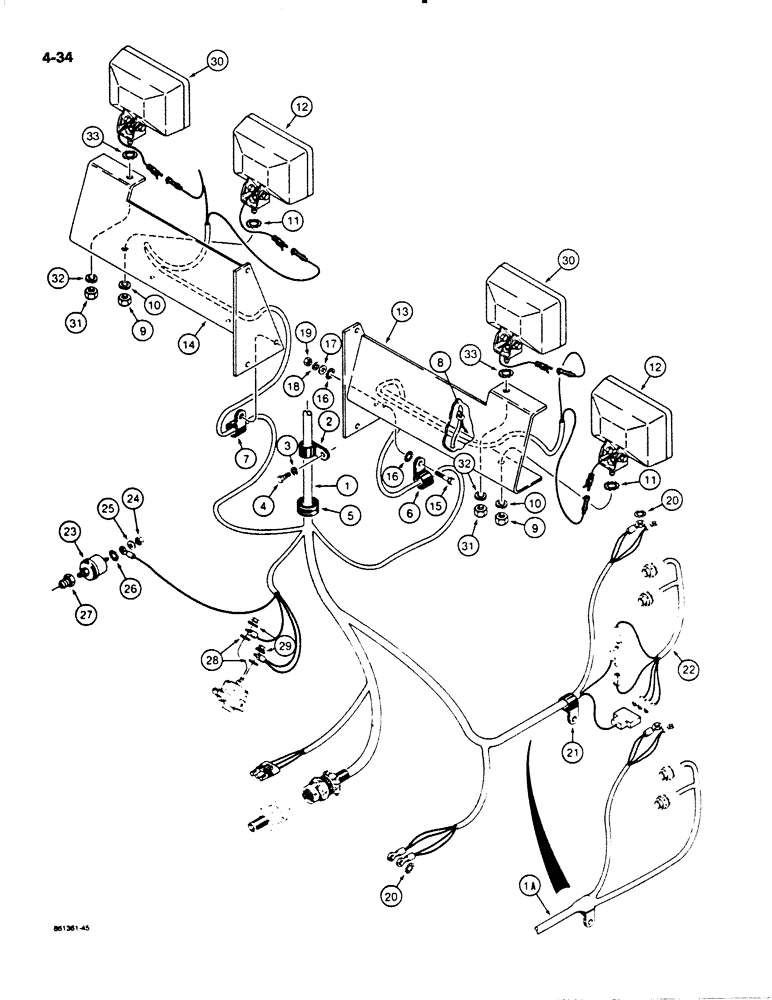

Запчасти Case W20C (4-034) - ELEC. CIRCUIT, FRONT HARNESS TO FLOOD LAMPS & LOADER VALVE USED ON W20C P.I.N. 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L115899

HARNESS

- front, Serial Range: -9159101

1шт.

1a

L117049

HARNESS

- front, Start Serial: 9159101

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

5

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

- front harness

1шт.

6

49838

CLAMP

- wire

1шт.

7

49845

CLAMP

- wire

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

12

L113373

LIGHT ASSY.

LAMP ASSEMBLY - flood, parts list Figure 4-076

2шт.

13

L115777

BRACKET

- lamp mounting, right-hand

1шт.

14

L115778

BRACKET

- lamp mounting, left-hand

1шт.

15

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

16

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

12шт.

17

195-104

WASHER,3/8"

- flat, , plated 3/8"

6шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

20

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

2шт.

21

49836

CLAMP

- wire, if used

1шт.

22

L114490

HARNESS

- loader valve, if used, Serial Range: -9159101

1шт.

23

L109945

TRANSMITTER

SENDER - air pressure

1шт.

24

129-37

NUT,#10-32

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

26

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

27

221-1054

BUSHING

REDUCER - 1/2" x 1/8" NPT

1шт.

28

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

29

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

30

L113374

LIGHT

LAMP ASSEMBLY - front driving, parts list Figure 4-076

2шт.

31

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.
