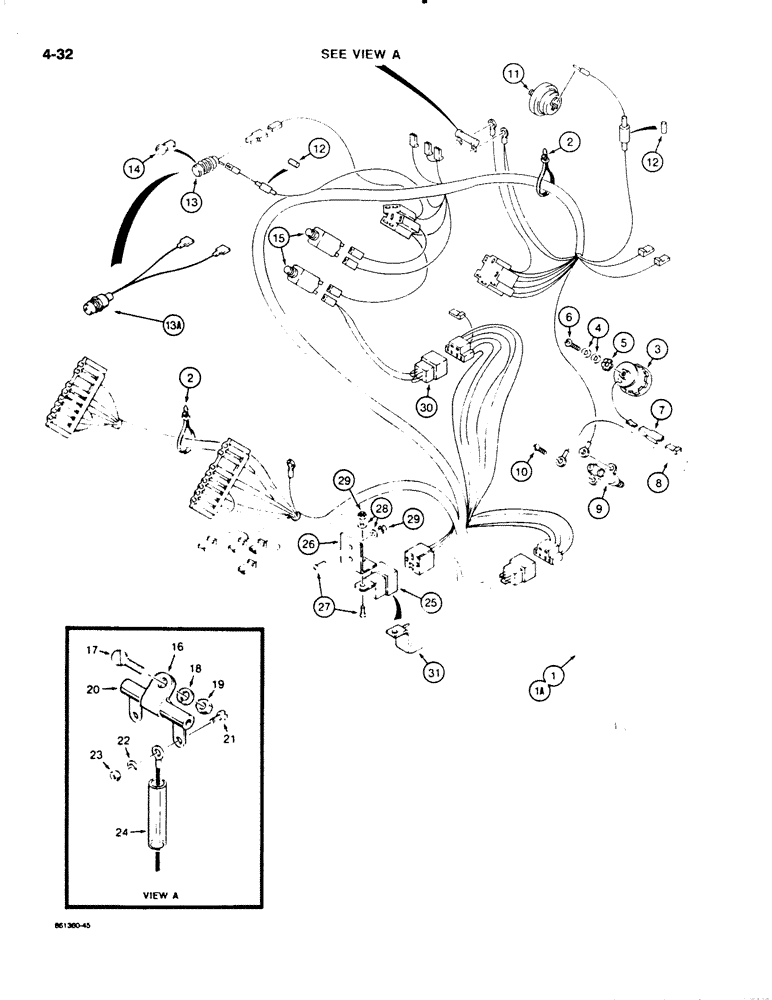

Запчасти Case W20C (4-032) - ELECTRICAL CIRCUIT, FRONT HARNESS TO INSTRUMENT PANELS, USED ON W20C P.I.N 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L115899

HARNESS

- front, Serial Range: -9159101

1шт.

1a

L117049

HARNESS

- front, Start Serial: 9159101

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

L115252

BUZZER

- low air pressure

1шт.

Penn DOT special units were built with rectangular low air buzzer with two terminals. L103524.

1шт.

4

195-510

WASHER,#8

- flat, No. 8, plated

2шт.

5

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

1шт.

6

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

MACHINE SCREW - pan head slotted, No. 8 - 32 NC x 3/8"

1шт.

7

223-166

CONNECTOR, ELEC

CONNECTOR - female

1шт.

8

L114771

HARNESS

WIRE - jumper

1шт.

9

L48480

SWITCH

- air pressure

1шт.

10

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

MACHINE SCREW - pan head slotted, No. 8 - 32 NC x 1/4"

2шт.

11

L57937

SWITCH

- air parking brake

1шт.

12

L73576

RESISTOR

- 40 ohm

2шт.

13

H371849

INDICATOR

LAMP - hydraulic filter restriction indicator, Includes: Ref. 14, Serial Range: -9161673

1шт.

13

H371849

INDICATOR

LAMP - hydraulic filter restriction indicator, Includes: Ref. 14, Serial Range: 9161681-9161681

1шт.

13

H371849

INDICATOR

LAMP - hydraulic filter restriction indicator, Ref. 14, Serial Range: 9161695-9161695

1шт.

13a

L118382

LAMP

- hydraulic filter restriction indicator, Includes: Ref. 14, Serial Range: 9161673-9161680

1шт.

13a

L118382

LAMP

- hydraulic filter restriction indicator, Includes: Ref. 14, Serial Range: 9161682-9161694

1шт.

13a

L118382

LAMP

- hydraulic filter restriction indicator, Includes: Ref. 14, Start Serial: 9161696

1шт.

14

A23454

BULB

- red, No. 1895R

1шт.

15

L59970

BREAKER

CIRCUIT BREAKER - 5 amp

2шт.

16

L70217

CLAMP

- resistor

1шт.

17

171-61

SCREW,Sl Flat Hd, #6 - 32 x 1/2"

MACHINE SCREW - flat head slotted, No. 6 - 32 NC x 1/2"

1шт.

18

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

1шт.

19

129-15

NUT,#6-32

1шт.

20

L113617

RESISTOR

- 15 ohm, 25 watt

1шт.

21

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

MACHINE SCREW - pan head slotted, No. 8 - 32 NC x 1/4"

2шт.

22

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

23

129-16

NUT,#8-32

2шт.

24

223-125

TUBE

SLEEVE - heat shrinkable

2шт.

25

L114539

RELAY

- lamps, plastic, no longer available, order item 31, L118429 relay

1шт.

26

L114558

BRACKET

- relay mounting

1шт.

27

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1/2", plated

3шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

29

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

3шт.

30

L114427

HARNESS

JUNCTION - harness

1шт.

31

L118429

RELAY

- lamps, metal

1шт.
