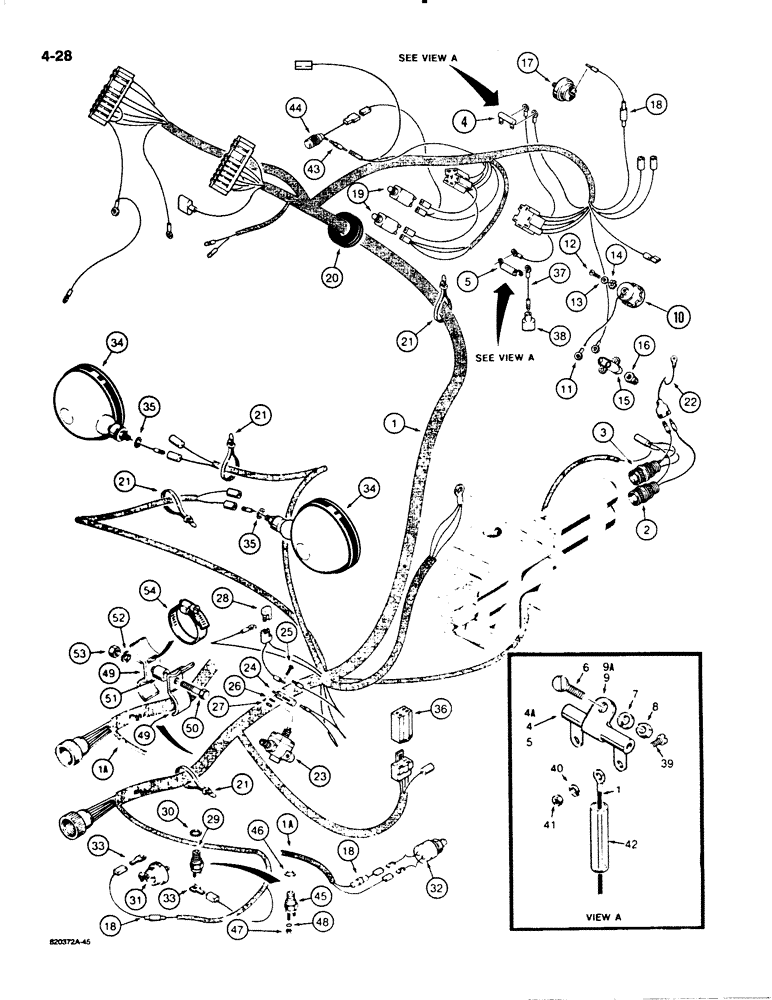

Запчасти Case W20C (4-028) - ELEC. CIRCUIT, FRONT HARNESS TO INSTR. PANEL, LAMPS & LOADER VALVE (04) - ELECTRICAL SYSTEMS

L113780

HARNESS

- front, used without panel lamps

1шт.

L109547

HARNESS

- front, used with panel lamps, not available, order L113780 harness and L36238 kit listed below

1шт.

1

NSS

NOT SOLD SEPARAT

HARNESS - used with L109547 harness

1шт.

1a

NSS

NOT SOLD SEPARAT

HARNESS - front, used without panel lamps, Includes: Ref. 2 & 3

1шт.

2

N7517

CONNECTOR, ELEC

CONNECTOR - 2 plug

1шт.

3

N7518

CONNECTOR, ELEC

CONNECTOR - 3 plug

1шт.

4

L59799

RESISTOR

- 15 ohm, 12 watt, used without optional gauges, order L113617 resistor, item 4A and L70217 clamp, item 9A

1шт.

4a

L113617

RESISTOR

- 15 ohm, 25 watt, used with optional gauges

1шт.

5

L103985

RESISTOR

- 39 ohm, used with L109547 harness

1шт.

6

171-61

SCREW,Sl Flat Hd, #6 - 32 x 1/2"

- flat head, No. 6 - 32 NC x 1/2"

1-2шт.

7

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

1-2шт.

8

129-15

NUT,#6-32

1-2шт.

9

L73415

CLAMP

- resistor, used with L59799 and L103985 resistor

1-2шт.

9a

L70217

CLAMP

- resistor, used with L113617 resistor

1шт.

10

L107890

BUZZER

ALARM - warning, air pressure, used with 223-48 terminal

1шт.

11

223-48

FITTING

TERMINAL - straight

1шт.

12

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- No. 8 - 32 NC x 3/8"

1шт.

13

195-10

WASHER,#8

1шт.

14

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - external tooth lock, No. 8

1шт.

15

S213102

INDICATOR

SWITCH - air pressure, interchangeable with L48480 switch, when replacing original production switch, also order item 17

1шт.

16

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

1шт.

17

L57937

SWITCH

- air parking brake

1шт.

18

L73576

RESISTOR

- 40 ohm

2шт.

19

L59970

BREAKER

CIRCUIT BREAKER - 5 amp

2шт.

20

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

- split

1шт.

L36238

KIT

- electrical, includes terminals to adapt, Serial Range: harness-switches

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

L50380

ELECTRICAL WIRE

WIRE - ground, hydraulic valve to tractor frame

1шт.

23

L48128

VALVE

SWITCH - stop lamp and double check valve

1шт.

24

L58697

RESISTOR

- 10 ohm, stop lamp switch, used with single lamp

1шт.

24

L59040

RESISTOR

- 5 ohm, stop lamp switch, used with two lamps

1шт.

25

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- round head, No. 8 - 32 NC x 1/2"

1шт.

26

195-10

WASHER,#8

1шт.

27

129-6

NUT,#8-32

1шт.

28

L71879

DIODE ELEMENT,400V, 3A

DIODE - stop lamp switch

1шт.

29

L77962

SWITCH

- neutral start, no longer available, order items 45-48, Includes: Ref. 30

1шт.

30

D80515

WASHER

GASKET - aluminum

1шт.

31

D65457

SWITCH

- clutch, pressure, used with L109547 harness, order L112587 switch and L36238 kit listed below

1шт.

L112587 switch is used with old front harness with one wire. You must ground one of the switch wires.

1шт.

32

L112587

SWITCH

- clutch pressure, used with L113380 harness

1шт.

33

L59682

TERMINAL CONNECTOR

TERMINAL - straight, used with D65457 switch

1-2шт.

34

REF

INSTRUCTION

LAMP - flood, see Figure 4-074 for correct assembly and components

2шт.

35

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

36

223-160

CONNECTOR, ELEC

PLUG - electrical, if used

1шт.

37

A14734

ELECTRICAL WIRE

WIRE - to instrument panel lamp, used with L109547 harness

1шт.

38

A8210

CONNECTOR, ELEC

CONNECTOR - three way, used with L109547 harness

1шт.

39

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- pan head, No. 8 - 32 NC x 1/4"

2-4шт.

40

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2-4шт.

41

129-6

NUT,#8-32

2-4шт.

42

223-125

TUBE

SHRINK TUBING - resistor

2-4шт.

43

L58497

RESISTOR

- 40 ohm

1шт.

44

H371849

INDICATOR

LAMP - filter warning

1шт.

45

A160237

SWITCH

- neutral start

1шт.

46

L112595

WASHER

- special, spacer

1шт.

47

129-16

NUT,#8-32

2шт.

48

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

49

L114039

CLAMP

- harness

4шт.

50

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

51

H190488

SPACER

- clamp

2шт.

52

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

53

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

54

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

L36238

KIT

- electrical, includes terminals to adapt, Serial Range: harness-switches

1шт.
