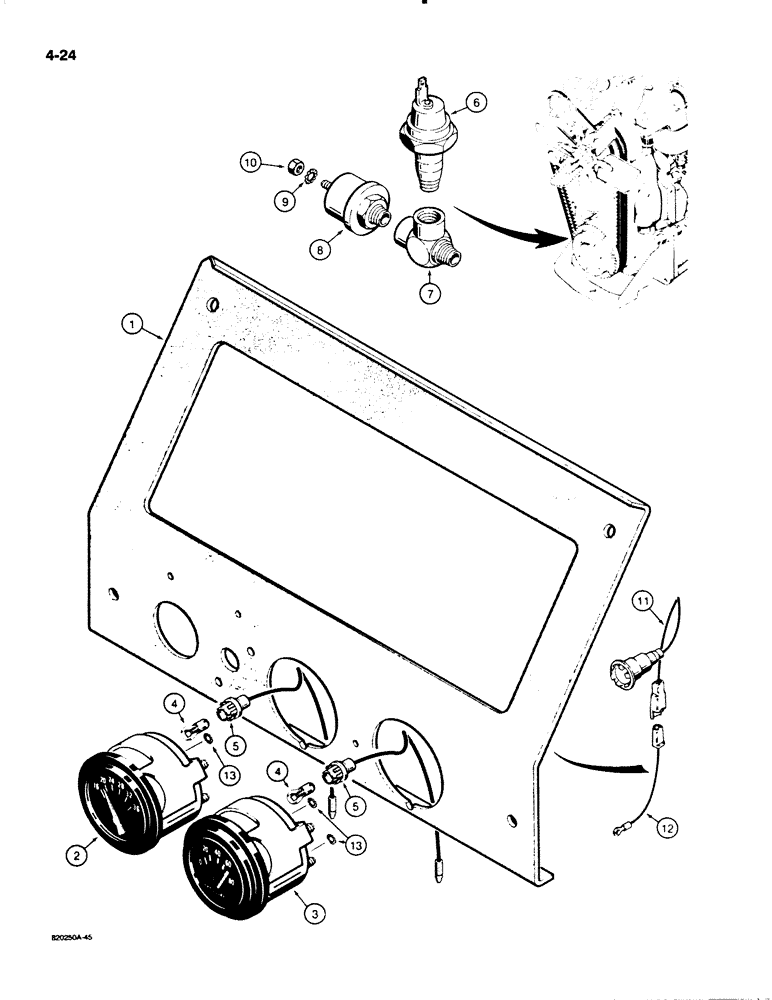

Запчасти Case W20C (4-024) - INSTRUMENT PANEL WITH OPTIONAL GAUGES (04) - ELECTRICAL SYSTEMS

1

L103975

PANEL

INSTRUMENT PANEL - left-hand, optional gauges, for other instrument panels see Figure 4-022

1шт.

2

L111876

GAUGE

- voltmeter

1шт.

3

L111875

DIPSTICK

GAUGE - oil pressure

1шт.

4

B50213

BULB

- gauge

2шт.

5

L107438

SOCKET

- lamp, W18B

2шт.

5

L107438

SOCKET

- lamp, W20C, Serial Range: -9155766

2шт.

6

REF

INSTRUCTION

SENDER - engine oil pressure, see Figure 2-22

1шт.

7

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- engine oil pressure sender

1шт.

8

W10140

TRANSMITTER

SENDER - engine oil pressure

1шт.

9

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

10

129-27

NUT,Hex, #10 - 32

- hex, No. 10 - 32 NF

1шт.

11

L114518

SOCKET

- lamp,W20C 9155766 to

2шт.

12

L114727

HARNESS

WIRE - jumper, W20C 9155766 to

2шт.

13

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

3шт.
