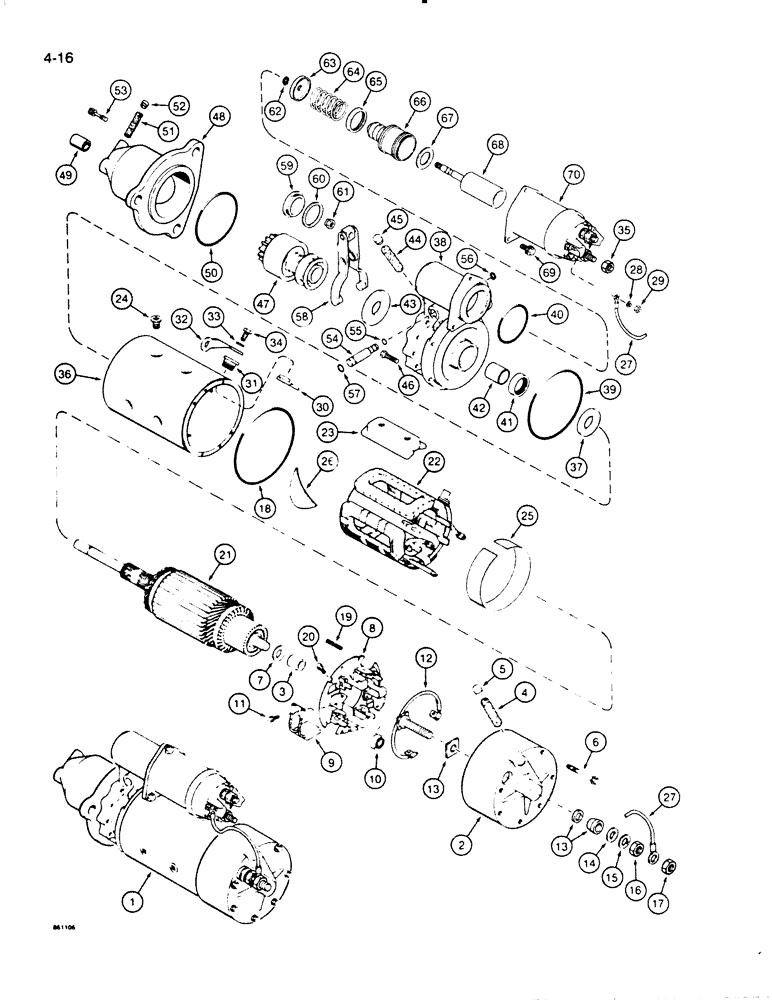

Запчасти Case W20C (4-016) - STARTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L118276
STARTING MOTOR
STARTER ASSEMBLY - new, 24 volt (Delco - Remy No. 199797), Includes: Ref. 1 - 70
1шт.
1
87454648
REMAN-STARTER
Remanufactured STARTER - For N.A. Only
1шт.
1
87454649
CORE-STARTER
Return Number, STARTER - For N.A. Only
1шт.
2
A187510
HOUSING
SPARE PART FRAME ASSEMBLY - commutator end, Includes: Ref. 3 - 5
1шт.
3
A40868
BUSHING
BUSHING - frame, commutator
1шт.
Part of Bushing Kit, P/N A187514
1шт.
4
A49769
WICK
WICK - oil
1шт.
Part of Bushing Kit, P/N A187514
1шт.
5
A49573
PLUG
PLUG - oil wick, lever housing
1шт.
Part of Bushing Kit, P/N A187514
1шт.
6
A187511
CAPTIVE WASHER SCREW
BOLT ASSEMBLY - commutator frame
6шт.
Part of Bushing Kit, P/N A187514
1шт.
7
195-2056
WASHER,5/8" x 1" x .065"
WASHER - flat, 9/16 x 1 x 1/16 inch
1шт.
Part of Bushing Kit, P/N A187514
1шт.
8
A49778
BRUSH ASSY.
BRUSH ASSEMBLY - starter, Includes: Ref. 9 - 11
1шт.
9
A49777
COMMUTATOR BRUSH
BRUSH - starter
4шт.
10
A49575
SPRING
SPRING - brush
4шт.
11
A47894
SCREW,#8 - 32 x 5/16"
SCREW - brush retainer
4шт.
12
A49764
TERMINAL CONNECTOR
BOLT - terminal, lead
1шт.
13
A49768
KIT
INSULATOR KIT - terminal
1шт.
14
195-2067
WASHER,33/64" x 7/8" x .065"
WASHER - flat, 33/64 x 7/8 x 1/16 inch
1шт.
15
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
16
425-148
JAM NUT,Jam, 1/2"-13, G5
NUT - hex, jam, 1/2 inch NC
1шт.
17
A47890
NUT
NUT - flange type, 1/2 inch NC
1шт.
18
A49749
O-RING,4.737" ID x 4.943" OD
O-RING - frame
1шт.
Part of Bushing Kit, P/N A187514
1шт.
19
A49753
PIN, SPLIT (COTTER)
PIN, COTTER ROLL PIN - locating
2шт.
20
A47894
SCREW,#8 - 32 x 5/16"
SCREW - brush retainer
4шт.
21
A49770
ARMATURE
ARMATURE - starter
1шт.
22
A49776
COIL ASSY.
COIL ASSEMBLY - field
1шт.
23
R15115
SHOE
SHOE - pole
4шт.
24
A42127
SCREW,3/8" - 24 x 0.20"
SCREW - machine, flat head Phillips, 3/8 NF x 13/20 inch
8шт.
25
A49767
RUBBER INSULATOR
INSULATOR - terminal, field coil
1шт.
26
A41977
RUBBER INSULATOR
INSULATION - coil end
2шт.
27
A47895
ELECTRICAL WIRE
WIRE LEAD - wire
1шт.
28
492-11010
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
29
129-667
NUT,#10-32, LH
NUT, , Chamferred #10-32, LH
1шт.
30
A49501
RUBBER INSULATOR
INSULATOR - inner, field terminal
1шт.
31
A49500
RUBBER INSULATOR
INSULATOR - outer, terminal
1шт.
32
A49779
TERMINAL CONNECTOR
CONNECTOR - terminal, Serial Range: field-solenoid
1шт.
33
A42100
WASHER
WASHER - flat, field terminal
1шт.
34
A49751
BOLT,Hex, 1/4" - 20 x 9/16"
SCREW - connector, field terminal
1шт.
35
A47890
NUT
NUT - flange type, 1/2 inch NC
1шт.
36
NSS
NOT SOLD SEPARAT
FRAME - field, order L118276 starter assembly
1шт.
37
A40892
WASHER
WASHER - thrust, armature center
1шт.
Part of Bushing Kit, P/N A187514
1шт.
A187513
KIT
BRUSH KIT - starter (Includes items 6, 9, 11 and 18)
1шт.
A187514
KIT
KIT - bushing, Includes: ref. nos. 3, 4, 5, 6, 7, 18, 37, 39, 40, 41, 42, 43, 44, 45, 49, 50, 51, 52, 60 and 61on Figure 4-16 and 4-18
1шт.
REF
INSTRUCTION
STARTER ASSEMBLY - engine, continued
1шт.
A187512
HOUSING ASSY.
HOUSING ASSEMBLY - shift lever, Includes: Ref. 38 - 45
1шт.
38
NSS
NOT SOLD SEPARAT
HOUSING - shiftlever
1шт.
39
D31954
O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro
O-RING - housing, lever
1шт.
Part of Bushing Kit, P/N A187514
1шт.
40
238-5228
O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro
O-RING, -228, 70 Duro, 2.234" ID x .139" Thk
1шт.
Part of Bushing Kit, P/N A187514
1шт.
41
R21582
OIL SEAL
SEAL - oil, housing
1шт.
Part of Bushing Kit, P/N A187514
1шт.
42
A49765
BUSHING
BUSHING - armature, starter drive
1шт.
Part of Bushing Kit, P/N A187514
1шт.
43
A185121
WASHER
WASHER - brake, lever housing
1шт.
Part of Bushing Kit, P/N A187514
1шт.
44
A49567
WICK
WICK - oil, lever housing
1шт.
Part of Bushing Kit, P/N A187514
1шт.
45
A49573
PLUG
PLUG - oil wick, lever housing
1шт.
Part of Bushing Kit, P/N A187514
1шт.
46
414-416
BOLT,Hex, 1/4" - 28 x 1", Gr 5
BOLT - hex, 1/4 NF x 1 inch
5шт.
47
A47523
DRIVE
CLUTCH ASSEMBLY - drive, starter
1шт.
A49773
HOUSING
HOUSING ASSEMBLY - drive, Includes: Ref. 48 - 52
1шт.
48
NSS
NOT SOLD SEPARAT
HOUSING - drive end
1шт.
49
A47257
BUSHING
BUSHING - armature, housing
1шт.
Part of Bushing Kit, P/N A187514
1шт.
50
A43854
O-RING,3.237" ID x 0.106" THK
O-RING - housing, lever
1шт.
Part of Bushing Kit, P/N A187514
1шт.
51
A47888
WICK
WICK - oil, drive housing
1шт.
Part of Bushing Kit, P/N A187514
1шт.
52
A47989
SPRING
SPRING - brush tension
1шт.
Part of Bushing Kit, P/N A187514
1шт.
53
D32489
HEX SOC SCREW,5/16" - 18 x 0.86"
SCREW - drive housing
6шт.
54
A42199
PIN
SHAFT - shift lever
1шт.
55
A47259
O-RING,0.244" ID x 0.391" OD
O-RING - sealing, shaft
1шт.
56
G46146
SNAP RING,#37, Ext
Ring, Snap, , solenoid plunger #37, Ext
1шт.
57
A47258
O-RING,0.369" ID x 0.515" OD
O-RING - large, pivot stud
1шт.
58
A49775
LEVER
LEVER = shift
1шт.
59
R21587
PLUG
PLUG - inspection, lever housing
1шт.
60
A41924
GASKET
GASKET - plug
1шт.
Part of Bushing Kit, P/N A187514
1шт.
Part of Bushing Kit, P/N A187514
1шт.
62
G46146
SNAP RING,#37, Ext
Ring, Snap, , solenoid plunger #37, Ext
1шт.
63
A43419
SEAT
SEAT - outer, spring
1шт.
64
A41242
SPRING
SPRING - return, plunger
1шт.
65
A43380
BACK-UP RING
SEAT- spring, plunger
1шт.
66
A49589
BOOT
BOOT - plunger
1шт.
67
A41922
WASHER
WASHER - plunger seat
1шт.
68
A49757
PLUNGER
PLUNGER - solenoid
1шт.
69
A49587
CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"
SCREW ASSEMBLY - mounting, solenoid
3шт.
70
A49774
SWITCH
SOLENOID ASSEMBLY - starter
1шт.
A187515
KIT
SHIFT LEVER KIT - starter, Includes Ref 40, 50, 54-58, 60 and 61
1шт.
A187514
KIT
KIT - bushing, Includes: ref. nos. 3, 4, 5, 6, 7, 18, 37, 39, 40, 41, 42, 43, 44, 45, 49, 50, 51, 52, 60 and 61on Figure 4-16 and 4-18
1шт.
