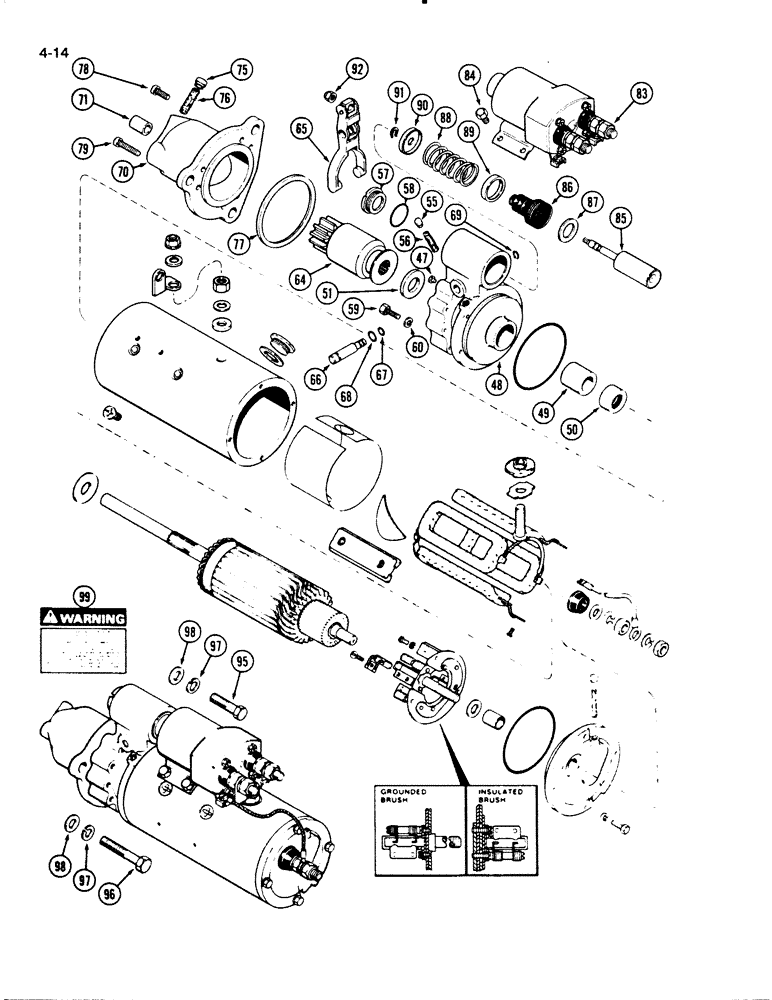

Запчасти Case W20C (4-014) - STARTER (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

STARTER ASSEMBLY - engine, continued

1шт.

47

A47897

PLUG

- lever housing, rubber

1шт.

48

A47896

HOUSING

ASSEMBLY - shift lever, Includes: Ref. 49 - 56

1шт.

49

A47261

BUSHING

- armature

1шт.

50

R21582

OIL SEAL

- oil, housing

1шт.

51

R15145

DISC

WASHER - brake

1шт.

55

A47889

PLUG

- housing

1шт.

56

A47888

WICK

- oil, drive housing

1шт.

57

R21587

PLUG

- inspection, lever housing

1шт.

58

A41924

GASKET

- plug

1шт.

59

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

- hex, 1/4 NF x 1 inch

5шт.

60

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

64

A47523

DRIVE

CLUTCH ASSEMBLY - drive, starter

1шт.

65

D32547

LEVER

- shifter

1шт.

66

A42199

PIN

SHAFT - shift lever

1шт.

67

A47259

O-RING,0.244" ID x 0.391" OD

- sealing, shaft

1шт.

68

A47258

O-RING,0.369" ID x 0.515" OD

- large, pivot stud

1шт.

69

G46146

SNAP RING,#37, Ext

Ring, Snap, , solenoid plunger #37, Ext

1шт.

70

A47898

HOUSING

ASSEMBLY - drive end, Includes: Ref. 71 - 76

1шт.

71

A47257

BUSHING

- armature, housing

1шт.

75

A47889

PLUG

- housing

1шт.

76

A47888

WICK

- oil, drive housing

1шт.

77

R21562

GASKET

- drive end to shifter housing

1шт.

78

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing

1шт.

79

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - housing

5шт.

83

A47899

SOLENOID SWITCH

SOLENOID ASSEMBLY - service as complete assembly

1шт.

84

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- serrated hex head, 1/4 NC x 3/8 inch

4шт.

85

A42309

PLUNGER

- solenoid

1шт.

86

A42308

BOOT

- plunger

1шт.

87

A41922

WASHER

- plunger seat

1шт.

88

A41242

SPRING

- return, plunger

1шт.

89

A43380

BACK-UP RING

SEAT- spring, plunger

1шт.

90

A43419

SEAT

- outer, spring

1шт.

91

G46146

SNAP RING,#37, Ext

Ring, Snap, , solenoid plunger #37, Ext

1шт.

92

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking, 5/16 inch NF

1шт.

95

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

96

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

1шт.

97

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

98

L30674

WASHER

- hardened

3шт.

99

321-3709

DECAL

- warning, starting

1шт.
