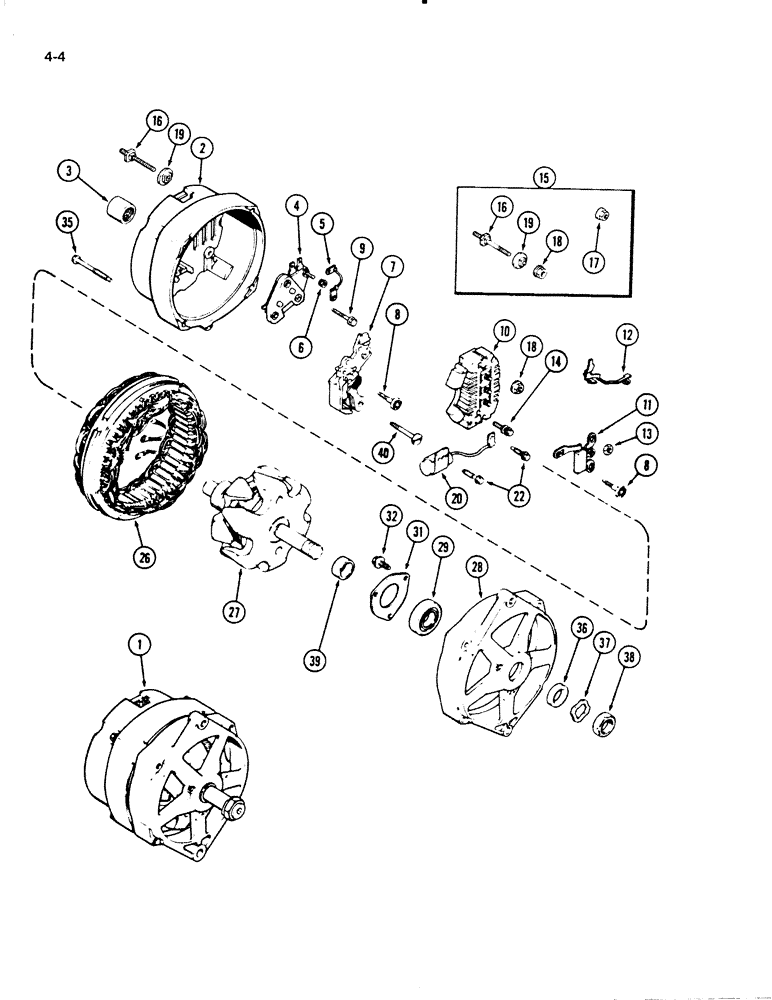

Запчасти Case W20C (4-004) - ALTERNATOR, 40 AMPERE - 24 VOLT (04) - ELECTRICAL SYSTEMS

1

A167152

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, Delco-Remy No. 1105510, Includes: Ref. 2 - 40

1шт.

1

104260A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 24 volt 40 ampere,

1шт.

1

104260A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A47595

FRAME

FRAME ASSEMBLY - slip ring end, Includes: Ref. 3

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING - frame

1шт.

4

A46890

REGULATOR

REGULATOR - voltage (Replaces A45372)

1шт.

5

A45369

ELECTRICAL WIRE

WIRE LEAD -, Serial Range: stud-bridge

1шт.

6

A45368

NUT

NUT - terminal

1шт.

7

A47042

HOLDER

HOLDER ASSEMBLY - with brushes)

1шт.

8

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

2шт.

9

A47581

SCREW,#8 - 32 x 1.43"

SCREW - brush holder, retaining (Grounded)

1шт.

10

A46942

ELEC CONNECTOR

RECTIFIER BRIDGE - alternator

1шт.

11

A48339

DIODE

DIODE - trio

1шт.

12

A46931

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

13

129-16

NUT,#8-32

NUT, #8-32

3шт.

14

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - bridge retaining

1шт.

15

A47597

TERMINAL CONNECTOR

TERMINAL KIT - battery, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

17

NSS

NOT SOLD SEPARAT

INSULATOR - terminal stud

1шт.

18

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - outer

1шт.

19

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - inner

1шт.

20

A47734

CAPACITOR

CAPACITOR - alternator

1шт.

22

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor bracket

2шт.

26

A49388

STATOR

STATOR ASSEMBLY - alternator (Replaces A46944)

1шт.

27

A46945

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

28

A49174

CAP

FRAME - drive end (Replaces A46933)

1шт.

29

A49389

BEARING ASSY

BEARING - ball, drive end (Replaces A47579)

1шт.

31

R15101

PLATE

PLATE - bearing retainer

1шт.

32

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW - bearing plate retaining

3шт.

35

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

SCREW - machine, hex head, No. 10 NC x 1-3/4 inch

4шт.

36

A47580

COLLAR

COLLAR - rotor shaft

1шт.

37

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

38

A25546

NUT

NUT - pulley and fan retaining

1шт.

39

A48261

COLLAR

COLLAR - rotor shaft, inner

1шт.

40

A47043

SCREW,#8 - 32 x 21"

SCREW - brush holder grounded

1шт.
