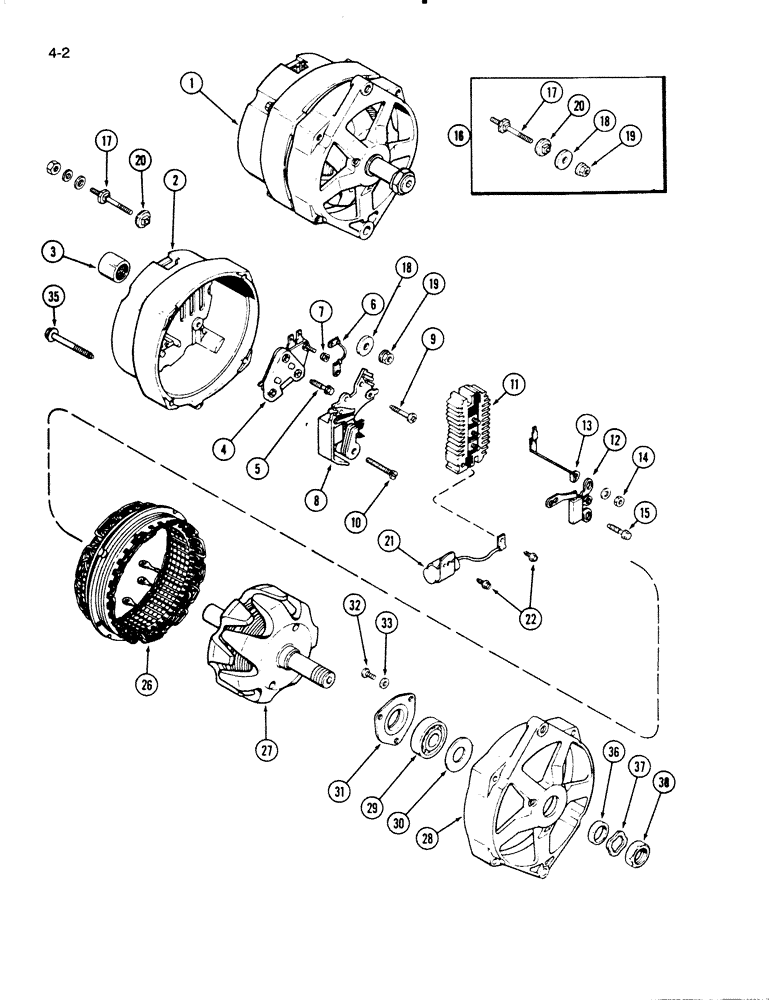

Запчасти Case W20C (4-002) - ALTERNATOR, 40 AMPERE - 24 VOLT, METRIC EXTERNAL THREADS (04) - ELECTRICAL SYSTEMS

A47484

ALTERNATOR

ASSEMBLY - remanufactured (North America only)

1шт.

A47485

CORE-ALTERNATOR

RETURN NUMBER - use this part number to return alternator core for credit

1шт.

1

L101465

ALTERNATOR

ASSEMBLY - engine, new (Delco-Remy No. 1103123) (without fan and pulley), Includes: Ref. 2 -38

1шт.

2

A47595

FRAME

ASSEMBLY - slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING - frame

1шт.

4

A46890

REGULATOR

- voltage (Replaces A45372)

1шт.

5

A47043

SCREW,#8 - 32 x 21"

- brush holder grounded

1шт.

6

A45369

ELECTRICAL WIRE

LEAD -, Serial Range: stud-bridge

1шт.

7

A45368

NUT

- terminal

1шт.

8

A47042

HOLDER

ASSEMBLY - brush, with brushes

1шт.

9

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

- brush holder, insulated

2шт.

10

A47581

SCREW,#8 - 32 x 1.43"

- brush holder, retaining (Grounded)

1шт.

11

A45394

RECTIFIER

BRIDGE ASSEMBLY - rectifier

1шт.

12

A48339

DIODE

- trio (Replaces A45219)

1шт.

13

A47045

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

14

129-16

NUT,#8-32

3шт.

15

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

- bridge retaining, Includes: Ref. 16 - 20

1шт.

16

A47597

TERMINAL CONNECTOR

TERMINAL KIT - battery

1шт.

17

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

18

NSS

NOT SOLD SEPARAT

INSULATOR - terminal stud

1шт.

19

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - outer

1шт.

20

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - inner

1шт.

21

A47734

CAPACITOR

- alternator

1шт.

22

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor bracket

2шт.

26

A47048

ARMATURE

STATOR ASSEMBLY - alternator

1шт.

27

A47050

TORQ CONV IMPELLER

ROTOR ASSEMBLY - alternator

1шт.

28

A47596

FRAME

- drive end

1шт.

29

A49389

BEARING ASSY

BEARING - ball, drive end (Replaces A47579)

1шт.

30

A45232

WASHER

SLINGER - grease

1шт.

31

A44433

PLATE

- ball bearing retainer

1шт.

32

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- machine, round head slotted, No. 10 NC x 3/8 inch

3шт.

33

195-512

WASHER,#10

- flat, 7/32 x 7/16 x 3/64 inch

3шт.

35

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

- machine, hex head, No. 10 NC x 1-3/4 inch

4шт.

36

A47580

COLLAR

- rotor shaft

1шт.

37

R16171

SPRING WASHER

- lock, pulley nut

1шт.

38

A25546

NUT

- pulley and fan retaining

1шт.
