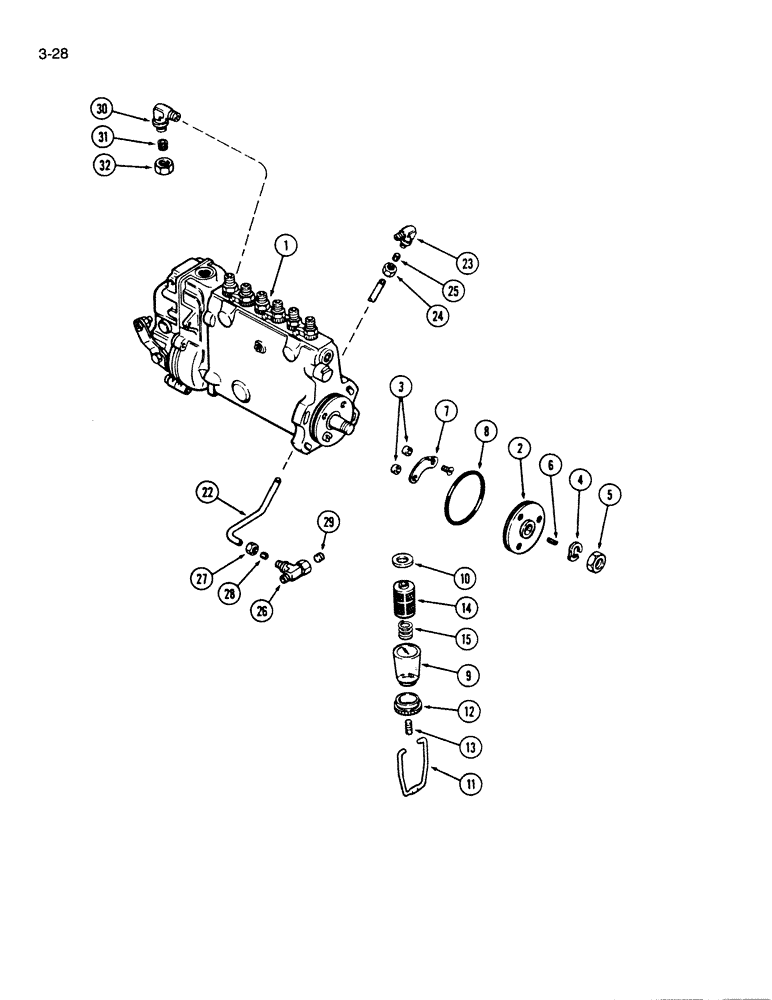

Запчасти Case W20C (3-28) - FUEL INJECTION PUMP, 504BD AND 504BDT ENGINE (03) - FUEL SYSTEM

1

A166258

PUMP

ASSEMBLY - fuel injection, 504BD engine, Includes: Ref. 2 - 15

1шт.

Pump equipped with pull-type throttle lever.

1шт.

Use L114527 accelerator cable.

1шт.

1

A166022

PUMP

ASSEMBLY - fuel injection, 504BD engine, Includes: Ref. 2 - 15

1шт.

Pump equipped with push-type throttle lever.

1шт.

1

A166259

PUMP

ASSEMBLY - fuel injection, 504BDT engine, Includes: Ref. 2 - 15

1шт.

Pump equipped with pull-type throttle lever.

1шт.

Use L114527 accelerator cable.

1шт.

1

A166070

PUMP

ASSEMBLY - fuel injection, 504BDT engine, Includes: Ref. 2 - 15

1шт.

Pump equipped with push-type throttle lever.

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

RETAINER - lock washer

1шт.

5

A42313

NUT

- hub retaining

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - timing

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- seal

1шт.

9

A43347

BOWL

- glass

1шт.

10

A43346

GASKET

- bowl

1шт.

11

A43350

CLAMP

HANGER - bowl

1шт.

12

A43348

NUT

SEAT - bowl

1шт.

13

A43349

STUD

- bowl

1шт.

14

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

15

A43345

SPRING

- element

1шт.

22

A136903

TUBE

-, Serial Range: pump-block

1шт.

23

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, compression, 1/4 tube OD x 1/8 inch PT, Includes: Ref. 24 & 25

1шт.

24

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

- compression, 1/4 tube OD x 1/8 inch fem PT x PT, Includes: Ref. 27 & 28

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch

1шт.

28

222-102

SLEEVE,1/4" Tube

1шт.

29

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

30

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 90 degree, compression, 3/8 tube OD x 1/4 inch PT, Includes: Ref. 31 & 32

1шт.

31

222-104

SLEEVE,3/8" Tube

- 3/8 inch tube OD

1шт.

32

222-114

NUT,5/8"-24

NUT - hex, 3/8 tube OD x 5/8-24 inch

1шт.
