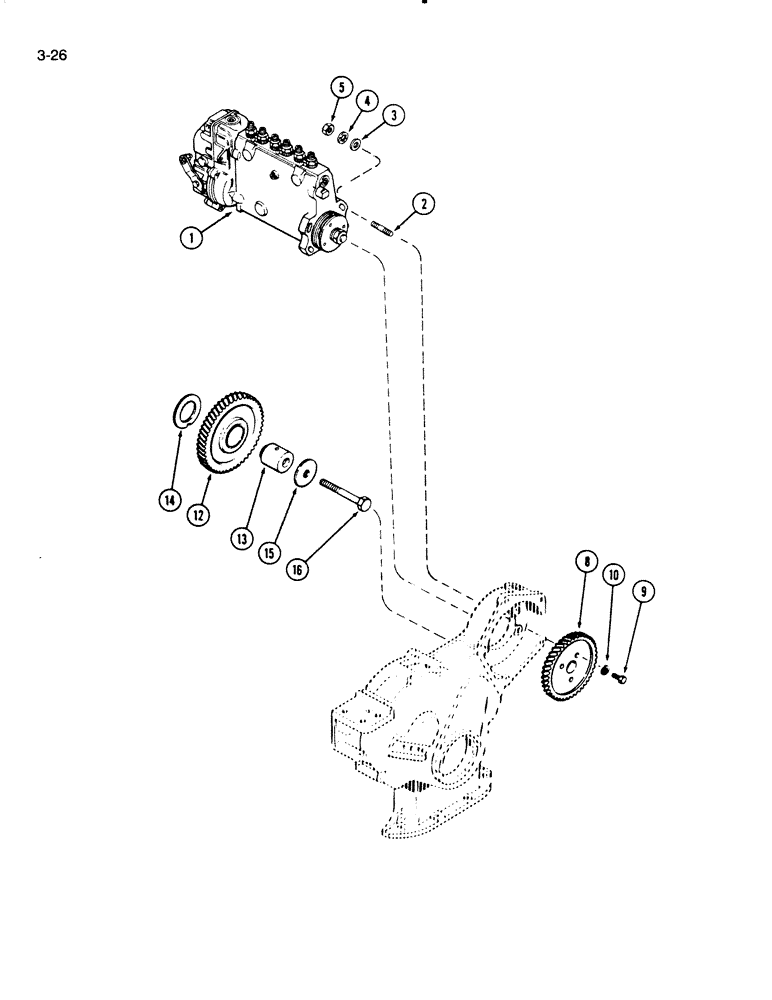

Запчасти Case W20C (3-26) - INJECTION PUMP DRIVE, 504BD AND 504BDT ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel iniection (See Figure 3-28)

1шт.

2

A59077

STUD

- pump mounting, 3/8 NC x 1-15/16 inch

3шт.

2

A142092

STUD

- drilled, 3/8 NC x 1-7/8 inch (Hole for anti-tamper wire)

3шт.

3

A57470

WASHER

- stud

4шт.

4

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Used w/ A59077 stud) 3/8"-16, G5

3шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

NUT - hex jam, 3/8 inch NC (Used with A142092 stud)

1шт.

8

A58693

GEAR

- injection pump drive

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

10

492-11038

LOCK WASHER,3/8"

3шт.

12

A62542

GEAR

ASSEMBLY - idler (With bushing)

1шт.

13

A58690

SHAFT

- idler gear

1шт.

14

A58691

WASHER

- thrust

1шт.

15

A58692

PLATE

- thrust

1шт.

16

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/4 inch

1шт.
