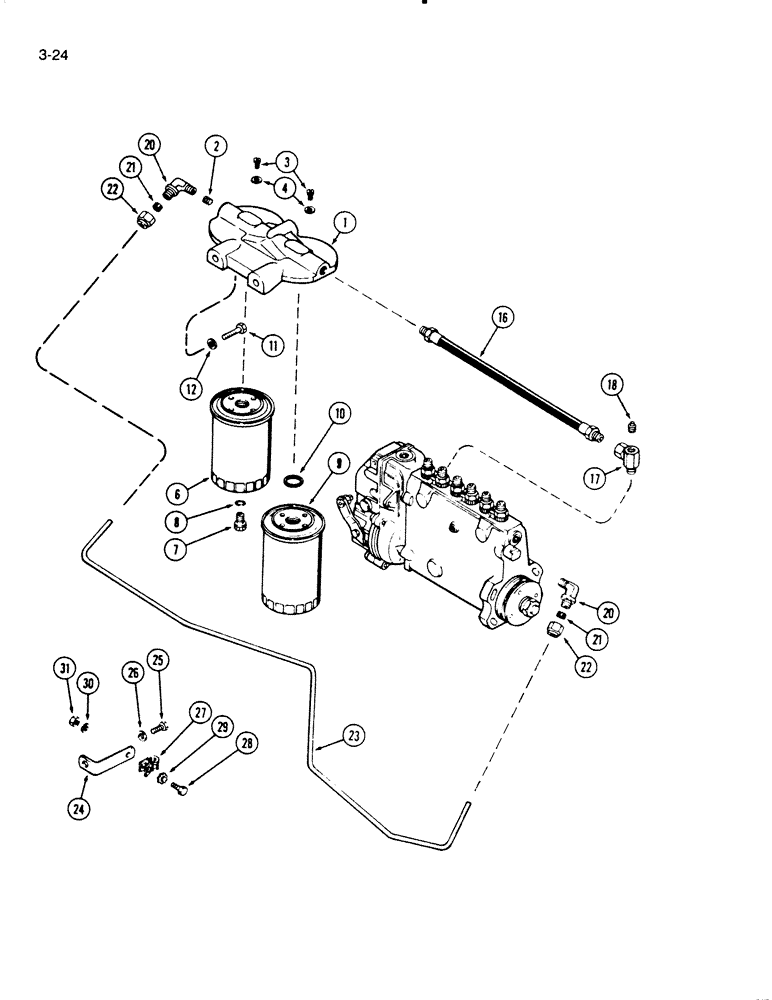

Запчасти Case W20C (3-24) - FUEL FILTER SYSTEM, 504BD AND 504BDT ENGINE (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - fueL fiiter, Includes: Ref. 2

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

4

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw

2шт.

A44068

FUEL FILTER

KIT - filter element replacement, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - first stage (Order A44068), Includes: Ref. 7 & 8

1шт.

7

G49080

PLUG

- 3/8 inch NF plastic

1шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - second stage (Order A44068), Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET - filter to head (Order A44068) (See Note)

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

16

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter head to pump, 16 inch long

1шт.

17

A20539

FITTING

UNION - switch, Serial Range: hose-pump

1шт.

18

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square, 1/8 inch PT

1шт.

20

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 90 degree, compression, 5/16 tube OD x 1/4 inch PT, Includes: Ref. 21 & 22

2шт.

21

222-103

SLEEVE,5/16" Tube

1шт.

22

222-113

TUBE NUT,9/16"-24

NUT - hex, 5/16 tube OD x 9/16-24 inch

1шт.

23

A157329

TUBE

- pump to filter head

1шт.

24

A64856

BRACKET

- tube

1шт.

25

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube retaining

1шт.

28

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

29

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

1шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

31

25-104

NUT,1/4"-20, G5

1шт.
