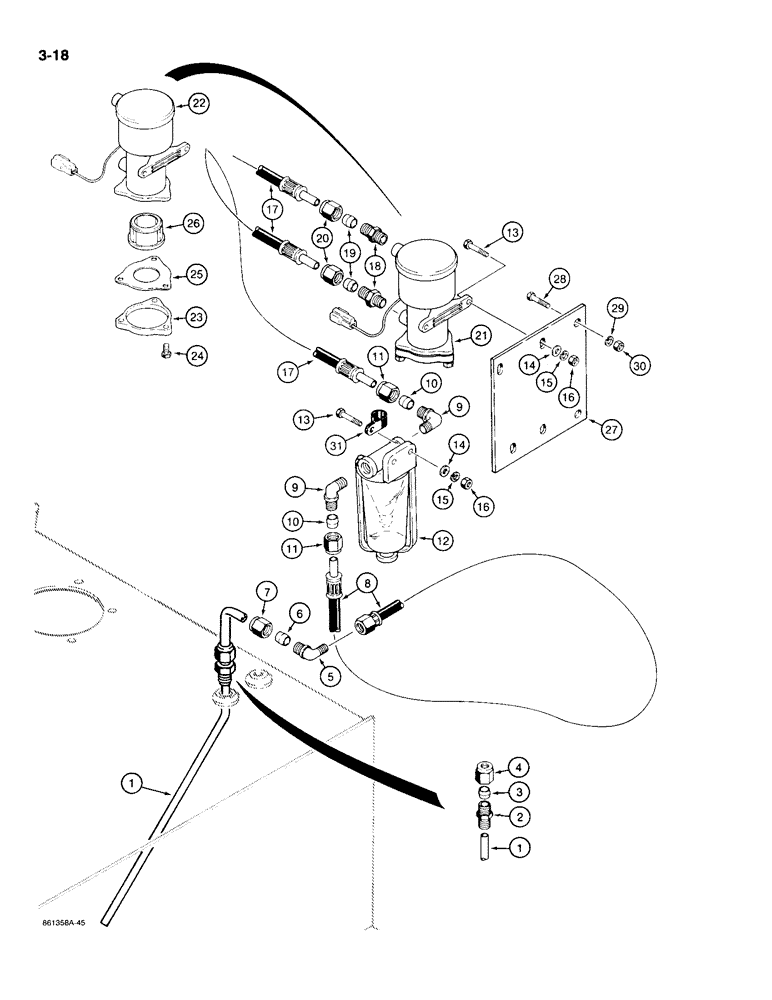

Запчасти Case W20C (3-18) - FUEL LINES, MODELS WITH ELECTRIC FUEL PUMP, USED ON W20C P.I.N. 9158874 AND AFTER (03) - FUEL SYSTEM

L114549

FUEL TUBE,0.375" OD

TUBE ASSEMBLY - fuel intake, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - intake

1шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

ASSEMBLY - straight, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

- fitting

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - fitting

1шт.

222-134

ELBOW,90 Degree, 5/8"-24

- 90 degree, compression fitting, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

6

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

7

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

8

L47879

HOSE

- to sediment bowl, 22" (559 mm) long

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 90 degree, compression fitting, Includes: Ref. 9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

10

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

11

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

12

R18798

STRAINER ELEMENT

SEDIMENT BOWL - fuel, parts list Figure 3-12

1шт.

13

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

14

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

17

L54260

HOSE

- fuel supply, 13-1/2" (343 mm) long

2шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

FITTING - compression, straight, Includes: Ref. 18 - 20

2шт.

18

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

19

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

20

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

21

L115545

PUMP

- fuel, electric, Includes: Ref. 22 - 26

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

23

NSS

NOT SOLD SEPARAT

COVER - inlet

1шт.

24

113-1003

SCREW,Hex, #10 - 24 x 3/4", Gr 5

3шт.

25

N9893

GASKET

- inlet cover

1шт.

26

N9892

FILTER, FUEL

FILTER - fuel

1шт.

27

L115691

PLATE

- pump mounting

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

31

49855

CLAMP

- hose

1шт.
