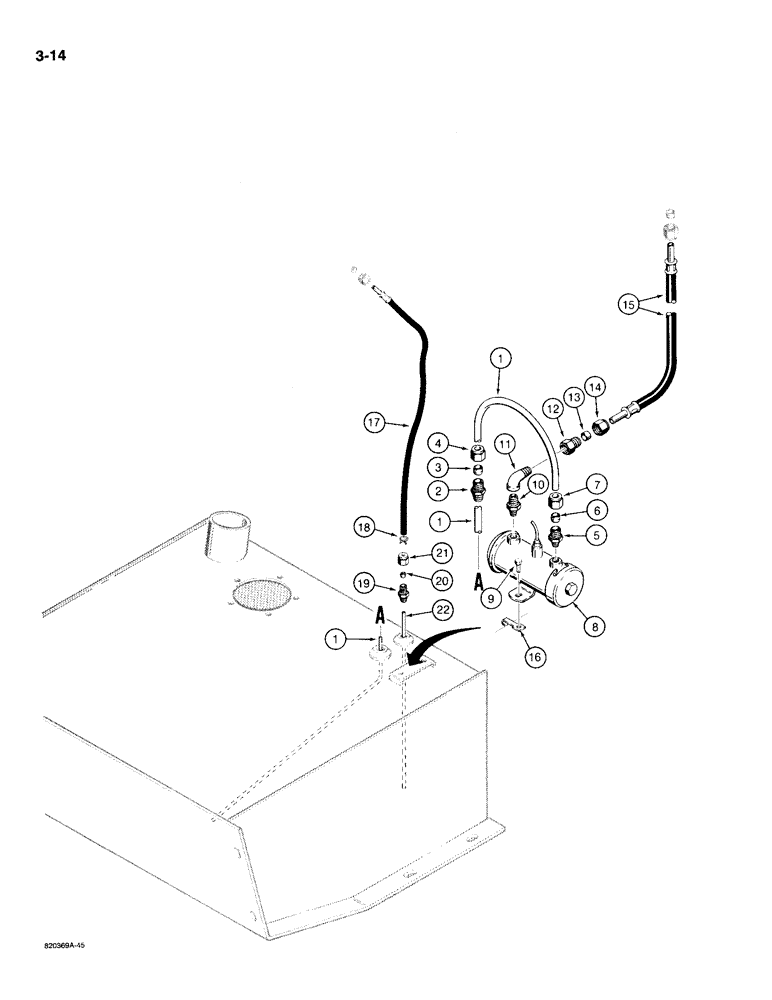

Запчасти Case W20C (3-14) - FUEL LINES, MODELS WITH ELECTRIC FUEL PUMP, USED ON W18B AND BEFORE W20C P.I.N. 9158874 (03) - FUEL SYSTEM

L109268

FUEL TUBE,0.375" OD

TUBE ASSEMBLY - fuel intake, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - intake

1шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

ASSEMBLY - straight, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

- fitting

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - fitting

1шт.

222-606

FITTING,9/16"-24 x 1/8" NPT, Comp

ASSEMBLY - straight, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

6

222-654

FERRULE,3/8" Tube, Comp

- fitting

1шт.

7

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - fitting

1шт.

8

L52634

PUMP

- fuel, parts list Figure 3-16

1шт.

9

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

10

217-60

REDUCER,1/4" - 18 NPT x 1/8" - 27 NPT

NIPPLE - pipe, reducing

1шт.

11

221-412

ELBOW,90 Degree, 1/4"-27, NPT

STREET ELBOW - 90 degree

1шт.

222-14

FITTING,5/8"-24 Inv Fl x 1/4" NPT Fem

ASSEMBLY - female, tube, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

13

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

14

222-114

NUT,5/8"-24

NUT - fitting

1шт.

15

L47879

HOSE

- 22" (559 mm) long

1шт.

16

131-630

SPRING NUT,Tinn, U, 1/4"-20

CLIP - U-type

1шт.

17

L48042

HOSE

- fuel return

1шт.

18

214-101

HOSE CLAMP,#6, 3/8", Spring

CLAMP - fuel line

1шт.

222-639

FITTING,7/16"-24 x 1/4" NPT, Comp

ASSEMBLY - tube, fuel return, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

20

222-102

SLEEVE,1/4" Tube

1шт.

21

87017024

TUBE NUT,1/2"-24

NUT - fitting

1шт.

22

L48035

FUEL TUBE

TUBE - fuel return

1шт.
