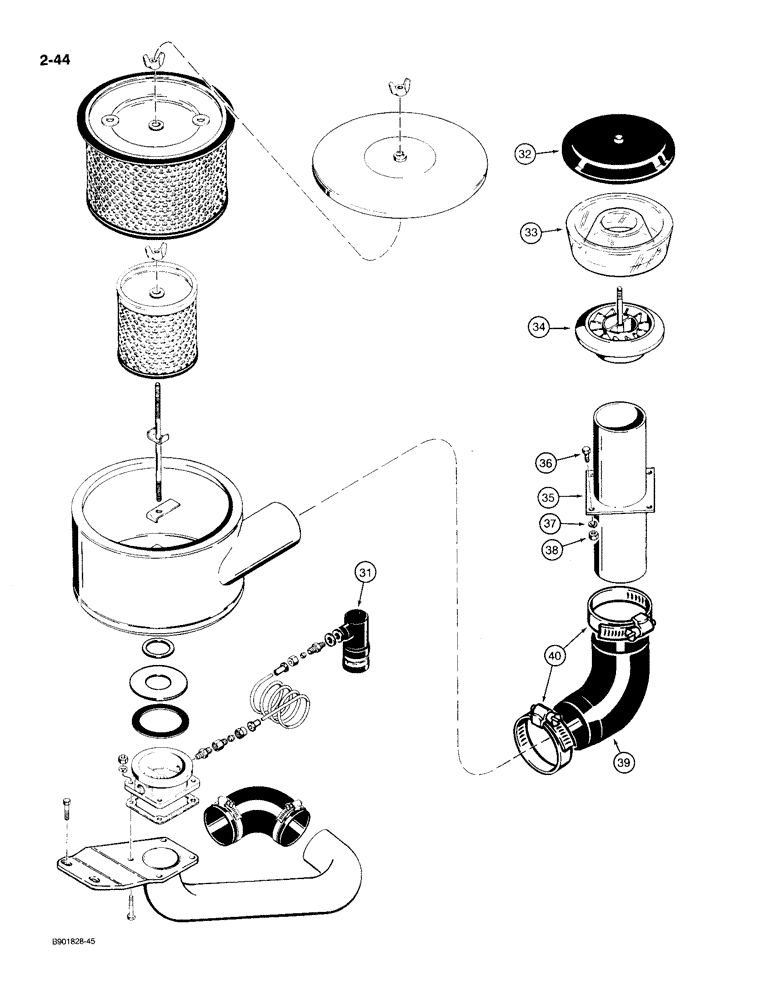

Запчасти Case W20C (2-44) - AIR CLEANER AND MOUNTING (02) - ENGINE

31

A17652

ELECTRICAL GAUGE

RESTRICTION INDICATOR - air cleaner filter

1шт.

A43616

FILTER

PRECLEANER ASSEMBLY - air cleaner, Includes: Ref. 32 - 34

1шт.

32

A42281

COVER

- precleaner

1шт.

33

A42283

SPARE PART

BOWL - precleaner

1шт.

34

NSS

NOT SOLD SEPARAT

BASE - precleaner

1шт.

35

L73231

EXTENSION

- precleaner

1шт.

36

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

39

L113722

ELBOW

HOSE - 90 degree, precleaner

1шт.

40

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose

2шт.
