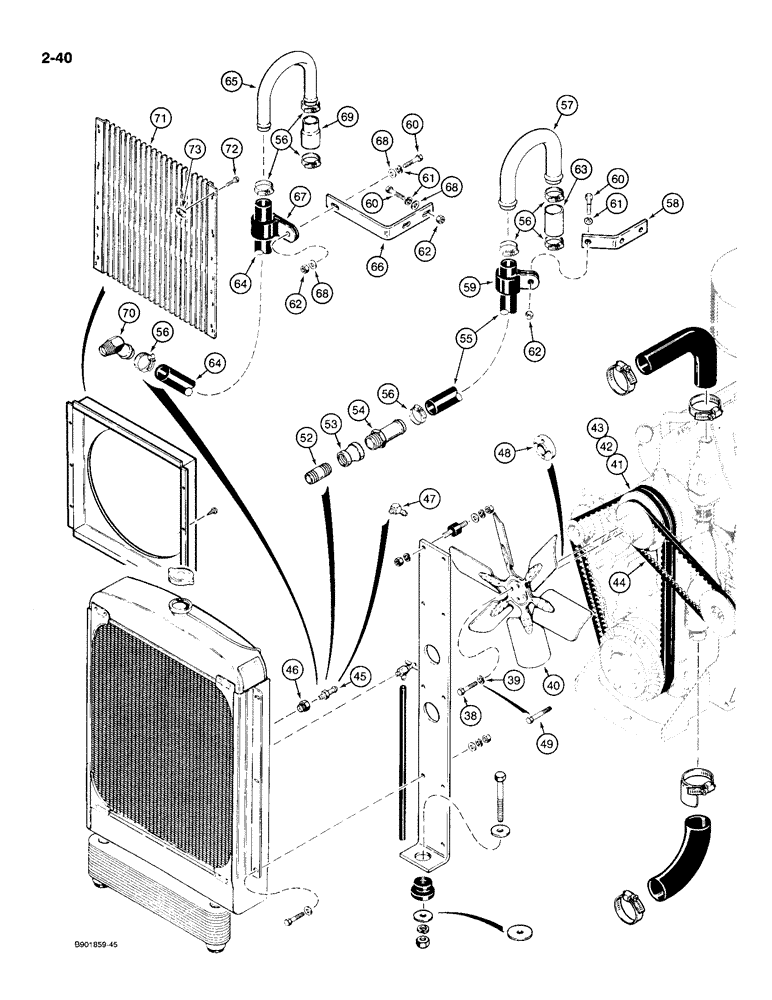

Запчасти Case W20C (2-40) - RADIATOR, FAN AND FAN BELTS (02) - ENGINE

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

A172891

FAN

PUSHER FAN - engine

1шт.

Do not use a suction fan as it may cause cooling system to overheat and damage hydraulics.

1шт.

41

A59296

SET OF BELTS,0.69" W x 60.00" L

SET OF 2 BELTS , Fan and alternator drive, Use with 40 amp alternator 0.69" W x 60.00" L

1шт.

Description should read 40 and 45 amp alternator.

1шт.

42

L110293

SET OF BELTS,0.69" W x 63.50" L

Fan and alternator drive, Use with 65 amp alternator, Used on W20C before PIN 9155766 0.69" W x 63.50" L

1шт.

43

L71057

SET OF BELTS,0.69" W x 62.00" L

Fan and alternator drive, Use with 65 amp alternator, Used on W20C P.I.N. 9155766 and after 0.69" W x 62.00" L

1шт.

44

L112651

V-BELT,0.50" W x 48.00" L

Compressor drive 0.50" W x 48.00" L

1шт.

45

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

STEM FITTING - straight, if used

1шт.

46

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

- 3/4" x 1/2" NPT, if used

1шт.

47

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

STEM FITTING - 45 degree, used with air conditioner only

1шт.

48

A58745

SPACER

- fan, used with air conditioner only

1шт.

49

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", used with A58745 spacer, item 48

4шт.

50

L60360

HOSE

- 5/8" (16 mm) ID x 43" (1092 mm) long, used with air conditioner only, not shown

1шт.

51

51200320

CLAMP

- hose, used with air conditioner only, not shown

1шт.

52

221-1211

FITTING

NIPPLE - 3/4" NPT x 1-3/8", used with turbocharger

1шт.

53

221-1354

CAP

REDUCER - 1" x 3/4" NPT, used with turbocharger

1шт.

54

217-161

FITTING,1-1/4" Hose Barb x 1" Male NPTF

STEM FITTING - straight, used with turbocharger

1шт.

55

L76902

RADIATOR HOSE,1.25" ID x 34.50", SAE 20R1 Class B

Used with Air Conditioner and Turbocharger 1.25" ID x 34.50", SAE 20R1 Class B

1шт.

56

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

57

L106383

TUBE,31.75 mm OD x 127.6, 127 mm L

- engine oil cooler, used with turbocharger, 1-1/4" OD

1шт.

58

L107382

BRACKET

- tube, used with 1-1/4" OD tube, item 57

1шт.

59

R13931

CLAMP

- 1-1/4" tube

1шт.

60

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

61

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

62

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

63

A58640

HOSE

- 1-1/4" (32 mm) x 2-13/32" (61 mm) long

1шт.

64

REF

INSTRUCTION

HOSE - 1" (25 mm) ID x 48" (1219 mm) long, cut from L76517 hose, see below, used with air conditioner and turbocharger

1шт.

65

L115190

TUBE,1" OD x 5.02, 5" L

- engine oil cooler, used with turbocharger, 1" OD

1шт.

66

L116385

BRACKET

- tube, used with 1" OD tube, item 65

1шт.

67

R50045

CLAMP

- 1" OD tube

1шт.

68

195-104

WASHER,3/8"

- flat, , plated 3/8"

4шт.

69

A64353

HOSE

- special, reducer

1шт.

70

217-188

FITTING,45 Degree Elbow, 1" Hose Barb x 3/4" Male NPTF

STEM FITTING - 45 degree, for 1" ID hose, item 64

1шт.

L36313

GUARD ASSY.

KIT - antisandblast guard, Includes: Ref. 71 - 73 & 8-32690 instruction sheet

1шт.

71

L123609

GUARD

- antisandblast

1шт.

72

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

8шт.

73

131-132

SPRING NUT,Tinn, U, 1/4"-20

- U-type, 1/4 inch NC

8шт.

L76517

LARGE HOSE

HOSE - 1" (25 mm) ID x 104" (2642 mm) long

1шт.
