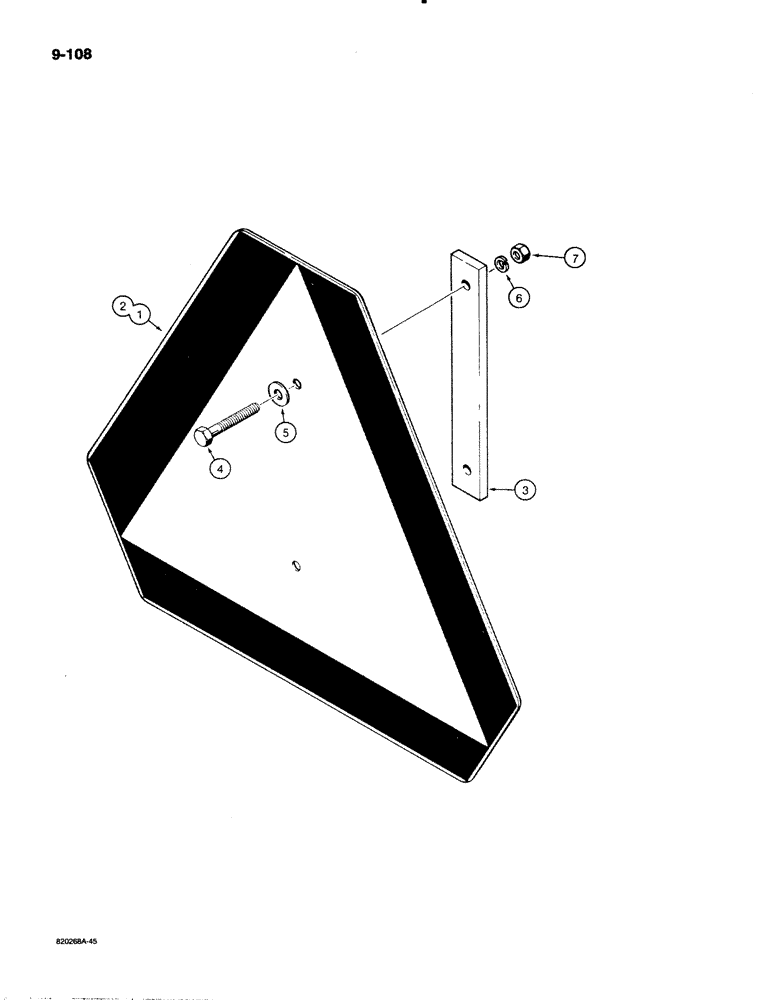

Запчасти Case W20C (9-108) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

A59450

WARNING SIGN

EMBLEM - slow moving vehicle, plate and decal

1шт.

When replacing SMV emblem, the mounting bracket and hardware supplied with A59450 must be discarded and replaced by items 3 through 7.

1шт.

1

321-4311

DECAL

- slow moving vehicle emblem

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - SMV emblem, includes mounting bracket and hardware

1шт.

3

L100568

PLATE

BRACKET - mounting, emblem to rear frame

1шт.

4

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

5

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

25-104

NUT,1/4"-20, G5

2шт.
