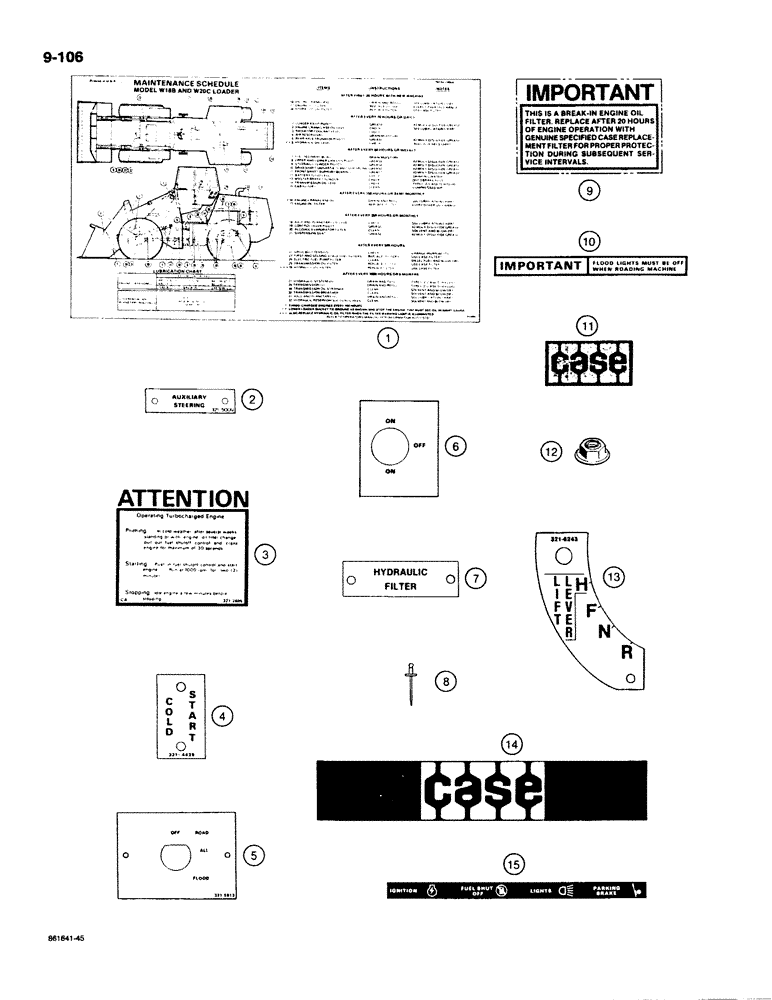

Запчасти Case W20C (9-106) - DECALS, FOR TAN OR YELLOW TRACTORS (09) - CHASSIS/ATTACHMENTS

1

L109629

TAG

PLATE - Maintenance Schedule

1шт.

2

321-5009

DECAL

PLATE - decal, Auxiliary Steering, if used

1шт.

3

321-2605

DECAL

- Attention, operating turbocharged engine

1шт.

4

321-4425

DECAL

PLATE - decal, cold start

1шт.

5

321-5913

DECAL

PLATE - decal, Off-Road-All-Flood switch

1шт.

6

321-6037

DECAL

PLATE - decal, On-Off-On

1шт.

7

321-6313

DECAL

PLATE - decal, hydraulic filter

1шт.

8

151-525

RIVET,Pop, 1/8" x .275"

POP RIVET - used to fasten appropriate decals

1шт.

9

321-3863

DECAL

- Important, this is a break-in engine oil filter

1шт.

10

321-4632

DECAL

- Important, flood lamps must be off

1шт.

11

321-4739

EMBLEM

- Case

1шт.

12

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - special, push on, emblem retaining

2шт.

13

321-6243

DECAL

- transmission control, if used

1шт.

14

L57685

DECAL

- case, instrument panel

1шт.

15

321-2613

DECAL

- instrument panel

1шт.
