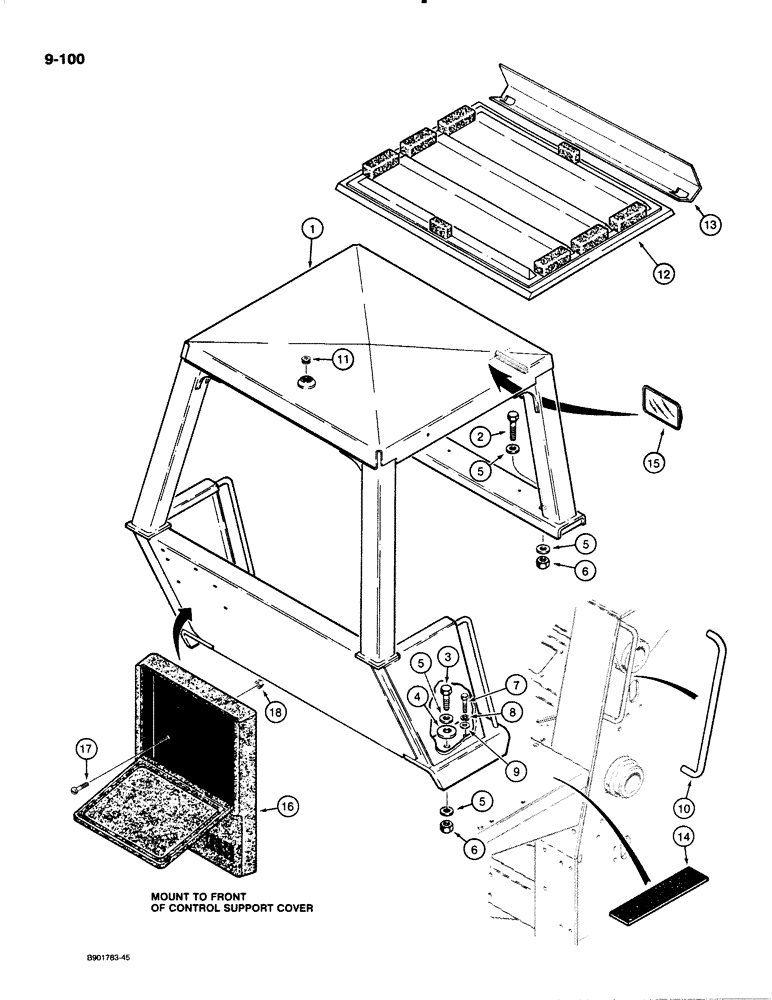

Запчасти Case W20C (9-100) - CANOPY (09) - CHASSIS/ATTACHMENTS

1

L118291

ROPS

CANOPY - ROPS, machinery item, order from Machinery Price List

1шт.

2

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

- hex, 3/4 NC x 3-3/4 inch, grade 8

2шт.

3

L114725

BOLT

- hex, special, rear of canopy to chassis frame

2шт.

4

L107918

WASHER,26.2mm ID x 70mm OD x 12.7mm Thk

- flat, hardened, special, rear mounting bolts only

2шт.

5

L79117

WASHER

- flat, special, front and rear mounting bolts

8шт.

6

129-572

NUT,3/4"-10, G8

4шт.

7

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

95-8

WASHER,1/2"

flat 1/2"

2шт.

10

L52012

HOLDER

HANDRAIL - ROPS, welded to front chassis frame

2шт.

11

221-846

PLUG,Hex Soc, 1"-11 1/2

- hex socket, 1 inch PT, if used

1шт.

12

L124307

ROOF

HEADLINER - canopy

1шт.

13

L124297

RETAINER

- headliner

2шт.

14

D55216

PAD,2" x 9"

STRIP - anti-skid

4шт.

15

L74714

MIRROR

- rear view, includes mounting hardware

1шт.

16

A177376

BOX

- operators manual, mounts to control support cover, item 35 on Figure 8-70 or item 37 on Figure 8-76

1шт.

17

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- machine, pan head slotted, 1/4 NC x 1/2 inch

3шт.

18

129-501

NUT,Crown, 1/4"-20

- dome, 1/4 inch NC

3шт.
