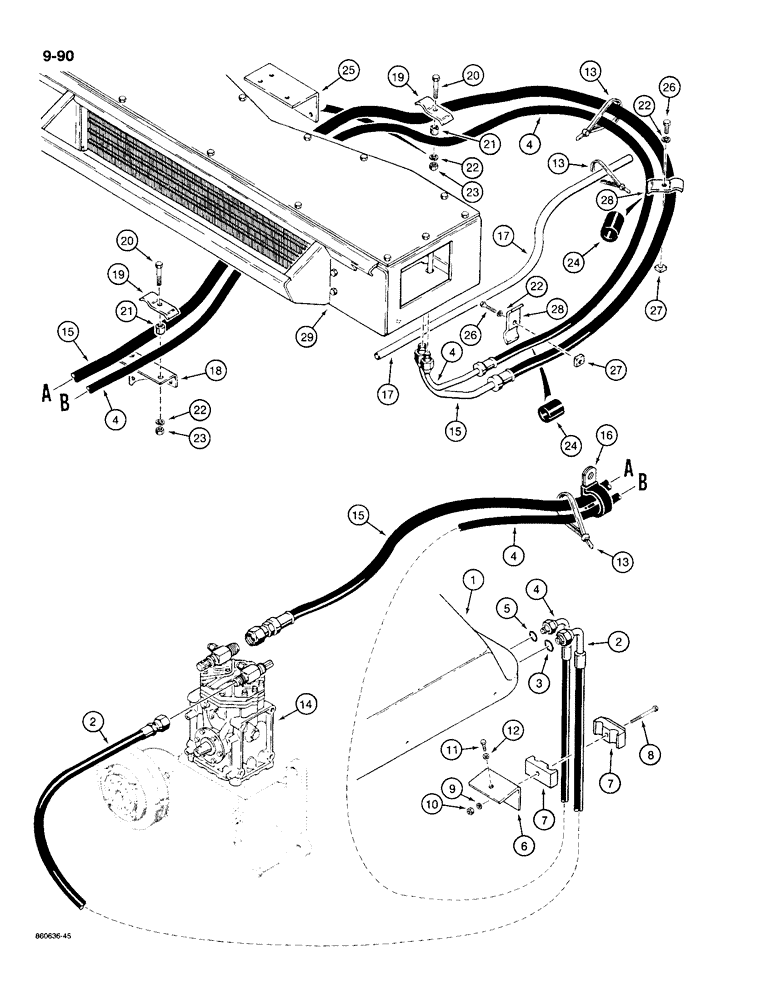

Запчасти Case W20C (9-090) - AIR CONDITIONING LINES, FOR HOOD MOUNTED CONDENSER (09) - CHASSIS/ATTACHMENTS

1

L115234

CONDENSER

CONDENSER - air conditioning, parts list Figue 9-096, for mounting parts see Figure 9-094

1шт.

2

L115525

HOSE ASSY.

SPARE PART HOSE - 63" (1600 mm) long, condenser to compressor, Includes: Ref. 3

1шт.

3

N13633

O-RING,7/16" ID x 1/16" Width

O-RING - hose, at condenser

1шт.

4

L115810

HOSE

HOSE - 180" (4572 mm) long, condenser to evaporator core in cab, Includes: Ref. 5

1шт.

5

A61198

O-RING,0.07" Thk x 0.301" ID, -11

O-RING - hose, at condenser

1шт.

6

L114417

BRACKET

SPARE PART BRACKET - hose clamp

1шт.

7

L115095

CLAMP

CLAMP - double, includes both plastic halves and top steel plate

1шт.

8

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

BOLT, Hex, 5/16"-18 x 2 1/4", G5

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

11

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

14

A141060

COMPRESSOR

COMPRESSOR - air conditioning, parts list Figure 9-092

1шт.

14

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

14

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

14

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

15

L114723

HOSE ASSY.

HOSE - 121" (3073 mm) long, low pressure

1шт.

16

R14192

CLAMP,2", Insul, 3/8" Bolt

CLAMP - hose

1шт.

17

L71740

TUBE,0.5" ID x 29" L

TUBE - drain

2шт.

18

L73911

BRACKET

SPARE PART BRACKET - hose support

1шт.

19

R15257

CLAMP

CLAMP - hose

2шт.

20

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

2шт.

21

D36040

BUSHING

SPACER - clamp

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

L117254

SLEEVE

SLEEVE - hose

4шт.

25

L114711

BRACKET

BRACKET - hose support

1шт.

26

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

27

25-286

NUT,Sq, 3/8"-16, G2, Hvy

NUT - square, heavy, 3/8" - 16 NC

2шт.

28

D40236

CLAMP

CLAMP - hose

2шт.

29

L74336

PLATE

PLENUM - see Figure 9-082, Ref. 1

1шт.
