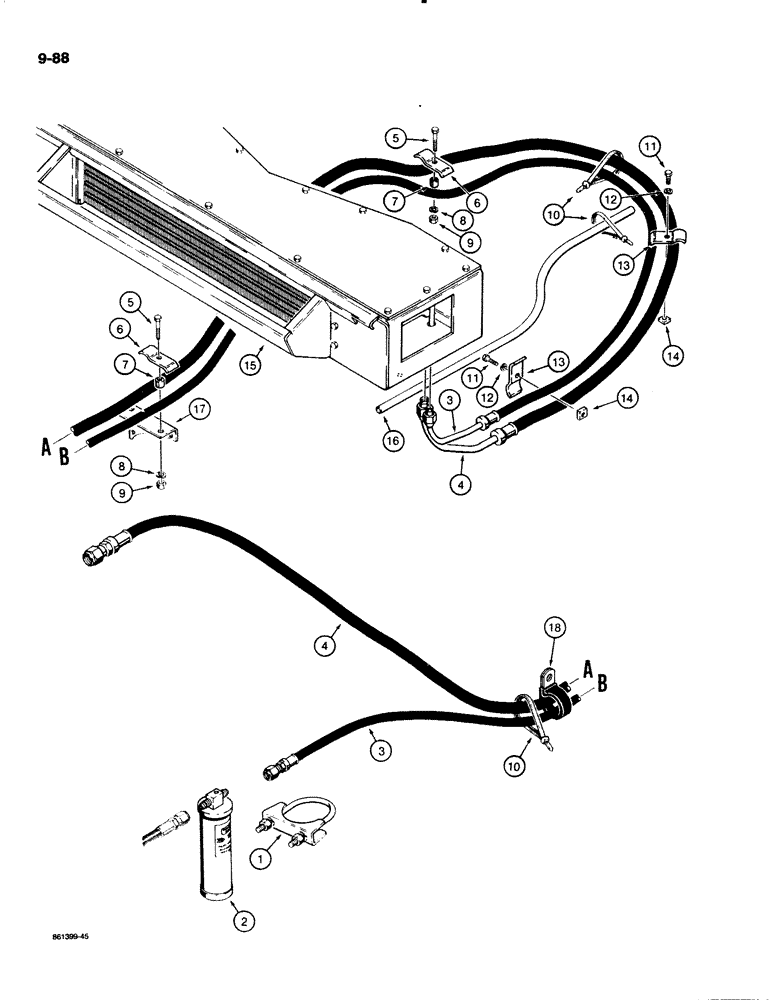

Запчасти Case W20C (9-088) - AIR CONDITIONING LINES, FOR RADIATOR MOUNTED CONDENSER (09) - CHASSIS/ATTACHMENTS

1

L72884

CLAMP

ASSEMBLY - includes hardware, if used

1шт.

2

L109036

EVAPORATOR

DRYER - includes relief valve

1шт.

3

L114722

HOSE ASSY.

HOSE - 123" (3124 mm) long, high pressure

1шт.

4

L114723

HOSE ASSY.

HOSE - 121" (3073 mm) long, low pressure

1шт.

5

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

6

L79797

CLAMP

- hose

2шт.

7

33126

BUSHING

SPACER - clamp

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

L79797

CLAMP

- hose

2шт.

14

25-286

NUT,Sq, 3/8"-16, G2, Hvy

- square, heavy, 3/8" - 16 NC

2шт.

15

L74336

PLATE

PLENUM - see Figure 9-082, Ref. 1

1шт.

16

L71740

TUBE,0.5" ID x 29" L

- drain

2шт.

17

L73911

BRACKET

- hose support

1шт.

18

R14192

CLAMP,2", Insul, 3/8" Bolt

- hose

1шт.
