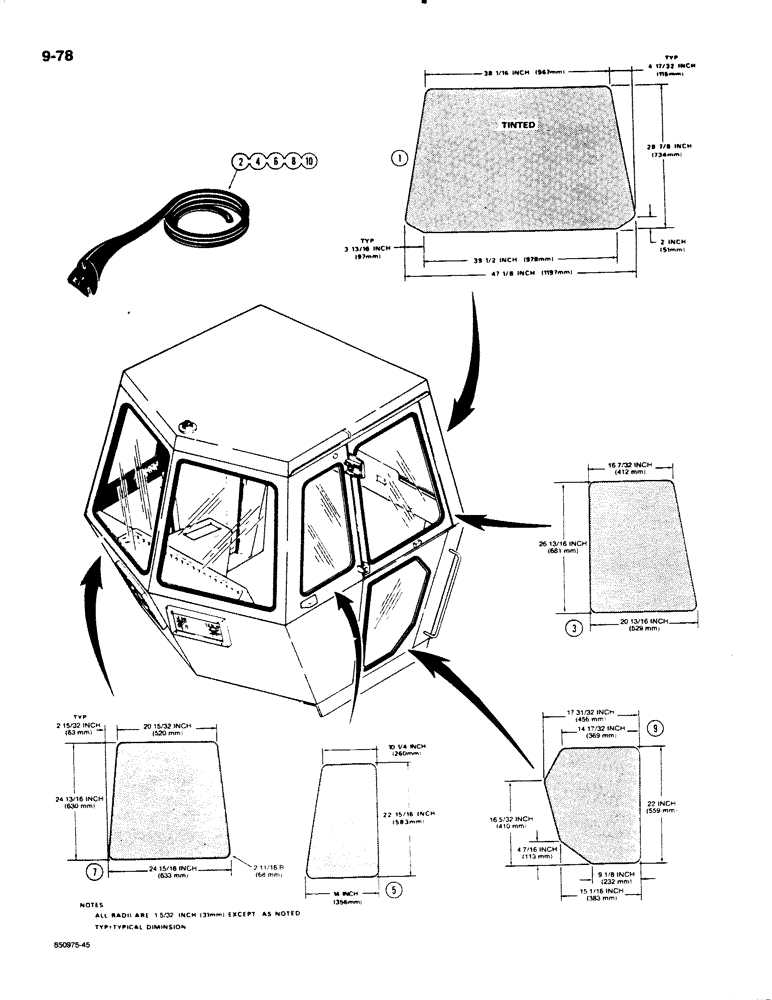

Запчасти Case W20C (9-078) - CAB GLASS AND MOLDINGS, CAB SERIAL NUMBER 53700 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOULDING - windshield, 140-1/8" (3559 mm) long, cut from L35717 bulk

1шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - upper door

2шт.

4

REF

INSTRUCTION

MOULDING - upper door glass, 91-1/8" (2315 mm) long, cut from L35717 bulk

2шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

5

NSS

NOT SOLD SEPARAT

GLASS - side panel

2шт.

6

REF

INSTRUCTION

MOULDING - side panel glass, 76" (1930 mm) long, cut from L35717 bulk

2шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

7

NSS

NOT SOLD SEPARAT

GLASS - rear window

2шт.

8

REF

INSTRUCTION

MOULDING - rear window glass, 97" (2464 mm) long, cut from L35717 bulk

2шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

9

NSS

NOT SOLD SEPARAT

GLASS - lower left-hand door and lower right-hand panel

2шт.

10

REF

INSTRUCTION

MOULDING - lower glass, 73-1/2" (1867 mm) long, cut from L35717 bulk

2шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

L35717

GASKET

MOULDING - bulk, 50 ft. (15.2 m) roll

1шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.
