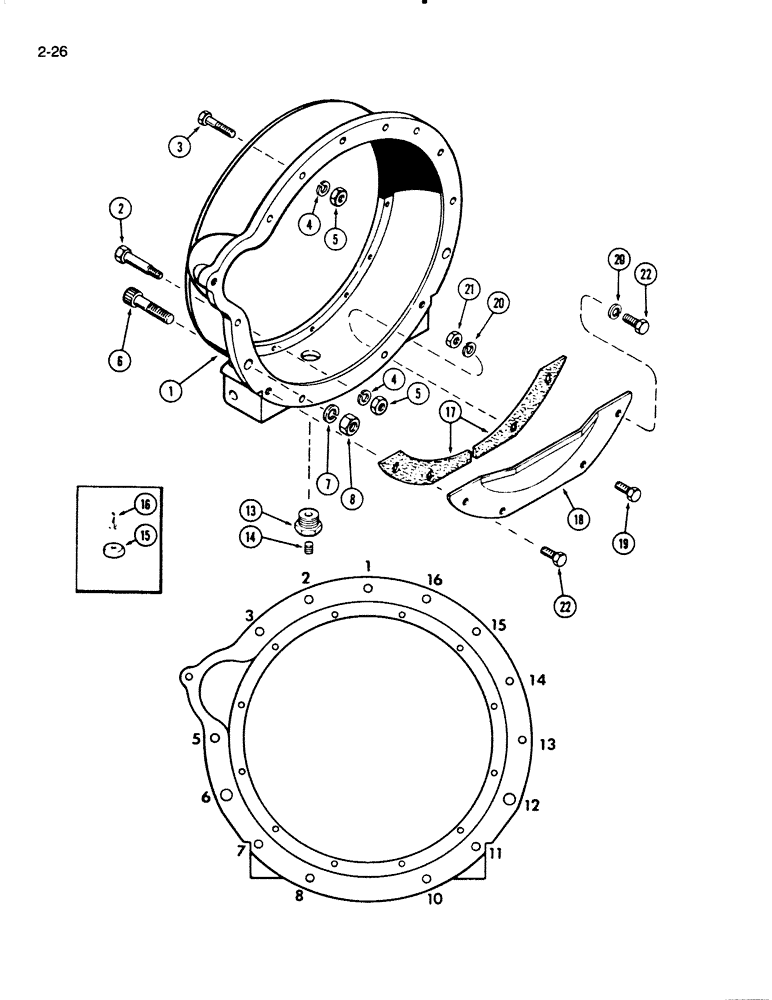

Запчасти Case W20C (2-26) - FLYWHEEL HOUSING, 504BD AND 504BDT ENGINE (02) - ENGINE

1

A166156

HOUSING

ASSEMBLY - flywheel (Includes Ref 13 & 14) (Replaces A153185)

1шт.

2

A149765

STEP BOLT

BOLT - dowel, 2-7/16 inch long (Hole 13)

1шт.

2

A149764

STEP BOLT

BOLT - dowel, 3 inch long (Hole 5)

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Hole 1,2 and 16) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch(Hole 3,14 and 15)

3шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

6

27846R1

12 PT SCREW,Flg, 3/4"-10 x 3"

BOLT - hex socket, 3/4 NC x 3 inch, Grade 8 (Hole 6 and 12)

2шт.

7

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-137

NUT,3/4"-10, G5

(Hole 6 and 12) 3/4"-10, G5

2шт.

13

221-1062

REDUCER,Hex, 1" x 1/4" NPT

- pipe, 1 male x 1/4 inch female

1шт.

14

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

15

41-1020

PLUG,Cup, 1 1/4"

- cup, 1-1/4 inch diameter (If equipped)

1шт.

16

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), , If equipped 1/8" x 5/8"

1шт.

17

L111430

GASKET

- flywheel housing

1шт.

18

A58931

GUARD

SHIELD - dust

1шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Hole 8 and 10) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

22

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch (Hole 7 and 11)

2шт.
