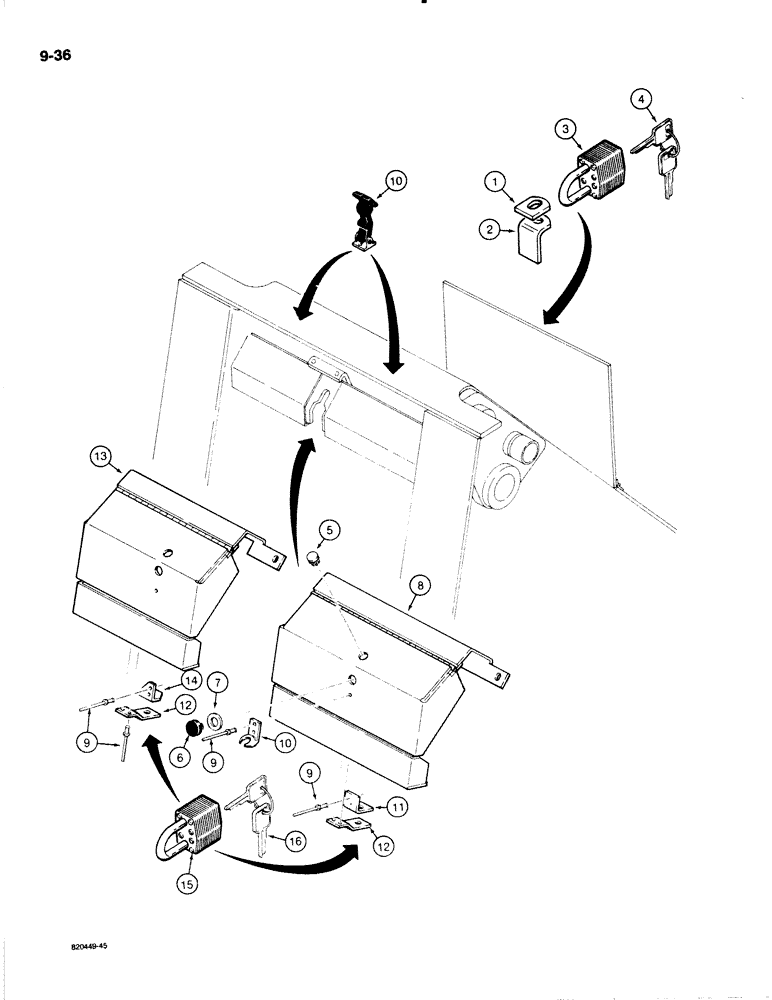

Запчасти Case W20C (9-036) - FRONT FRAME LOCK UP PARTS (09) - CHASSIS/ATTACHMENTS

1

L76805

STRIP

TAB - front frame cover, hydraulic access

1шт.

2

L49004

BRACKET

- front frame cover, hydraulic access

1шт.

3

D93753

PADLOCK

- front frame cover, hydraulic access, Includes: Ref. 4

1шт.

4

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

4

R29555

KEY

- for Master padlock only

2шт.

5

353-405

PLUG,Dome, .562" hole, Nylon

- cover 9/16

2шт.

6

L60224

BUMPER

- cover

2шт.

7

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

8

L100879

COVER ASSY

COVER - instrument panel, right-hand

1шт.

9

151-526

RIVET,Pop, 1/8" x .337"

- Cover Pop, 1/8" x .337"

10шт.

10

L55329

CATCH

HOOK AND LATCH - cover, two piece

2шт.

11

L100880

BRACKET

- lock, right-hand cover

1шт.

12

L100881

BRACKET

- lock

2шт.

13

L100877

COVER ASSY

COVER - instrument panel, left-hand

1шт.

14

L105041

STRIP

BRACKET - lock, left-hand cover

1шт.

15

D93753

PADLOCK

- instrument panel covers, Includes: Ref. 16

2шт.

16

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

16

R29555

KEY

- for Master padlock only

2шт.
