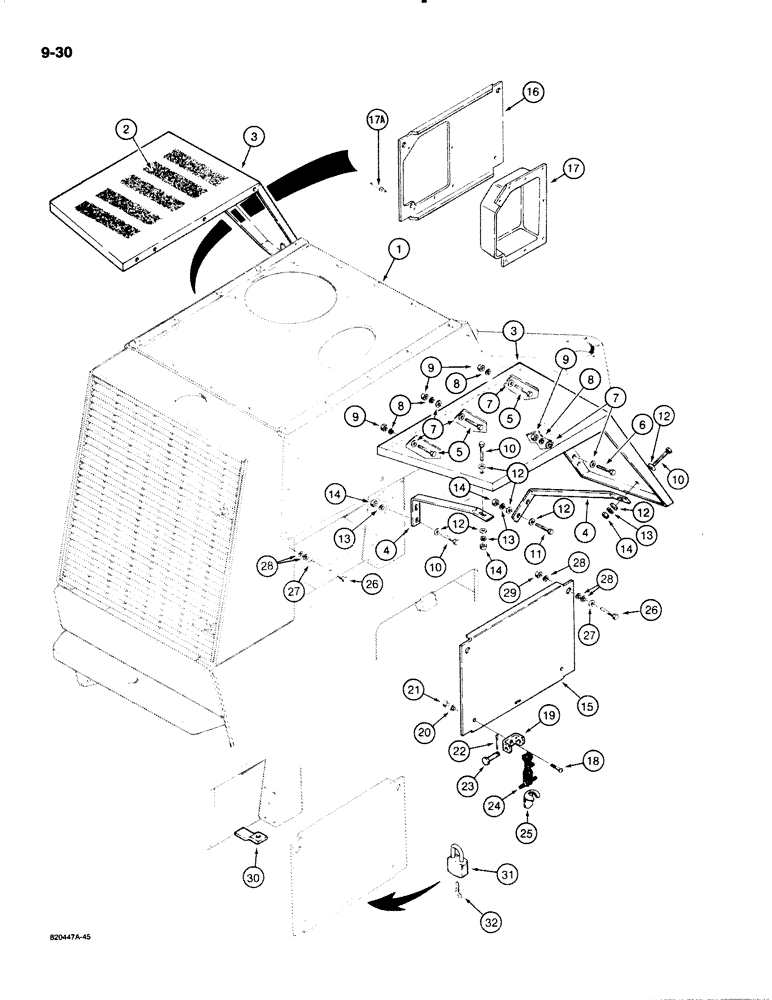

Запчасти Case W20C (9-030) - REAR FENDERS AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HOOD, GRILLE, AND REAR FRAME - see Figures 9-022, 9-026 and 9-028
1шт.
2
D55216
PAD,2" x 9"
PAD - non-skid
10шт.
3
L105705
FENDER
- rear
2шт.
4
L104139
BRACE
- rear fenders
4шт.
5
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
10шт.
6
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex head, 3/8" - 16 NC x 1-1/2"
2шт.
7
95-6
WASHER,3/8"
- flat, 3/8"
12шт.
8
92-6
LOCK WASHER,3/8"
12шт.
9
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
12шт.
10
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
8шт.
11
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
4шт.
12
95-6
WASHER,3/8"
- flat, 3/8"
20шт.
13
92-6
LOCK WASHER,3/8"
12шт.
14
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
12шт.
15
L47146
PANEL ASSY.
PANEL - engine side, 3 used on models with air conditioning
3-4шт.
16
L110275
PANEL
- engine side, left-hand rear, used on models with air conditioning, if used
1шт.
17
L111754
COVER
- air conditioner, if used
1шт.
17a
151-535
RIVET,Pop, 1/8" x .462"
Air conditioner cover, if used Pop, 1/8" x .462"
8шт.
18
182-242
SCREW,Sl Pan Hd, 5/16" - 18 x 3/4"
- slotted, pan head, 5/16" - 18 NC x 3/4"
8шт.
19
L47159
BRACKET
- anchor, hood panel
8шт.
20
92-5
LOCK WASHER,5/16"
8шт.
21
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC
8шт.
22
132-45
COTTER PIN,1/8" x 5/8"
Pin, Split (Cotter), 1/8" x 5/8"
8шт.
23
T11232
PIN
CLEVIS PIN - anchor bracket
8шт.
24
L47157
HOOK
- side panel retaining
8шт.
25
L47158
BRACKET
- hook, side panel, weld on
8шт.
26
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
8шт.
27
95-6
WASHER,3/8"
- flat, 3/8"
8шт.
28
92-6
LOCK WASHER,3/8"
24шт.
29
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
6шт.
30
L104187
BRACKET
TAB - locking, side panel, weld on, if used
4шт.
31
D93753
PADLOCK
- includes keys, if used, Includes: Ref. 32
4шт.
32
D93751
SET OF 2 KEYS
KEY - for Yale padlock only
2шт.
32
R29555
KEY
- for Master padlock only
2шт.
