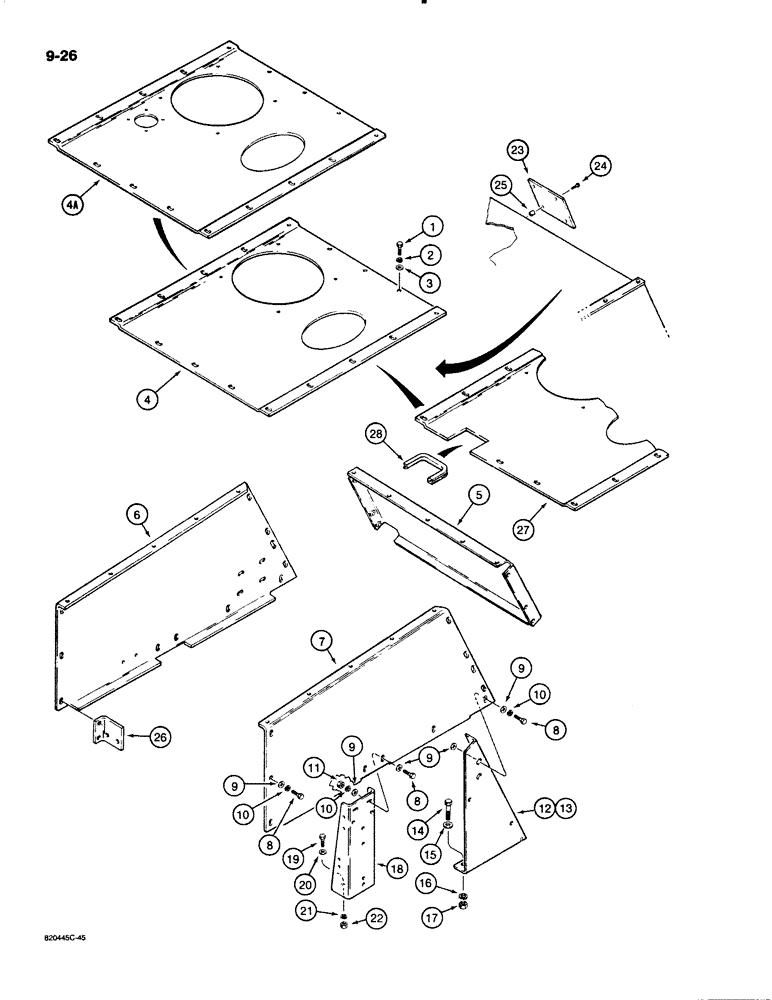

Запчасти Case W20C (9-026) - HOOD AND FRONT PANEL (09) - CHASSIS/ATTACHMENTS

1

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

16шт.

4

L109185

HOOD

PANEL - hood, top

1шт.

4

L70190

HOOD

PANEL - hood, top, turbocharged only

1шт.

4a

L113048

TOP

PANEL - hood, precleaner

1шт.

5

L109480

PANEL

- front

1шт.

6

L61199

PANEL

SIDE PANEL - hood, left-hand

1шт.

7

L109304

PANEL

SIDE PANEL - hood, right-hand

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

18шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, hardened

20шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

18шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

12

L109199

POST

SUPPORT - hood, front, right-hand

1шт.

13

L110734

POST

SUPPORT - hood, front, left-hand

1шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

15

95-8

WASHER,1/2"

flat 1/2"

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

18

L115612

POST

SUPPORT - hood, center

2шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

23

L54570

COVER

- tachometer, front panel, if used

1шт.

24

187-491

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

SCREW - self-tapping, No. 14 - 10 NC x 1", if used

4шт.

25

L72459

SPACER

- cover, if used

4шт.

26

L110804

BRACKET

- dryer mounting, if used

1шт.

27

L123816

PANEL

- hood, top, used with hood mounted condenser

1шт.

28

REF

INSTRUCTION

TRIM - plate edge, 9-13/16" (249 mm) long, cut from F42827, see below

1шт.

F42827

TRIM,2946.4mm L

TRIM - bulk length, 116" (2946 mm) long

1шт.
