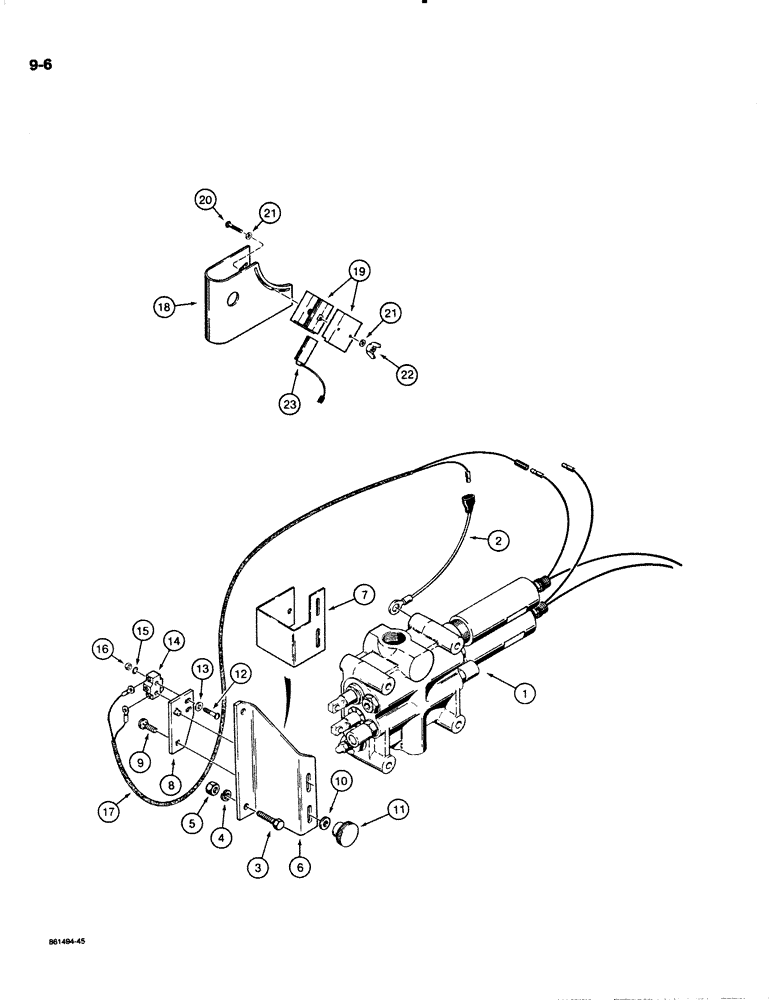

Запчасти Case W20C (9-006) - LOADER BUCKET HEIGHT CONTROL (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 8-20 through 8-26 for correct assembly and components, Serial Range: -9159101

1шт.

2

L50380

ELECTRICAL WIRE

WIRE - ground, solenoid, Serial Range: -9155766

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", Serial Range: -9159101

2шт.

4

92-6

LOCK WASHER,3/8"

, Serial Range: -9159101

2шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, Serial Range: -9159101

2шт.

6

L47276

SUPPORT

- switch mounting bracket, if used, Serial Range: -9159101

1шт.

7

L79051

SUPPORT

- switch mounting bracket, if used, Serial Range: -9159101

1шт.

8

L114699

BRACKET

- switch mounting, Serial Range: -9155766

1шт.

9

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2, Serial Range: -9159101

1шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", Serial Range: -9159101

1шт.

11

A42918

KNOB

- height control, Serial Range: -9159101

1шт.

12

182-52

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

MACHINE SCREW - No. 6 - 32 NC x 1-1/4", Serial Range: -9159101

2шт.

13

195-10

WASHER,#8

, Serial Range: -9159101

2шт.

14

L54683

SWITCH

- bucket height control, Serial Range: -9159101

1шт.

15

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6, Serial Range: -9159101

2шт.

16

129-15

NUT,#6-32

, Serial Range: -9159101

2шт.

17

L57525

HARNESS

- bucket height control, connects to main harness with bullet terminals, Serial Range: -9155766

1шт.

17

L114491

HARNESS

- bucket height control, connects to main harness with blade terminals 9155766, Serial Range: -9159100

1шт.

18

L116961

BRACKET

- height control switch

1шт.

19

L117005

CLAMP

- proximity switch, Start Serial: 9159101

2шт.

20

111-126

BOLT,Short NK, 1/4"-20 x 2 1/4", G2

CARRIAGE BOLT - 1/4" - 20 NC x 2-1/4", plated, Start Serial: 9159101

2шт.

21

195-102

WASHER,1/4"

- flat, , plated 1/4", Start Serial: 9159101

4шт.

22

129-505

NUT, WING

WING NUT - self-locking, 1/4" - 20 NC, Start Serial: 9159101

2шт.

23

R47120

SWITCH

- proximity, height control, Start Serial: 9159101

1шт.
