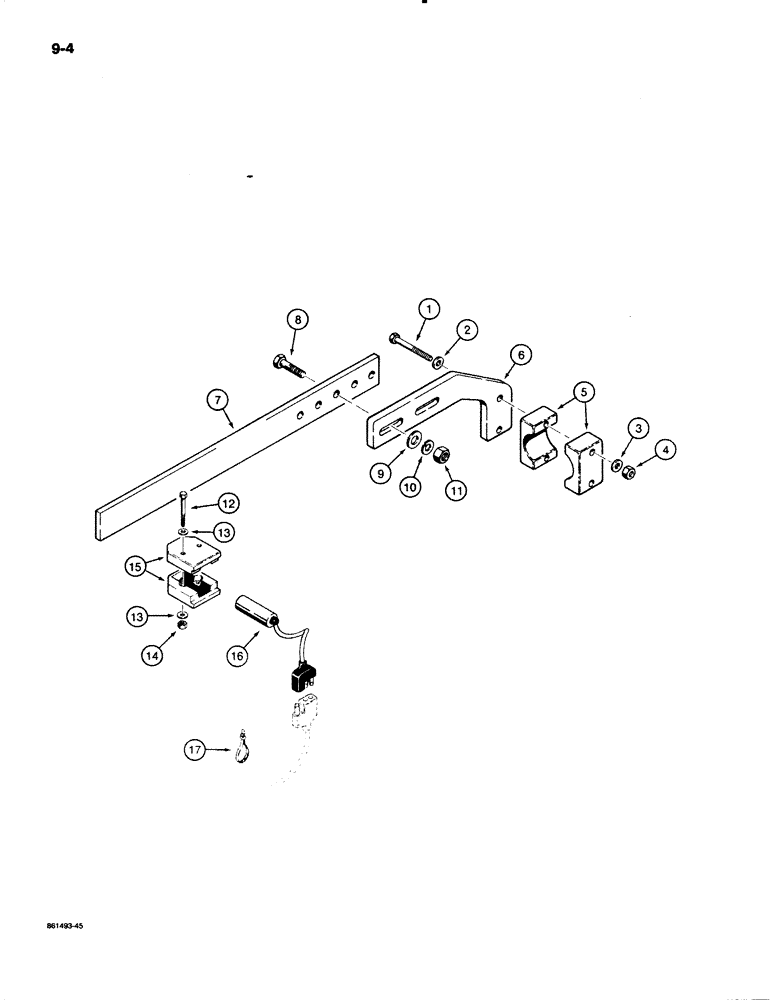

Запчасти Case W20C (9-004) - LOADER BUCKET RETURN-TO-DIG, USED ON W20C P.I.N. 9159101 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

2

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened, plated

2шт.

3

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, plated

2шт.

4

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

5

L118371

CLAMP

- cylinder rod

2шт.

6

L116547

BAR

- return to dig, slotted

1шт.

7

L116647

BAR

- sensing, return-to-dig

1шт.

8

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9

R24718

WASHER

- flat, 1/2", hardened

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

12

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/4", plated

2шт.

13

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

14

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

15

L117005

CLAMP

- proximity switch

2шт.

16

R47120

SWITCH

- proximity, return-to-dig

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

8шт.
