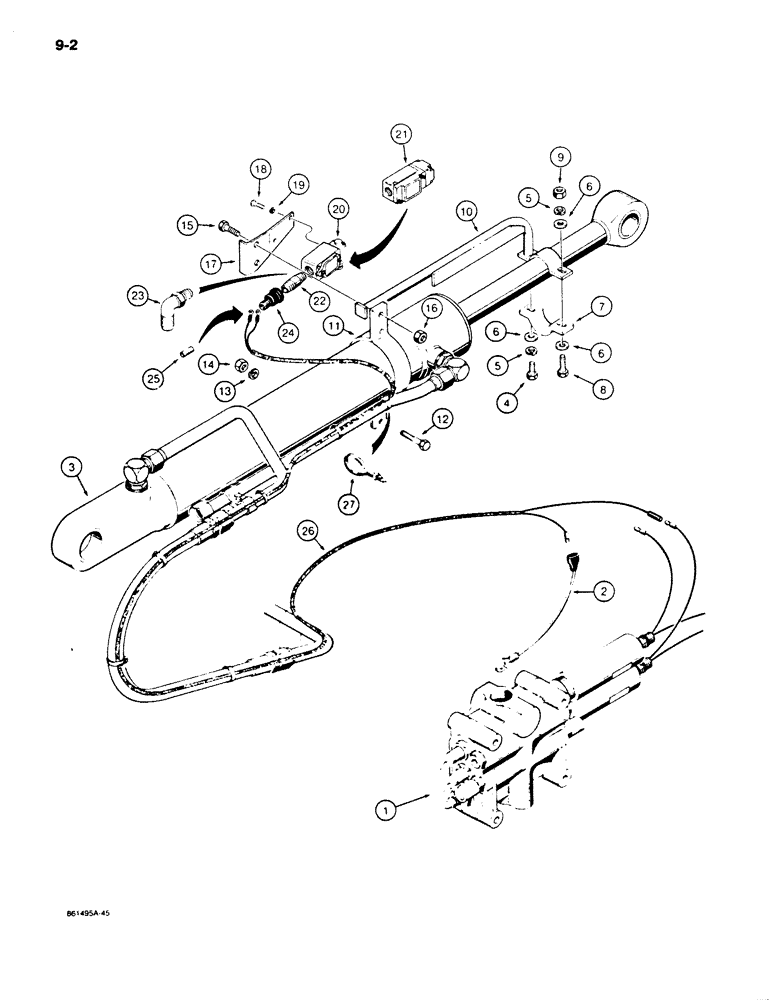

Запчасти Case W20C (9-002) - LOADER BUCKET RETURN-TO-DIG, USED BEFORE W20C P.I.N. 9159101 (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CONTROL VALVE - loader, see Figures 8-20 through 8-26 for correct assembly and components

1шт.

2

L50380

ELECTRICAL WIRE

WIRE - ground, solenoid, W18B

1шт.

2

L50380

ELECTRICAL WIRE

WIRE - ground, solenoid, W20C, Serial Range: -9155766

1шт.

3

REF

INSTRUCTION

CYLINDER - right-hand bucket, see Figures 8-52 through 8-56 for correct assembly and components

1шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

195-25

WASHER,3/8"

3шт.

7

L55773

CLAMP

- indicator retaining

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

10

L79633

INDICATOR

- return-to-dig

1шт.

11

L48625

CLAMP

- switch bracket mounting

2шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

131-94

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, special

2шт.

17

L48624

BRACKET

- switch mounting, standard bucket, if used

1шт.

17

L51559

BRACKET

- switch mounting, clam bucket, for decal see Figures 9-102 and 9-104

1шт.

18

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW - pan head, No. 10 - 32 NF x 1/2"

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

20

L43856

SWITCH

ASSEMBLY - control, return-to-dig, production, Cutler Hammer No. 10316H187C, order L108879 switch

1шт.

NSS

NOT SOLD SEPARAT

HOUSING - switch, not shown

1шт.

L33933

KIT

- repair, switch

1шт.

L30628

LEVER

ASSEMBLY - switch, not shown

1шт.

L73709

COVER - access, switch module, not shown

1шт.

L33934

GASKET - cover, not shown

1шт.

L33935

SEAL - not shown

1шт.

L30627

SWITCH - module, return-to-dig, not shown

1шт.

21

L108879

SWITCH

ASSEMBLY - control, return-to-dig, service only, Cutler Hammer No. E50

1шт.

Does not include a lever and never did.

1шт.

N7969

HEAD

- switch, not shown

1шт.

N7970

BODY

- switch, not shown

1шт.

N7971

CONNECTION,ELECTRIC

RECEPTACLE - switch, not shown

1шт.

22

221-1185

FITTING

NIPPLE - 1/2" NPT, if used

1шт.

23

L115560

ELBOW

- 90 degree, plastic, at switch, if used

1шт.

24

G46803

BOOT

- switch protection

1шт.

25

L126784

HEATER TUBE,0.19" ID x 1.5" L

TUBING - shrink, if used

1шт.

26

L50381

HARNESS

- return-to-dig, connects to main harness with bullet terminals, used before W20C P.I.N. 9155766

1шт.

26

L114492

HARNESS

- return-to-dig, connects to main harness with blade terminals, used on W20C P.I.N. 9155766 through P.I.N. 9159100

1шт.

27

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - harness retaining, nylon

6шт.
