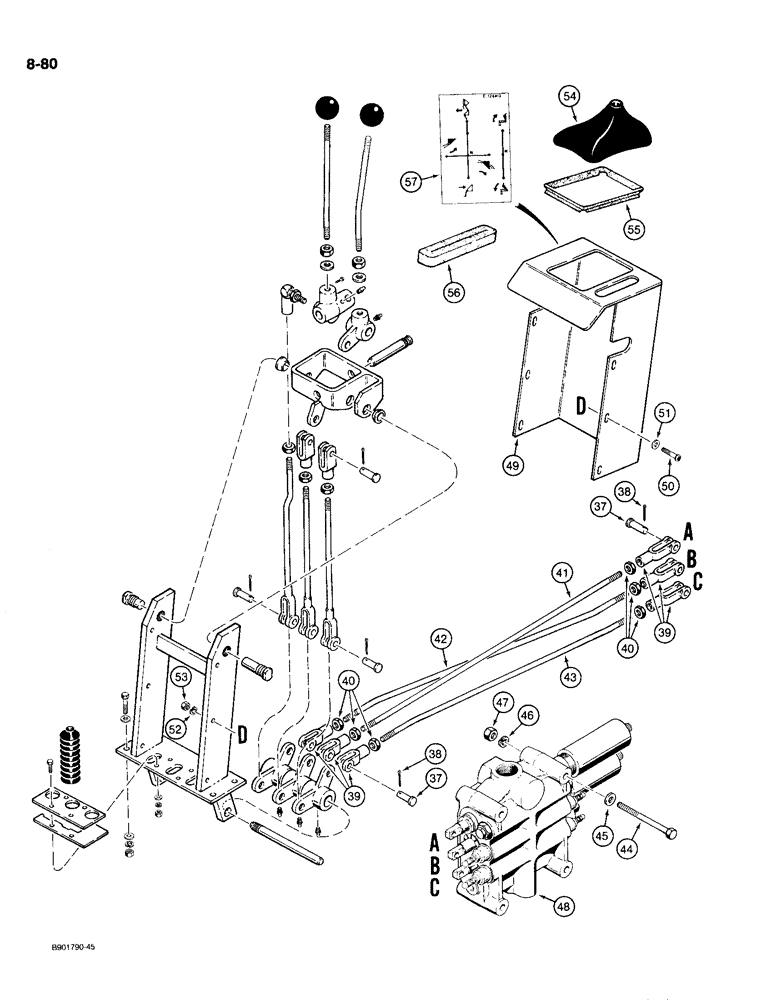

Запчасти Case W20C (8-80) - LOADER CONTROL LEVERS (3 SPOOL), WITH SINGLE LEVER CONTROL (08) - HYDRAULICS

37

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2 x 1-23/64 inch, hardened

6шт.

38

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

6шт.

39

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - adjustable, 1/2 inch NF

6шт.

40

425-158

JAM NUT,Jam, 1/2"-20, G5

6шт.

41

L74926

ROD

- control, loader lift

1шт.

Rods are used with L71422 valve only, (1) L127293 bucket control and (2) L127294 clam and lift control rods must be used with L127095 service replacement valve.

1шт.

42

L74927

ROD

- control, bucket

1шт.

Rods are used with L71422 valve only, (1) L127293 bucket control and (2) L127294 clam and lift control rods must be used with L127095 service replacement valve.

1шт.

43

L74927

ROD

- control, bucket clam

1шт.

Rods are used with L71422 valve only, (1) L127293 bucket control and (2) L127294 clam and lift control rods must be used with L127095 service replacement valve.

1шт.

44

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

3шт.

45

95-8

WASHER,1/2"

flat 1/2"

3шт.

46

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

47

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

48

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, 3 spool, see Figures 8-24 and 8-26 for correct valve

1шт.

49

E126746

COVER

- ROPS canopy models

1шт.

50

FE146

BOLT,M5 x 30mm

SCREW - machine, special

6шт.

51

FE4001

WASHER

- flat, special

6шт.

52

FE4201

LOCK WASHER

- lock, special

6шт.

53

825-1105

NUT,M5, Cl 8

- hex, 5 mm - .8

6шт.

54

E126757

BOOT - console cover

1шт.

55

E126756

RETAINER

- boot

1шт.

56

E126755

FOAM

SEAL - foam, control lever

1шт.

57

E126913

DECAL

- loader control pattern

1шт.
