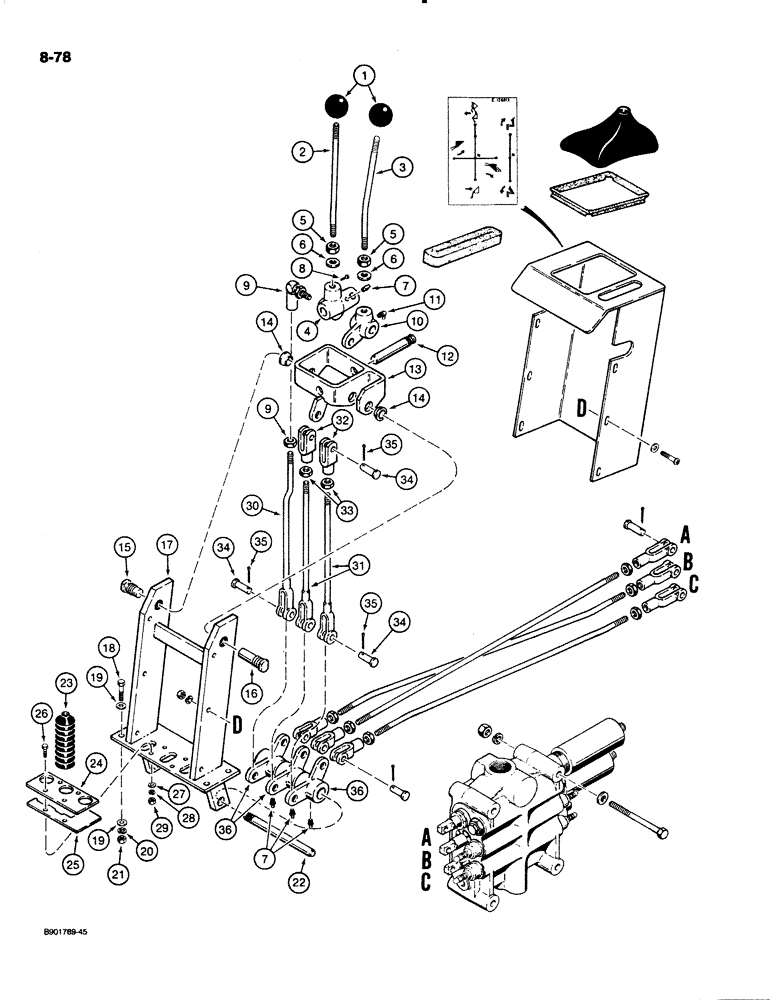

Запчасти Case W20C (8-78) - LOADER CONTROL LEVERS (3 SPOOL), WITH SINGLE LEVER CONTROL (08) - HYDRAULICS

1

E128143

KNOB

- control lever

2шт.

2

L123783

LEVER

- control, loader lift and bucket

1шт.

3

E126747

ROD

LEVER - bucket clam

1шт.

4

E126741

DIPPER

BELLCRANK - control lever, lift and bucket

1шт.

5

825-1116

NUT,M16, Cl 8

2шт.

6

FE4412

WASHER

- special

2шт.

7

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Special 1/8"-27 x .66 lg

4шт.

8

814-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

- hex, 6 - 1 x 10 mm

1шт.

9

E126740

BALL JOINT

- control lever, includes jam nut

1шт.

10

E126739

DIPPER

BELLCRANK - control lever, clam

1шт.

11

FE77

FITTING

- grease, 90 degree, special

1шт.

12

E126737

AXLE PIN

SHAFT - pivot, bellcrank

1шт.

13

E126730

SUPPORT ASSY.

BELLCRANK - control rod

1шт.

14

E126734

CYLINDER END CAP

BUSHING - bellcrank

2шт.

15

E126735

AXLE PIN

SHAFT - bellcrank to console, short

1шт.

16

E126736

AXLE PIN

SHAFT - bellcrank to console, long

1шт.

17

E126738

SUPPORT

CONSOLE - control, bellcrank

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

19

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

22

E125040

AXLE PIN

SHAFT - mounting, lower bellcrank

1шт.

23

L59927

SEAL

- control rods, cab models

3шт.

24

L76911

PLATE

- seal retaining, cab models

1шт.

25

L70085

SEAL

- plate, cab models

1шт.

26

163-12

SCREW,Hex, #10 - 24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch

4шт.

27

195-10

WASHER,#8

- flat, No. 10

4шт.

28

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

29

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

4шт.

30

E126743

ROD

- bucket control

1шт.

31

E128138

ROD

- lift and clam control

2шт.

32

E128131

CLEVIS

- end, lift rod, special

2шт.

33

825-1112

NUT,M12, Cl 8

- hex, 12 mm - 1.75

2шт.

34

141-56

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2 x 1-23/64 inch, hardened

5шт.

35

FE5305

PIN

- cotter, clevis, special

5шт.

36

E125041

DIPPER

BELLCRANK - lower, control rod

3шт.
