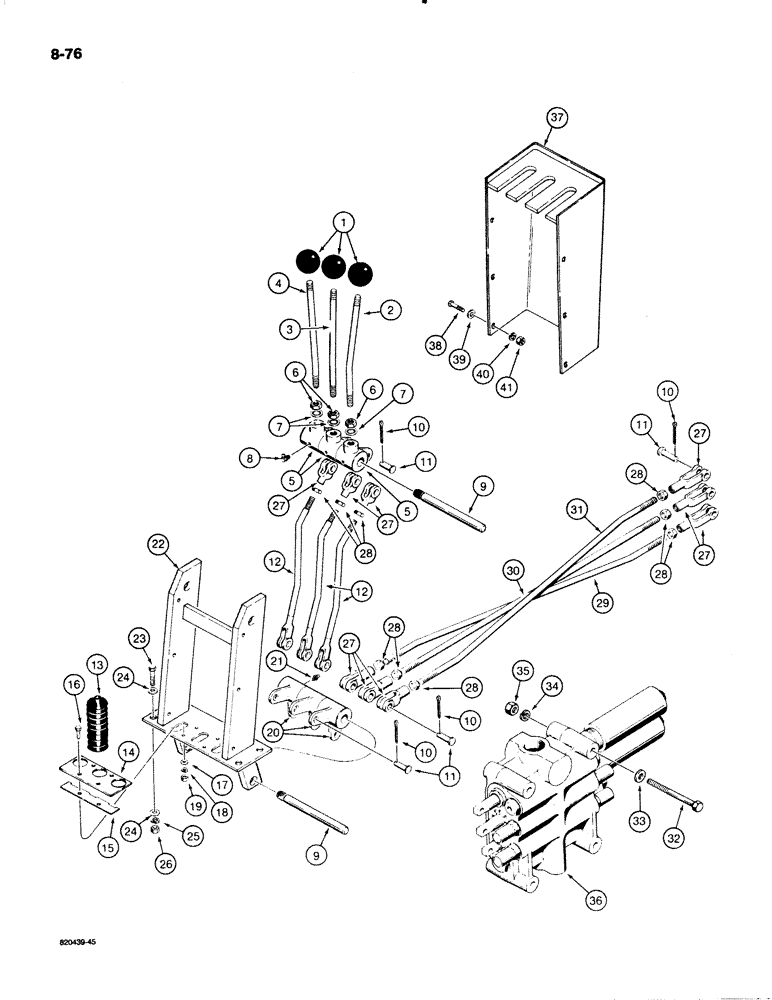

Запчасти Case W20C (8-76) - LOADER CONTROL LEVERS (3 SPOOL), WITH DUAL LEVER CONTROLS (08) - HYDRAULICS

1

L56064

KNOB

- control lever

3шт.

2

L59087

LEVER

CONTROL LEVER - loader lift

1шт.

3

L59089

LEVER

CONTROL LEVER - loader bucket

1шт.

4

L59088

LEVER

CONTROL LEVER - bucket clam

1шт.

5

L59090

DIPPER

BELLCRANK - upper

3шт.

6

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8" - 18 NF, plated

3шт.

7

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

3шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

3шт.

9

L102849

SHAFT,19.05mm OD x 195.58mm L

- lever pivot

2шт.

10

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

12шт.

11

141-6

CLEVIS PIN,1/2" x 1.360"

- 1/2"

12шт.

12

L104216

ROD

- control

3шт.

13

L59927

SEAL

- control rods, cab models

3шт.

14

L76911

PLATE

- seal retaining, cab models

1шт.

15

L59978

SEALING STRIP

- plate, cab models

1шт.

16

163-12

SCREW,Hex, #10 - 24 x 3/4"

MACHINE SCREW - hex head, No. 10 - 32 NF x 3/4"

4шт.

17

195-101

WASHER,3/16"

- flat, No. 10, plated

4шт.

18

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

19

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 32 NF

4шт.

20

L51047

DIPPER

BELLCRANK - spool actuating, lower

3шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

22

L106722

SUPPORT

CONSOLE - control

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

24

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

27

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - 1/2", connecting link

9шт.

28

129-165

JAM NUT,Jam, 1/2"-20, G5

9шт.

29

L74927

ROD

- control, clam

1шт.

Rods are used with L71422 valve only, (1) L127293 bucket control and (2) L127294 clam and lift control rods must be used with L127095 service replacement valve.

1шт.

30

L74926

ROD

- control, bucket

1шт.

Rods are used with L71422 valve only, (1) L127293 bucket control and (2) L127294 clam and lift control rods must be used with L127095 service replacement valve.

1шт.

31

L74927

ROD

- control, loader lift

1шт.

Rods are used with L71422 valve only, (1) L127293 bucket control and (2) L127294 clam and lift control rods must be used with L127095 service replacement valve.

1шт.

32

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

33

95-8

WASHER,1/2"

flat 1/2"

3шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

35

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

36

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, 3 spool, see Figures 8-24 and 8-26 for correct valve

1шт.

37

L108559

COVER

- ROPS canopy models

1шт.

38

182-131

SCREW,Sl Pan Hd, #10 - 24 x 1 1/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1-1/4"

6шт.

39

195-101

WASHER,3/16"

- flat, No. 10, plated

6шт.

40

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

41

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

6шт.
