Запчасти Case W20C (2-22) - CYLINDER BLOCK, 504BD AND 504BDT ENGINE (02) - ENGINE

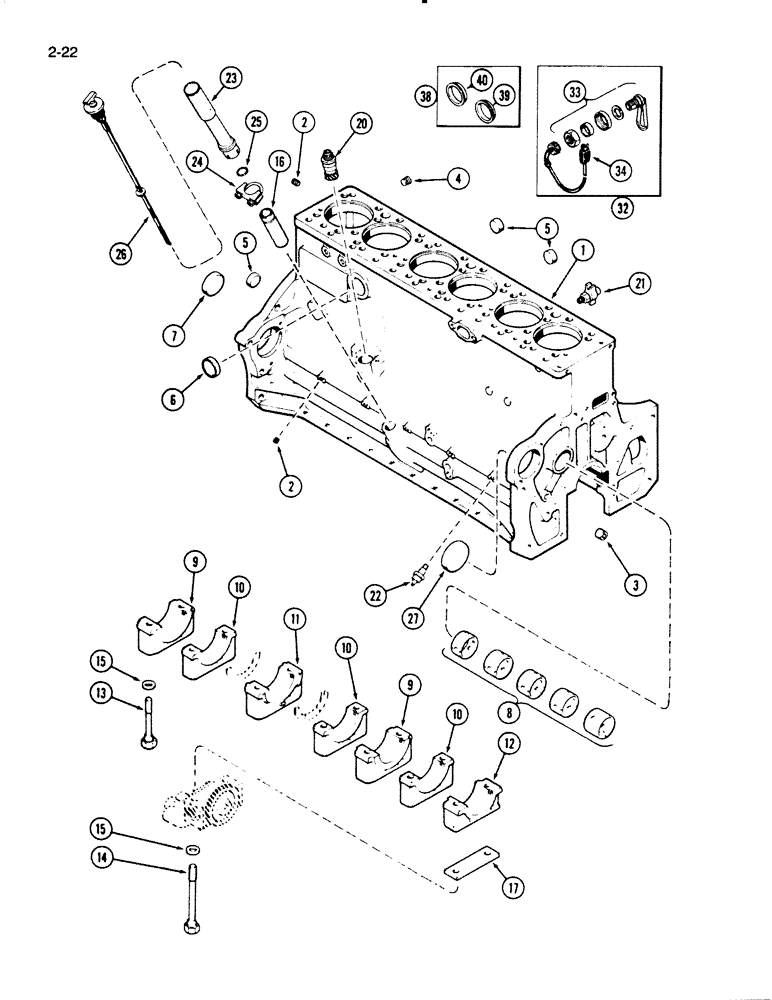

Схема запчастей Case W20C - (2-22) - CYLINDER BLOCK, 504BD AND 504BDT ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

A152986

CRANKCASE

BLOCK ASSEMBLY - short, includes stripped block camshaft, crankshaft and bearings, piston assembly connecting rods and bearings and timing gears

1шт.

1

A46002

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting No. A66526), Includes: Ref. 2 - 27

1шт.

1

AR77834

REMAN-BASIC ENGINE

Remanufactured, replacement for engines with block casting number of A66526, N.A. Only

1шт.

1

AC77834

CORE-BASIC ENGINE

Return Number,replacement for engines with block casting number of A66526, N.A. Only

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

PLUG - hex socket, 1/8 inch PT

5шт.

3

221-1843

PLUG

PLUG - hex socket, 3/8 inch PT

1шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

PLUG - hex socket, 3/4 inch PT

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup type, 1-3/8 inch diameter

3шт.

6

A58569

PLUG,Cup, 2", Stainless

PLUG - cup type, 2 inch diameter

1шт.

7

A24361

PLUG

PLUG - cup type, 2-3/8 inch diameter

1шт.

8

REF

INSTRUCTION

BUSHING - camshaft (See Figure 2-21)

1шт.

9

A185063

CAP

CAP - wide main bearing

2шт.

10

A154390

CAP

CAP - narrow main bearing

3шт.

11

A154392

CAP

CAP - main bearing

1шт.

12

A154389

CAP

CAP - main bearing, wide (Front)

1шт.

13

A66948

STEP BOLT

BOLT - bearing cap

12шт.

14

A66949

STEP BOLT

BOLT - front bearing cap and oil pump

2шт.

15

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flat, hardened

14шт.

16

A34540

TUBE

TUBE - oil filler and dipstick

1шт.

17

A58859

SHIM,.005" Thk

SHIM, , Oil pump (0.127 mm) .005" Thk

1шт.

20

A67178

DRIVE

DRIVE ASSEMBLY - tachometer

1шт.

21

A23656

COCK, DRAIN

VALVE - drain, 1/4 inch PT

1шт.

22

A66737

SWITCH, PRESSURE

PRESSURE SWITCH SWITCH - engine oil pressure

1шт.

23

A153835

TUBE

TUBE - extension, oil filler

1шт.

24

L47766

CLAMP

CLAMP - extension tube

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O-RING - sealing

1шт.

26

A154767

DIPSTICK

DIPSTICK ASSEMBLY - oil level

1шт.

27

41-1052

PLUG,Cup, 3 1/4"

PLUG - cup, 3-1/4 inch diameter

1шт.

32

A155436

RESISTOR

HEATER ASSEMBLY - cylinder block, sleeve kit

1шт.

33

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A155436), block and sleeve kit

1шт.

34

A44813

CABLE EXTENSION

CORD ASSEMBLY - heater, block and sleeve kit

1шт.

38

A44006

SLEEVE

SLEEVE KIT - heater installation, block and sleeve kit

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16 inch diameter hole, block and sleeve kit

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/8 inch diameter hole, block and sleeve kit

1шт.

Выбрано товаров: 34
