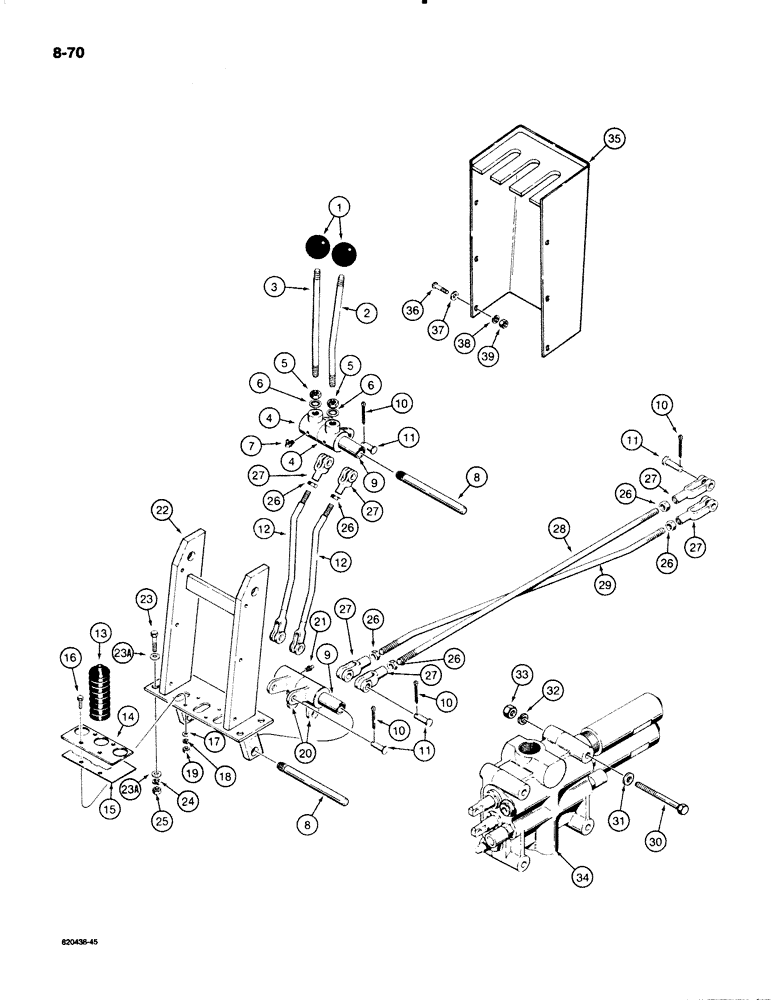

Запчасти Case W20C (8-70) - LOADER CONTROL LEVERS (2 SPOOL), WITH DUAL LEVER CONTROLS (08) - HYDRAULICS

1

L56064

KNOB

- control lever

2шт.

2

L59087

LEVER

CONTROL LEVER - loader lift

1шт.

3

L59089

LEVER

CONTROL LEVER - loader bucket

1шт.

4

L59090

DIPPER

BELLCRANK - lever, upper

2шт.

5

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8" - 18 NF, plated

2шт.

6

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

2шт.

8

L102849

SHAFT,19.05mm OD x 195.58mm L

- lever pivot

2шт.

9

L55379

BUSHING,19.05mm ID x 26.9mm OD x 54mm L

SPACER - pivot shaft

2шт.

10

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

8шт.

11

141-6

CLEVIS PIN,1/2" x 1.360"

- 1/2"

8шт.

12

L104216

ROD

- control

2шт.

13

L59927

SEAL

- control rods, cab models

2шт.

14

L76911

PLATE

- seal retaining, cab models

1шт.

15

L70085

SEAL

- plate, cab models

1шт.

16

163-12

SCREW,Hex, #10 - 24 x 3/4"

MACHINE SCREW - hex head, No. 10 - 32 NF x 3/4"

4шт.

17

195-10

WASHER,#8

- flat, No. 10, plated

4шт.

18

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

19

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 32 NF, plated

4шт.

20

L51047

DIPPER

BELLCRANK - spool actuating, lower

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

22

L106722

SUPPORT

CONSOLE - control

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

23a

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

26

129-165

JAM NUT,Jam, 1/2"-20, G5

6шт.

27

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - 1/2", connecting link

6шт.

28

L74926

ROD

- control, loader lift

1шт.

Rods are used with L70410 valve only, (1) L127293 lift control and (1) L127294 bucket control rod must be used with L127094 service replacement valve.

1шт.

29

L74927

ROD

- control, bucket

1шт.

Rods are used with L70410 valve only, (1) L127293 lift control and (1) L127294 bucket control rod must be used with L127094 service replacement valve.

1шт.

30

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

31

95-8

WASHER,1/2"

flat 1/2"

3шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

33

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

34

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, 2 spool, see Figures 8-20 and 8-22 for correct valve

1шт.

35

L108559

COVER

- ROPS canopy models

1шт.

36

182-131

SCREW,Sl Pan Hd, #10 - 24 x 1 1/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1-1/4"

6шт.

37

195-101

WASHER,3/16"

- flat, No. 10, plated

6шт.

38

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

39

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

6шт.
