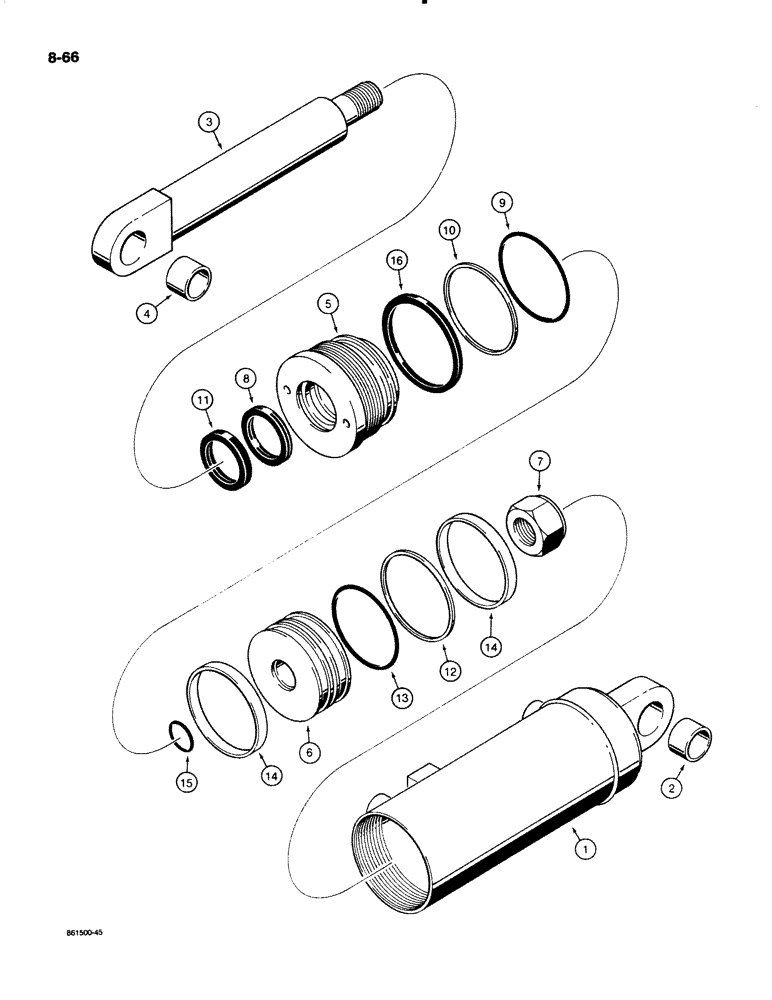

Запчасти Case W20C (8-66) - N14166 CLAM CYLINDER (08) - HYDRAULICS

N14166

CYLINDER

ASSEMBLY - clam, left-hand and right-hand, 4" (102 mm) ID x 11" (279 mm) stroke, Includes: Ref. 1 - 16

2шт.

1

N14183

TUBE ASSY.

TUBE ASSEMBLY - cylinder, Includes: Ref. 2

1шт.

2

N14188

BUSHING

- cylinder eye

1шт.

3

N14185

ROD

- cylinder, Includes: Ref. 4

1шт.

4

N14188

BUSHING

- rod eye

1шт.

5

N14186

GLAND

- cylinder

1шт.

6

N14184

PISTON

- cylinder

1шт.

7

131-24

NUT,7/8"-14, GB

NUT - hex, self-locking, 1-1/2" - 12 NF

1шт.

N14187

SEAL KIT

- seal, Includes: Ref. 8 - 16

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - wiper

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

10

NSS

NOT SOLD SEPARAT

BACKUP RING - gland O-ring

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston wiper

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

15

NSS

NOT SOLD SEPARAT

O-RING - piston, inner

1шт.

16

NSS

NOT SOLD SEPARAT

RING - seal, gland

1шт.
