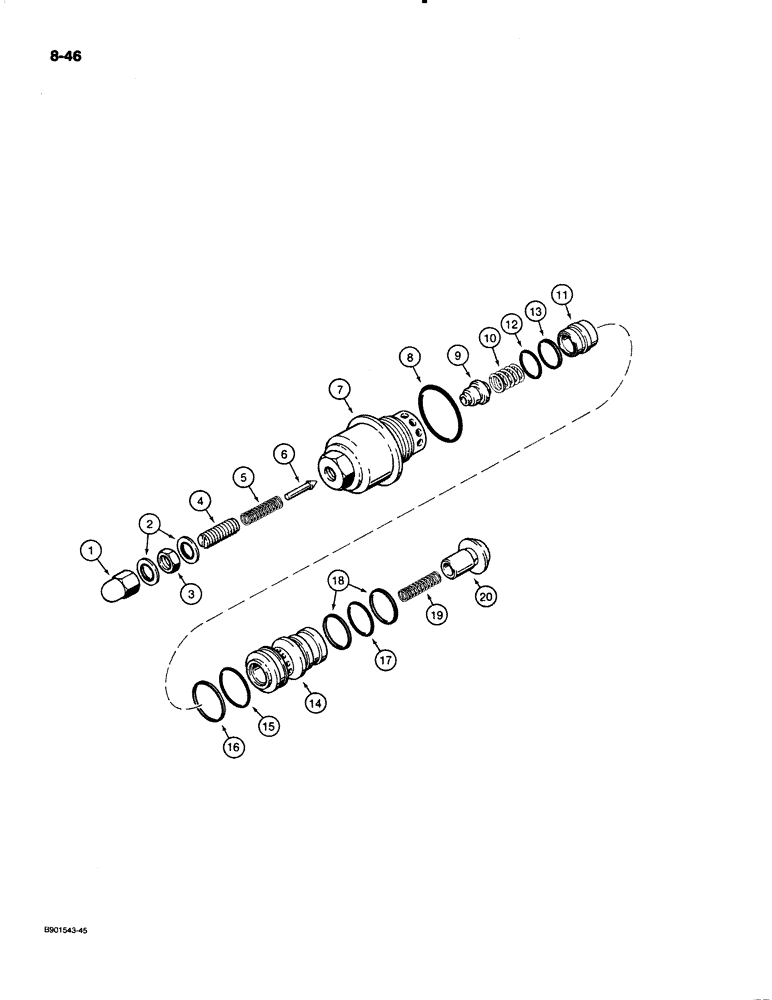

Запчасти Case W20C (8-46) - D146629 CIRCUIT RELIEF VALVE (08) - HYDRAULICS

D146629

VALVE PRESSURE RELIE

VALVE ASSEMBLY - circuit relief, control valve, Includes: Ref. 1 - 20

2-4шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

- dome, 5/16 inch NF

1шт.

2

D26270

WASHER, SEALING

SEAL - washer with rubber insert

2шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

4

176-299

SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt

SCREW - 5/16 NF x 7/8 inch, adjusting

1шт.

5

D26268

SPRING

- plunger

1шт.

6

D26267

PLUNGER

- pilot

1шт.

7

D146999

COVER

CAP - relief valve

1шт.

8

A7464

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- relief valve cap

1шт.

9

D147000

SEAT

- pilot plunger

1шт.

10

D147003

SPRING

- relief poppet

1шт.

11

D147001

VALVE

POPPET - relief

1шт.

12

L30444

O-RING,0.521" ID x 0.661" OD

- poppet

1шт.

13

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup, poppet O-ring

1шт.

14

D147002

HYDRAULIC VALVE

BODY - valve, load check

1шт.

15

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Valve body, outer -115, 70 Duro, .674" ID x .103" Thk

1шт.

16

A41346

RING

- backup, valve body O-ring, outer

1шт.

17

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Valve body, inner -114, 70 Duro, .612" ID x .103" Thk

1шт.

18

G32626

RING

- backup, valve body O-ring, inner

2шт.

19

D48818

SPRING

- load check poppet

1шт.

20

L32622

VALVE POPPET

POPPET - load check valve

1шт.
