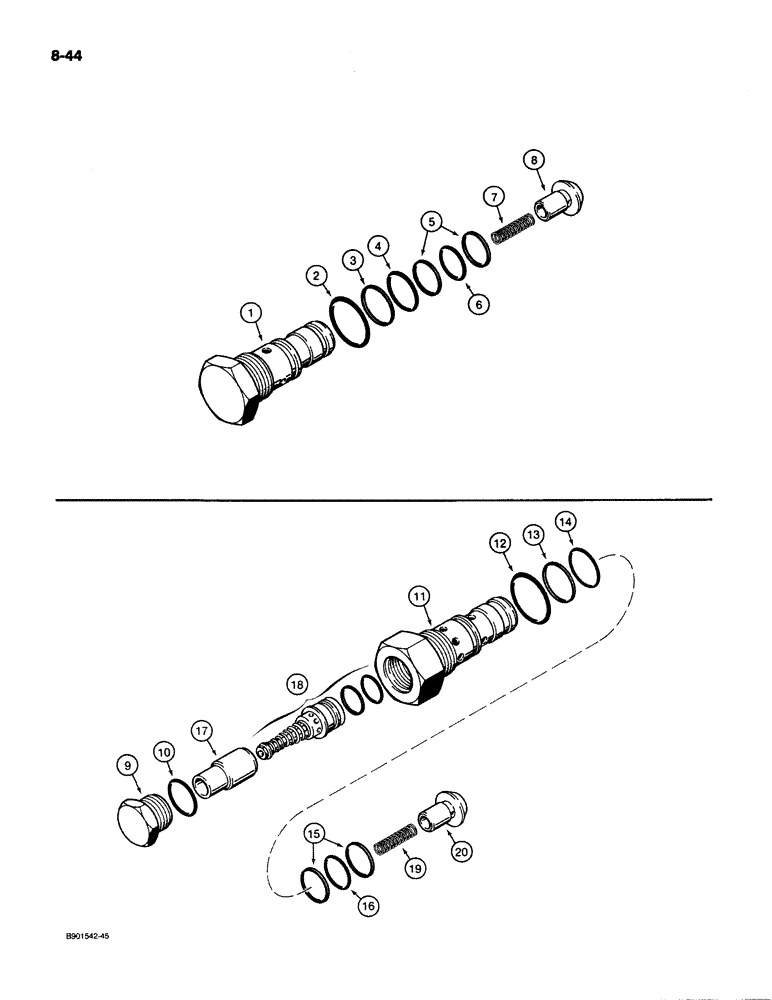

Запчасти Case W20C (8-44) - VALVE COMPONENTS (08) - HYDRAULICS

D146628

VALVE

ASSEMBLY - load check, control valve, Includes: Ref. 1 - 8

1шт.

1

L32632

VALVE

CAP - load check valve

1шт.

2

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- outer, load check valve

1шт.

3

A41346

RING

- backup, load check valve, center

1шт.

4

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- center, load check valve

1шт.

5

G32626

RING

- backup, load check valve, inner

2шт.

6

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- inner, load check valve

1шт.

7

D48818

SPRING

- load check valve

1шт.

8

L32622

VALVE POPPET

POPPET - load check valve

1шт.

S300837

VALVE

ASSEMBLY - anticavitation, control valve, Includes: Ref. 9 - 20

1шт.

9

S300866

PLUG

- anticavitation valve

1шт.

11

S300867

VALVE

BODY - anticavitation and check valve

1шт.

12

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

Valve, outer, anticavitation -117, 70 Duro, .799" ID x .103" Thk

1шт.

13

A41346

RING

- backup, valve, center, anticavitation

1шт.

14

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- valve, center, anticavitation

1шт.

15

G32626

RING

- backup, valve, inner, anticavitation

2шт.

16

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- inner, anticavitation

1шт.

17

S300868

SPACER

RETAINER - anticavitation valve

1шт.

18

S301653

VALVE

- anticavitation

1шт.

19

S96675

SPRING

- check valve, anticavitation

1шт.

20

L32622

VALVE POPPET

POPPET - check valve, anticavitation

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug, anticavitation valve

1шт.
