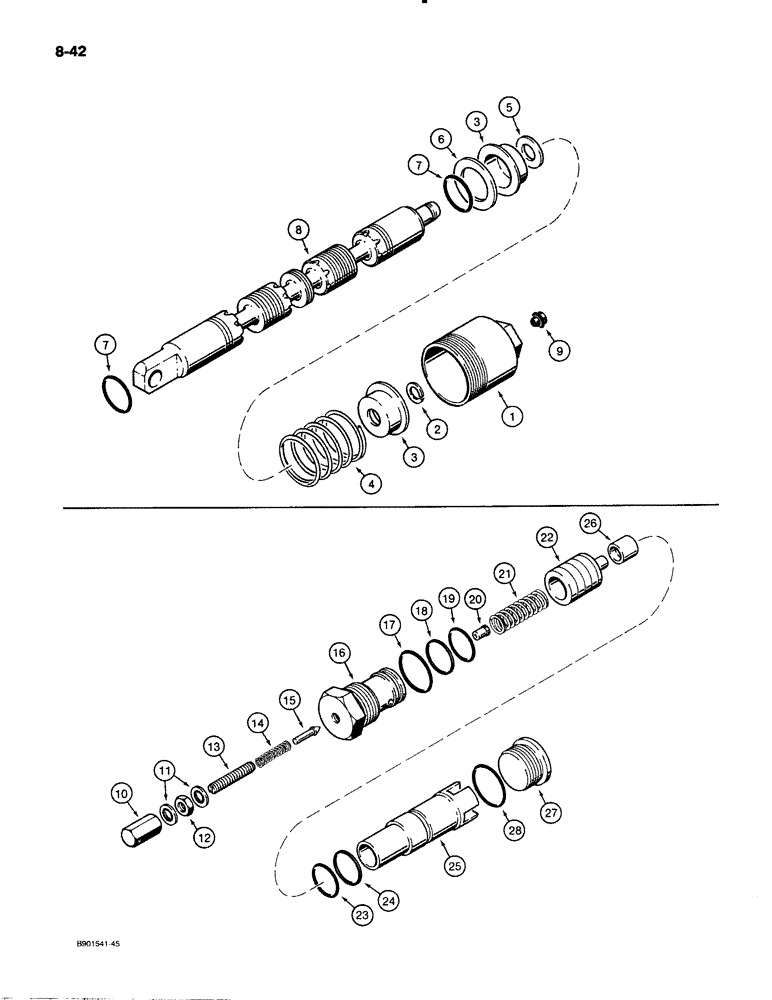

Запчасти Case W20C (8-42) - VALVE COMPONENTS (08) - HYDRAULICS

S300863

SPOOL

ASSEMBLY - valve, clam bucket, Includes: Ref. 1 - 9

1шт.

1

N6775

COVER

- spool end, clam bucket

1шт.

2

A27020

RING

- snap, at cap end, clam bucket spool

1шт.

3

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring retaining, clam bucket spool

2шт.

4

A15981

SPRING

- spool centering, clam bucket

1шт.

5

A25286

WASHER

SPACER - spring seat, clam bucket spool

1шт.

6

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - O-ring, clam bucket spool

1шт.

7

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- spool, clam bucket

2шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve, clam bucket

1шт.

9

N6644

PLUG

- rubber, used with N6775, item 1, clam bucket spool

1шт.

S300834

VALVE

ASSEMBLY - main relief, Includes: Ref. 10 - 28

1шт.

10

S300839

NUT

CAP - locking, adjustment screw, main relief valve

1шт.

11

D26270

WASHER, SEALING

WASHER - special, main relief valve

2шт.

12

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 NF, main relief valve

1шт.

13

176-298

SCREW,Sl Hdls, 5/16" - 24 x 1 1/2", Flat Pt

- set, 5/16 NF x 1-1/2 inch, main relief valve

1шт.

14

D26268

SPRING

- pilot, main relief valve

1шт.

15

D26267

PLUNGER

- relief valve

1шт.

16

S300838

CAP

- relief valve

1шт.

17

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1/64 inch wide, main relief valve

1шт.

18

L32619

RING

- backup, small O-ring, main relief valve

1шт.

19

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- small, main relief valve

1шт.

20

D26266

SEAT

- plunger, main relief valve

1шт.

21

L32617

SPRING

- relief valve

1шт.

22

L32620

VALVE POPPET

POPPET - relief valve

1шт.

23

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- small, main relief valve

1шт.

24

L32619

RING

- backup, small O-ring, main relief valve

1шт.

25

L32616

SLEEVE

SEAT - relief valve

1шт.

26

L32618

VALVE

SLEEVE - relief valve

1шт.

27

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

main relief valve, Includes Ref 28 Hex Soc, 1 3/16"-12 ORB

1шт.

28

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1/64 inch wide, main relief valve

1шт.
