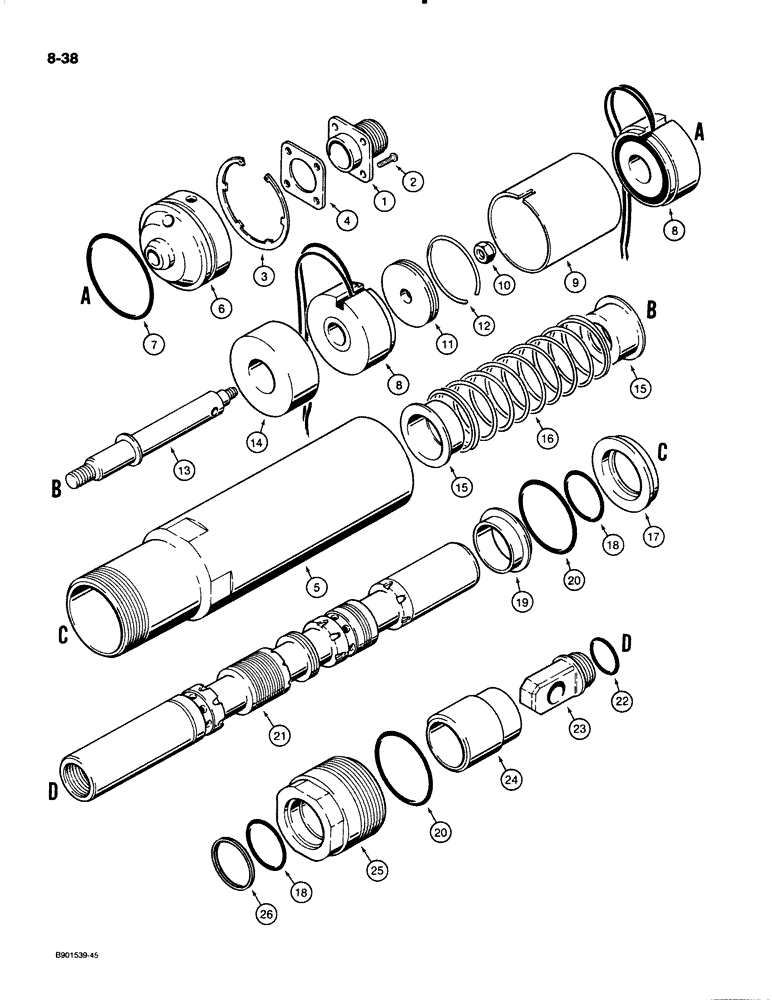

Запчасти Case W20C (8-38) - S300836 LIFT SPOOL (08) - HYDRAULICS

S300836

SPOOL

ASSEMBLY - valve, lift, Includes: Ref. 1 - 26

1шт.

1

R33408

CONNECTOR, ELEC

SOCKET - magnetic detent

1шт.

2

S300856

SCREW

- special, connector to spool end plug

4шт.

3

S300855

OIL SEAL

RING - retaining, spool end plug

1шт.

4

D80410

GASKET

- connector

1шт.

5

S300857

TUBE

HOUSING - magnetic detent

1шт.

6

S300854

SPACER

PLUG - spool end

1шт.

7

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING - spool end plug

1шт.

8

S300847

SOLENOID

COIL - magnetic detent

2шт.

9

S300861

SPACER

- magnetic coil

1шт.

10

S300865

NUT

- lock, detent plate

1шт.

11

S300853

WASHER

PLATE - detent

1шт.

12

S300862

CIRCLIP

RETAINER - detent plate

1шт.

13

S300860

TUBE

EXTENSION - spool, magnetic detent

1шт.

14

S300851

CENTERING RING

RETAINER - detent coil

1шт.

15

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

16

S300858

SPRING

- spool centering

1шт.

17

L32640

RETAINER

- O-ring, inner

1шт.

18

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- inner, small

2шт.

19

L32639

RETAINER

- O-ring, outer

1шт.

20

L32613

O-RING

- outer, large

2шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - valve, lift

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

S300859

EYE

- spool

1шт.

24

D59673

SLEEVE CYLINDER

SEAL - spool, inner

1шт.

25

D59674

RUBBER SEAL

RETAINER - spool seal

1шт.

26

D59675

WIPER

- spool

1шт.
