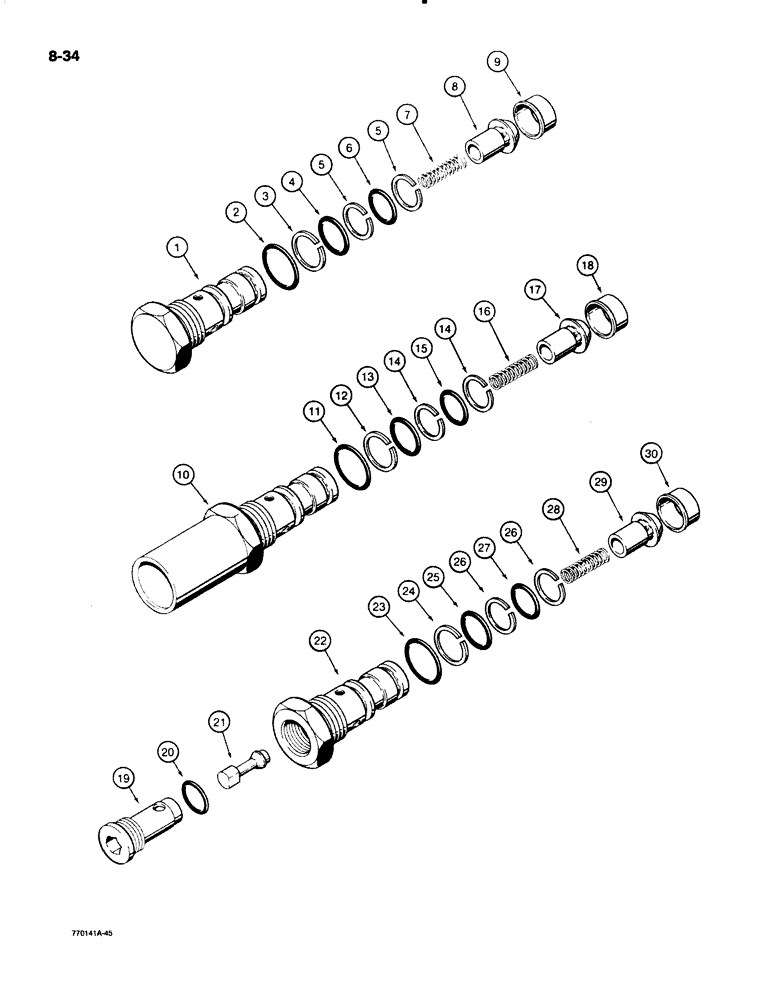

Запчасти Case W20C (8-34) - VALVE COMPONENTS (08) - HYDRAULICS

L35320

VALVE

LOAD CHECK VALVE ASSEMBLY - control valve, used at port 2B on Figure 8-20 and port 3B on Figure 8-24, Includes: Ref. 1 - 9

1шт.

1

L32632

VALVE

CAP - load check valve

1шт.

2

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- outer, load check valve

1шт.

3

A41346

RING

BACKUP RING - load check valve, outer

1шт.

4

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- center, load check valve

1шт.

5

G32626

RING

BACKUP RING - load check valve, center and inner

2шт.

6

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- inner, load check valve

1шт.

7

D48818

SPRING

- load check valve

1шт.

8

L32622

VALVE POPPET

POPPET - load check valve

1шт.

9

L35334

SLEEVE

SEAT - poppet, load check valve

1шт.

L35386

VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - used at port 1A, see Figure 8-20, Includes: Ref. 10 - 18

1шт.

L35319

VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - used at port 1B, see Figure 8-20, Includes: Ref. 10 - 18

1шт.

10

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - circuit relief valve

1шт.

11

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- outer, circuit relief valve

1шт.

12

A41346

RING

BACKUP RING - relief valve, outer, circuit

1шт.

13

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- center, circuit relief valve

1шт.

14

G32626

RING

BACKUP RING - relief valve, center and inner, circuit

2шт.

15

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- inner, circuit relief valve

1шт.

16

D48818

SPRING

- load check valve, circuit relief

1шт.

17

L32622

VALVE POPPET

POPPET - load check valve, circuit relief

1шт.

18

L35334

SLEEVE

SEAT - poppet, load check valve, circuit relief

1шт.

L35321

VALVE

CHECK VALVE - anticavitation, used at port 2A on Figure 8-20 and port 3A on Figure 8-24, and load check valve, Includes: Ref. 19 - 30

1шт.

19

L32628

PLUG

- anticavitation check valve, and load

1шт.

21

L32626

SPOOL

POPPET - small, anticavitation and load check valve

1шт.

22

L32627

VALVE

CAP - anticavitation check valve

1шт.

23

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- outer, anticavitation and load check valve

1шт.

24

A41346

RING

BACKUP RING - check valve, outer, anticavitation and load

1шт.

25

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- center, anticavitation and load check valve

1шт.

26

G32626

RING

BACKUP RING - check valve, center and inner, anticavitation and load

2шт.

27

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- inner, anticavitation and load check valve

1шт.

28

D48818

SPRING

- load check valve, anticavitation

1шт.

29

L32622

VALVE POPPET

POPPET - load check valve, anticavitation

1шт.

30

L35334

SLEEVE

SEAT - poppet, load check valve, anticavitation

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug, anticavitation and load check valve

1шт.
