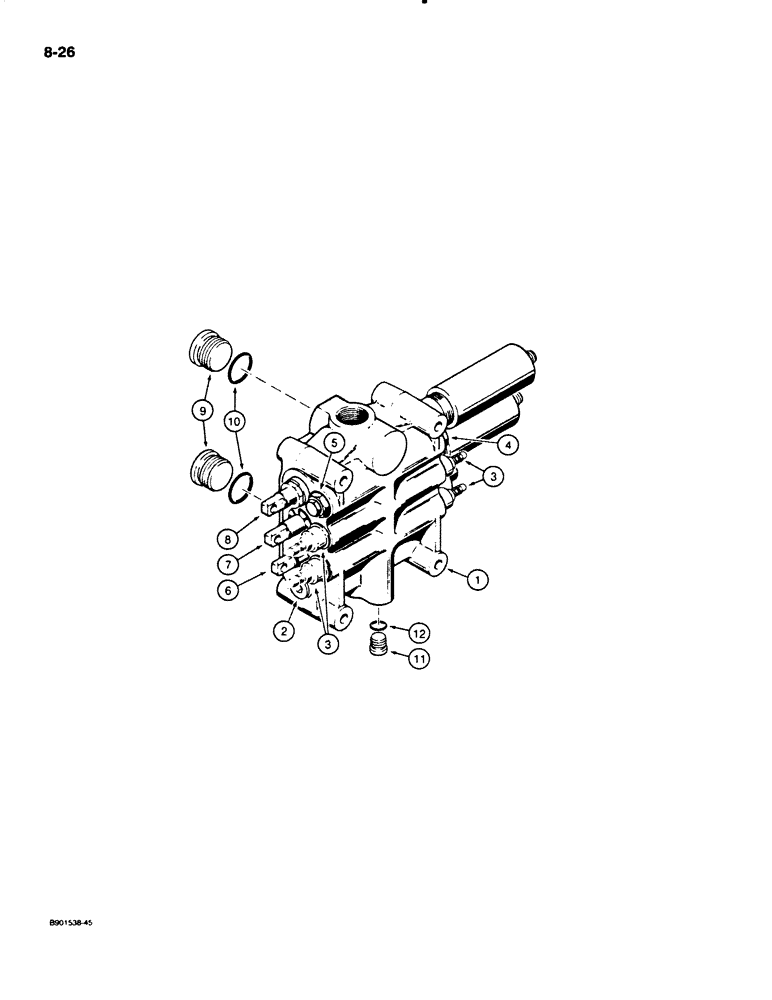

Запчасти Case W20C (8-26) - L127095 LOADER CONTROL VALVE - 3 SPOOL (08) - HYDRAULICS

L127095

VALVE

ASSEMBLY - loader control, 3 spool, Parker Hannifin No. VDPSP24DRF212, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

S300834

VALVE

- main relief, parts list Figure 8-42

1шт.

3

D146629

VALVE PRESSURE RELIE

VALVE - circuit relief, used in ports 1A, 1B, 2A and 2B of clam and bucket spools, parts list Figure 8-46

4шт.

4

D146628

VALVE

- load check, used in port 3B of lift spool, parts list Figure 8-44

1шт.

5

S300837

VALVE

- anticavitation, used in port 3A of lift spool, parts list Figure 8-44

1шт.

6

S300863

SPOOL

- clam bucket, parts list Figure 8-42

1шт.

7

S300835

SPOOL

- bucket, parts list Figure 8-40

1шт.

8

S300836

SPOOL

- lift, parts list Figure 8-38

1шт.

9

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- hex socket, 1-5/8-12 inch O-ring boss, Includes: Ref. 10

2шт.

10

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

11

86625138

PLUG,7/18" - 14

Includes Ref. 12 Hex Soc, 7/8"-14 ORB

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
