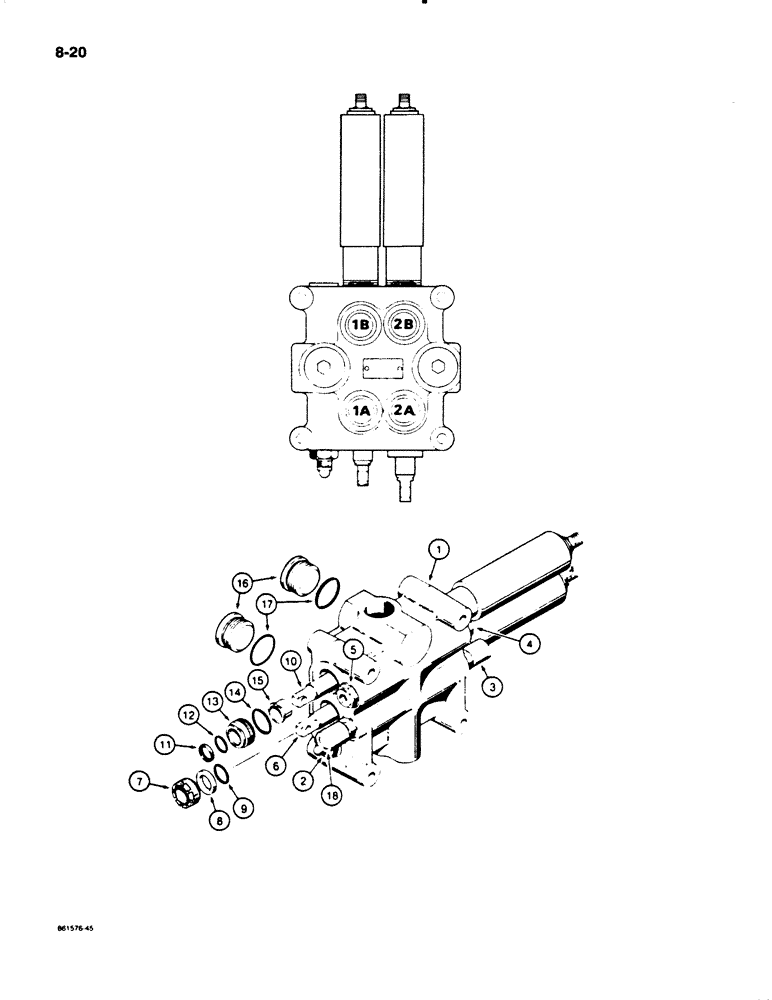

Запчасти Case W20C (8-20) - L70410 LOADER CONTROL VALVE (2 SPOOL) (08) - HYDRAULICS

L70410

SPOOL

VALVE ASSEMBLY - loader control, 2 spool, Parker Hannifin No. VDSP24RF69, no longer available, when replacing complete valve order L127094, parts list Figure 8-22 and lift and bucket control rods on Figure 8-70, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

L32614

VALVE

MAIN RELIEF VALVE - parts list Figure 8-32

1шт.

3

L35319

VALVE

CIRCUIT RELIEF VALVE - used at port 1B, parts list Figure 8-34

1шт.

4

L35320

VALVE

LOAD CHECK VALVE - used at port 2B, parts list Figure 8-34

1шт.

5

L35321

VALVE

LOAD CHECK VALVE - regeneration, used at port 2A, parts list Figure 8-34

1шт.

6

D63369

SPOOL

- bucket, parts list Figure 8-30

1шт.

L32607

SEAL

ASSEMBLY - bucket spool, Includes: Ref. 7 & 8

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- special

1шт.

10

D63370

SPOOL

- lift, parts list Figure 8-28

1шт.

L32610

SEAL

ASSEMBLY - lift spool, Includes: Ref. 11 - 15

1шт.

11

A28211

OIL SEAL

WIPER - spool

1шт.

12

N6577

O-RING

- small

1шт.

13

L32612

RETAINER

- seal

1шт.

14

L32613

O-RING

- large

1шт.

15

L32611

SLEEVE

- spool

1шт.

16

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- hex socket head, 1-5/8" - 12 NF, Includes: Ref. 17

2шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- plug

1шт.

18

L35386

VALVE

CIRCUIT RELIEF VALVE - used at port 1A, parts list Figure 8-34

1шт.
