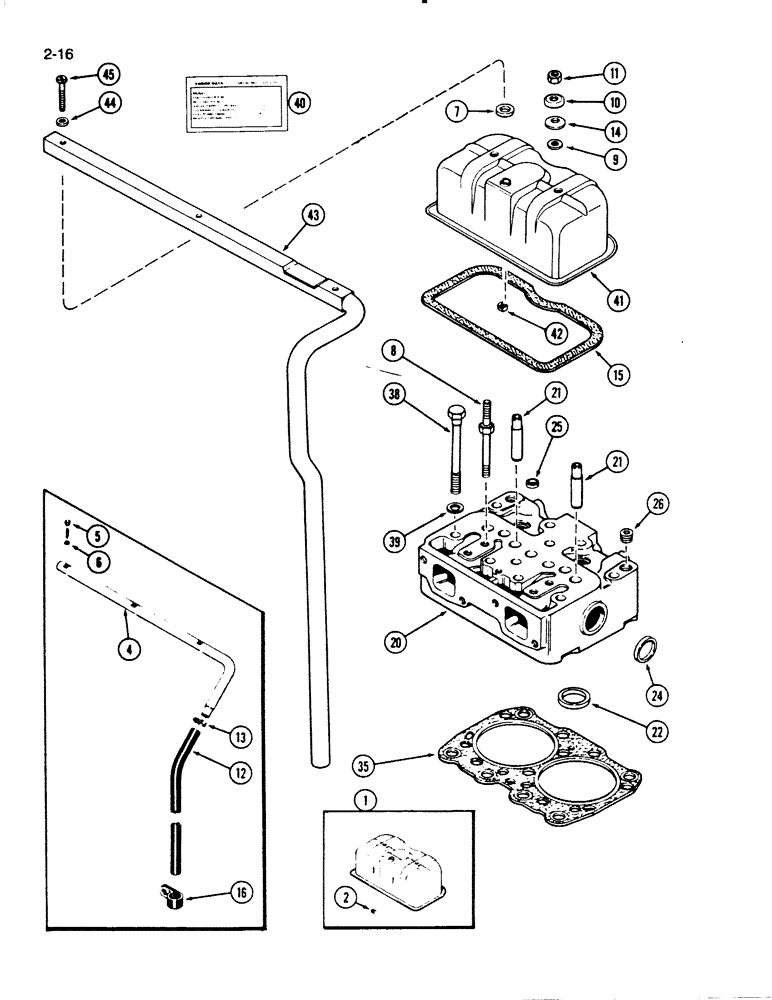

Запчасти Case W20C (2-16) - CYLINDER HEAD AND COVER, 504BD AND 504BDT ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head (If equipped), Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - speed grip, 1/4 inch NC

1шт.

4

A66640

TUBE

TUBE - breather (If equipped)

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT, Hex, 1/4"-20 x 2 1/2", G5

3шт.

6

A34133

GASKET

GASKET - breather tube, upper (If equipped)

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - breather tube, lower

3шт.

8

A67121

STUD

STUD -, Serial Range: cover-head

6шт.

9

A142098

GROMMET

GROMMET - cover stud, rubber

6шт.

10

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - dished, cover nut

6шт.

11

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

6шт.

12

A156416

HOSE,25.4 mm ID x 1016.00 mm, SAE J200F

Breather

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - adj, 13/16 - 1-3/4 inch diameter

1шт.

14

195-529

WASHER,7/16", SAE

WASHER - flat, 15/32 x 59/64 x 1/16 inch

6шт.

15

A156960

CYLINDER HEAD GASKET,3.05mm Thk

GASKET -, Serial Range: cover-head

3шт.

16

D34033

CLAMP

CLAMP - breather tube

1шт.

20

A67352

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Casting No. A67351), Includes: Ref. 21 - 25

3шт.

20

AR148939

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

20

AC148939

CORE-CYLINDER HEAD

Return Number

3шт.

21

A41783

GUIDE

GUIDE - valve stem

4шт.

22

A58619

INSERT

INSERT - exhaust valve seat

2шт.

24

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - cup type, 1-5/8 inch diameter

2шт.

25

A58620

PLUG,Cup, 3/4", Stainless

PLUG - cup type, 3/4 inch diameter

3шт.

26

221-1843

PLUG

PLUG - hex socket, 3/8 inch PT

6шт.

35

REF

INSTRUCTION

GASKET - cylinder head (See Figure 2-32)

3шт.

38

A76638

BOLT

BOLT - hex, 5/8 NC x 6-1/4 inch

30шт.

39

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flat, hardened

30шт.

40

A157039

DECAL

SPARE PART DECAL - engine information (504BD Natural Aspirated)

1шт.

40

321-5737

DECAL

DECAL - engine information (504BDT Altitude Compensating)

1шт.

41

A166170

COVER

COVER ASSEMBLY - cylinder head

3шт.

42

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - speed grip, 1/4 inch NC

1шт.

43

A166120

TUBE

TUBE - breather (If equipped)

1шт.

44

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube bolt (If equipped)

3шт.

45

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

SCREW - machine, pan head Phillips, 1/4 NC x 2-1/2 inch

3шт.
