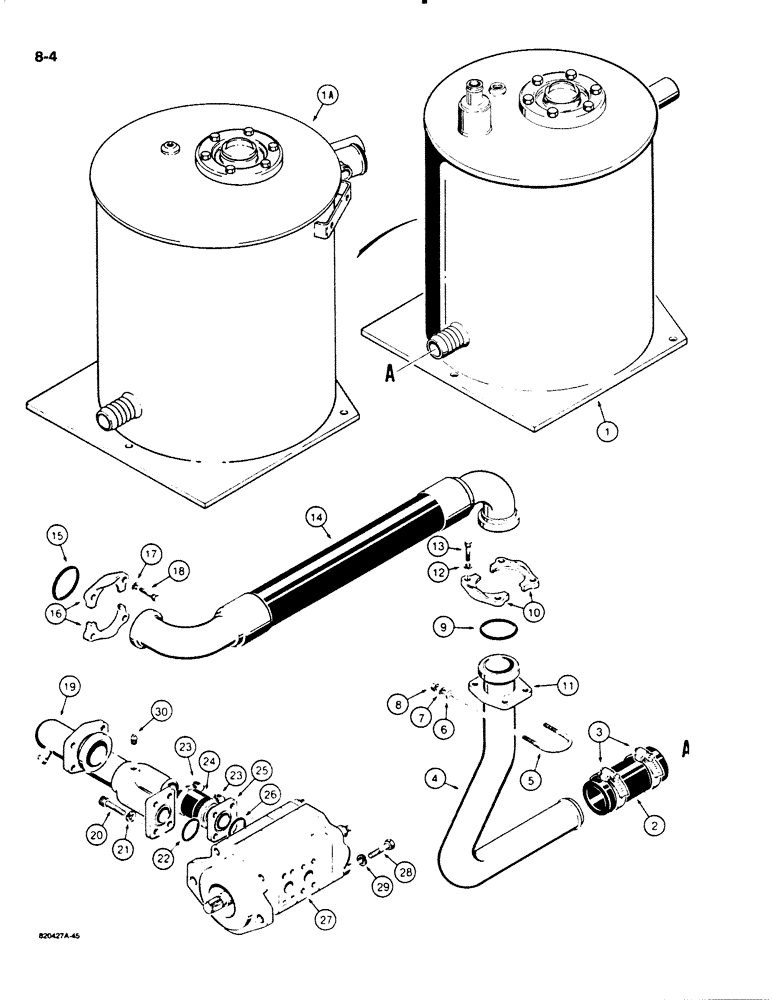

Запчасти Case W20C (8-04) - HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (08) - HYDRAULICS

1

L109496

TANK, HYDRAULIC OIL

TANK - hydraulic reservoir, see Figure 8-02 for parts list and correct reservoir

1шт.

1a

L115589

TANK, HYDRAULIC OIL

TANK - hydraulic reservoir, see Figure 8-02 for parts list and correct reservoir

1шт.

2

L74461

HYDRAULIC HOSE,2.00" ID x 5.00", SAE 100R1 Type A

1шт.

3

214-177

CLIP

CLAMP - hose

2шт.

4

L106632

TUBE ASSY.

TUBE - suction

1шт.

5

R53616

BOLT

U-BOLT - special, suction tube

1шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

9

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- split flange

1шт.

10

A14141

FLANGE

SPLIT FLANGE - tube

2шт.

11

L51691

CLAMP

- flange

1шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

14

L114763

HOSE,50.8mm ID x 899.16mm L, SAE 100R4

- 35-13/32" (899 mm) long

1шт.

15

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- split flange

1шт.

16

L14386

CLAMP

SPLIT FLANGE - tube

2шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

19

L109385

TUBE ASSY.,5.2" L

TUBE - suction, models without auxiliary steering

1шт.

19

L109715

TUBE ASSY.,4.2, 5.2" L

TUBE - suction, models with auxiliary steering, not shown

1шт.

20

61-816

HEX SOC SCREW,1/2"-13 x 1"

SCREW - hex, socket head, 1/2" - 13 NC x 1"

8шт.

21

92-8

LOCK WASHER,1/2"

8шт.

22

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- flange

1шт.

23

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

24

A15675

INTAKE AIR HOSE,50.80 mm ID x 63.50 mm, SAE 20R1

HOSE 2.00" ID x 2.50", SAE 20R1 - Low pressure

1шт.

25

L17812

FLANGE

- tube

1шт.

26

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- flange

1шт.

27

L26895

PUMP

ASSEMBLY - hydraulic, parts list Figure 8-18

1шт.

L26895R

REMAN-HYD PUMP

W18B CASE WHEEL LOADER, W20C CASE WHEEL LOADER (NORTH AMERICA)

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

28

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

2шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

30

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/2" NPT

1шт.
