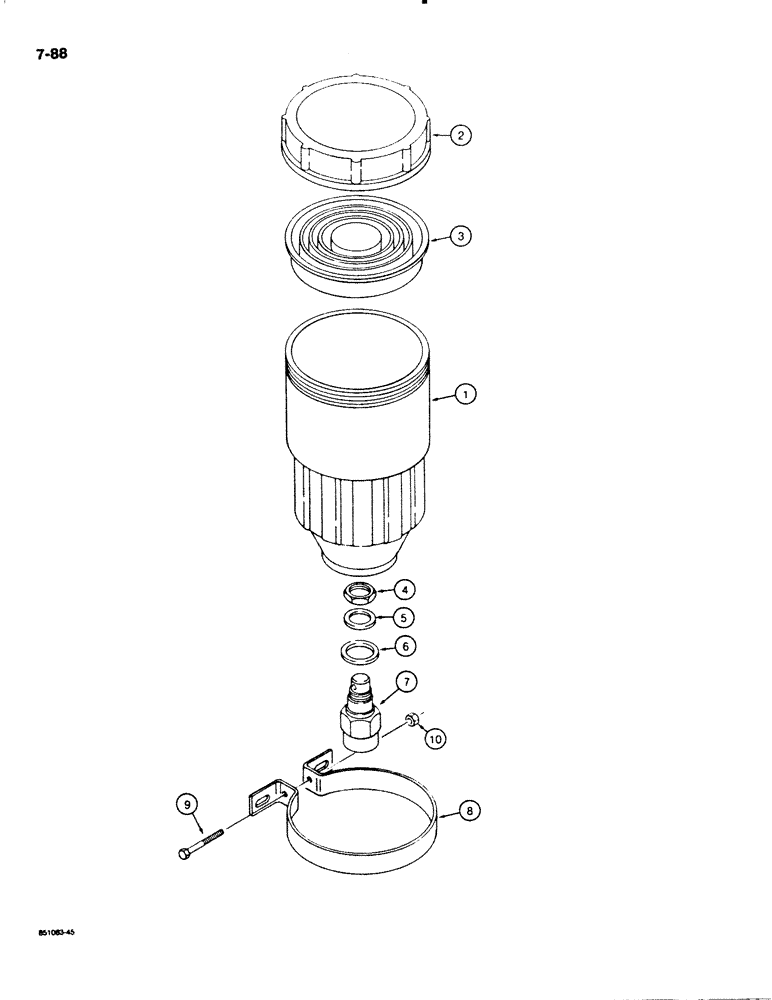

Запчасти Case W20C (7-88) - L114928 BRAKE RESERVOIR (07) - BRAKES

L114928

RESERVOIR ASSY.

RESERVOIR - remote, brake fluid, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - reservoir

1шт.

2

N13037

CAP

- reservoir

1шт.

3

N13038

DIAPHRAGM

- reservoir

1шт.

4

131-578

NUT,1/2"-20

1/2 - 20 NF; Thin Height

1шт.

5

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

6

N13039

GASKET

- fitting

1шт.

7

N13040

FITTING

- special

1шт.

8

NSS

NOT SOLD SEPARAT

STRAP - mounting

1шт.

9

182-134

SCREW,Sl Pan Hd, #10 - 24 x 2"

MACHINE SCREW - pan head, slotted, No. 10 - 24 NC x 2"

1шт.

10

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.
