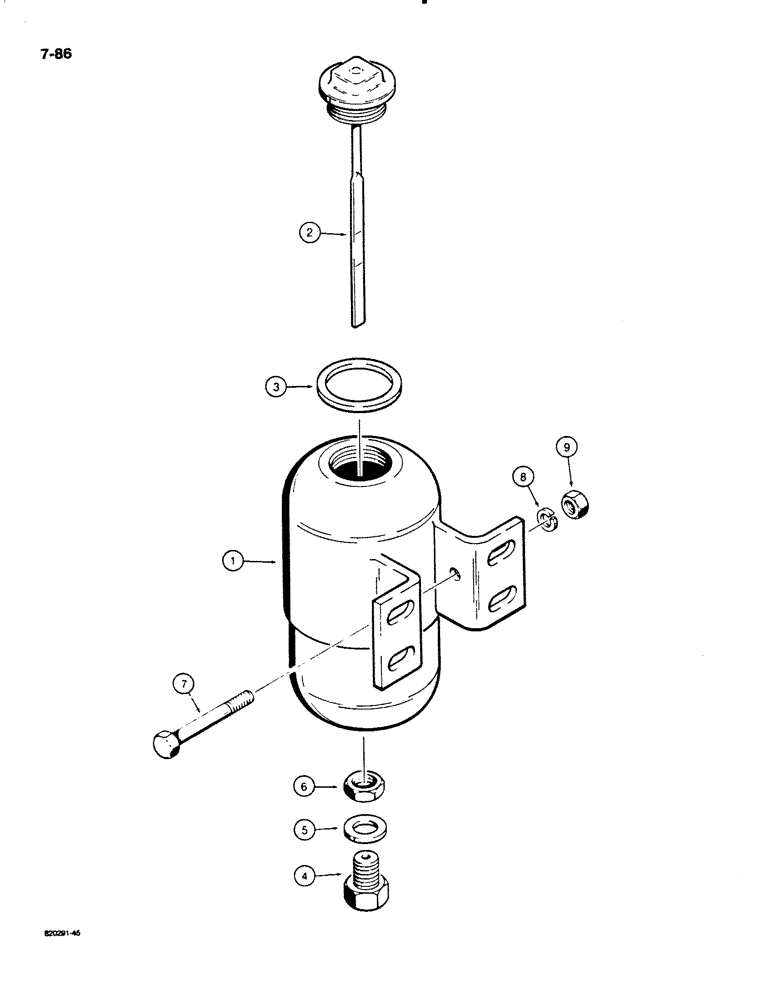

Запчасти Case W20C (7-86) - L71025 BRAKE RESERVOIR (07) - BRAKES

L71025

RESERVOIR

- remote, brake fluid, no longer available, order L114928 reservoir, parts list Figure 7-88, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - reservoir

1шт.

2

D77489

CAP

AND DIPSTICK - reservoir

1шт.

3

D46693

GASKET

- cap

1шт.

4

L76300

CONNECTOR, ELEC

FITTING - special

1шт.

5

A12988

GASKET

WASHER - special

1шт.

6

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

7

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

1шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

9

129-121

NUT,1/4"-28, G5

1шт.
