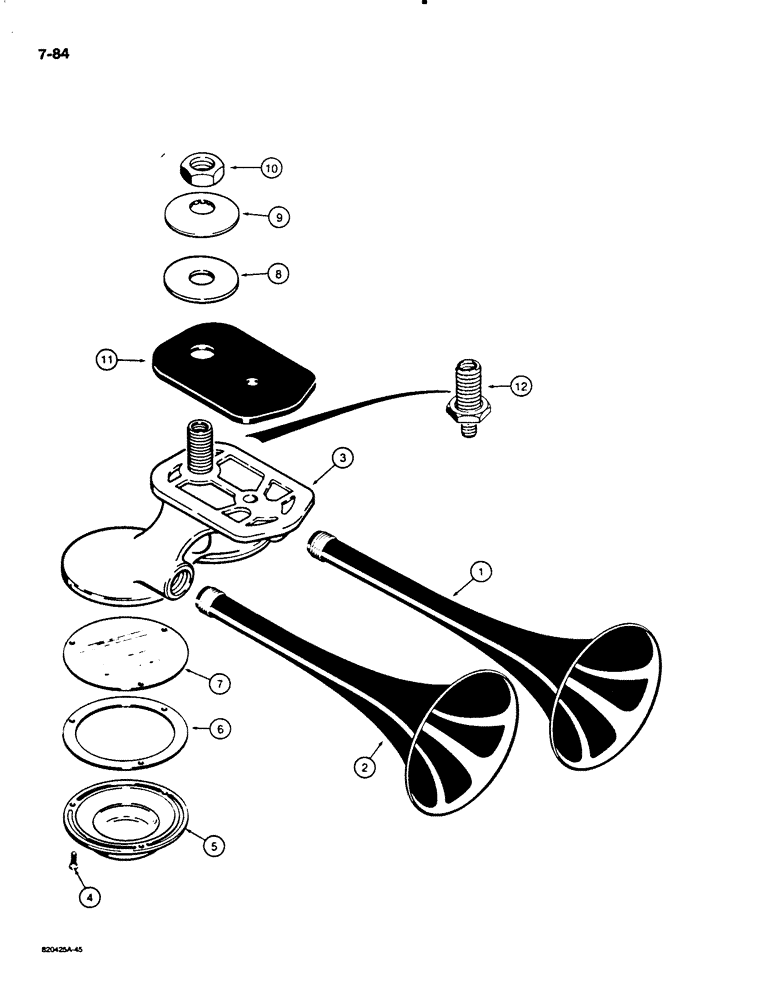

Запчасти Case W20C (7-84) - L76560 HORN (07) - BRAKES

L76560

HORN

ASSEMBLY - air, Includes: Ref. 1 - 12

1шт.

1

D76966

HORN

- long

1шт.

2

D76967

HORN

- short

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - horn

1шт.

D76968

KIT

- diaphragm, Includes: Ref. 4 - 7

2шт.

Kit includes additional hardware to adapt to other horns.

1шт.

It takes two D76968 kits to service the dual horn assy.

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - cover

3шт.

5

NSS

NOT SOLD SEPARAT

COVER - body

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cover

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM - horn

1шт.

8

195-108

WASHER,5/8"

- flat, , plated 5/8"

1шт.

9

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal tooth lock, 5/8", plated

1шт.

10

129-127

NUT,5/8"-18, G5

1шт.

11

N7907

GASKET

- horn

1шт.

12

N7908

FITTING

- horn

1шт.
