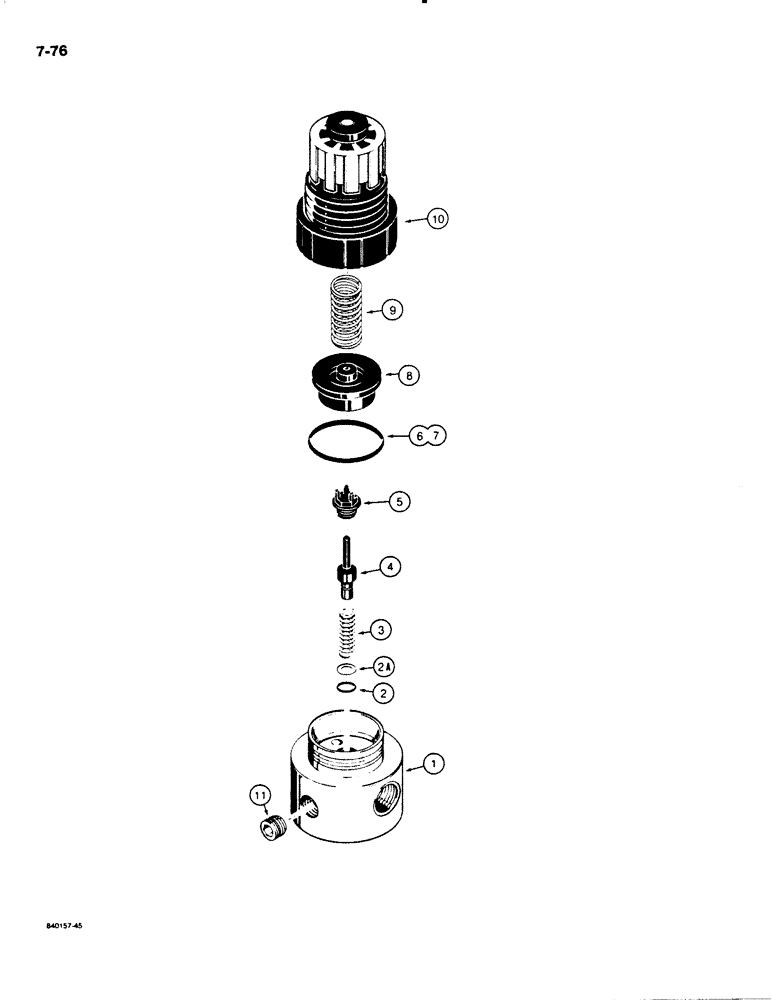

Запчасти Case W20C (7-76) - L112300 BRAKE PRESSURE REDUCING VALVE (07) - BRAKES

L112300

VALVE

- pressure reducing, brake, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

D76940

KIT

- repair, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

2a

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - small

1шт.

4

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

5

NSS

NOT SOLD SEPARAT

GUIDE - poppet

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

N8744

KIT

- piston, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

9

D76942

SPRING

- large

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - hex socket

1шт.
