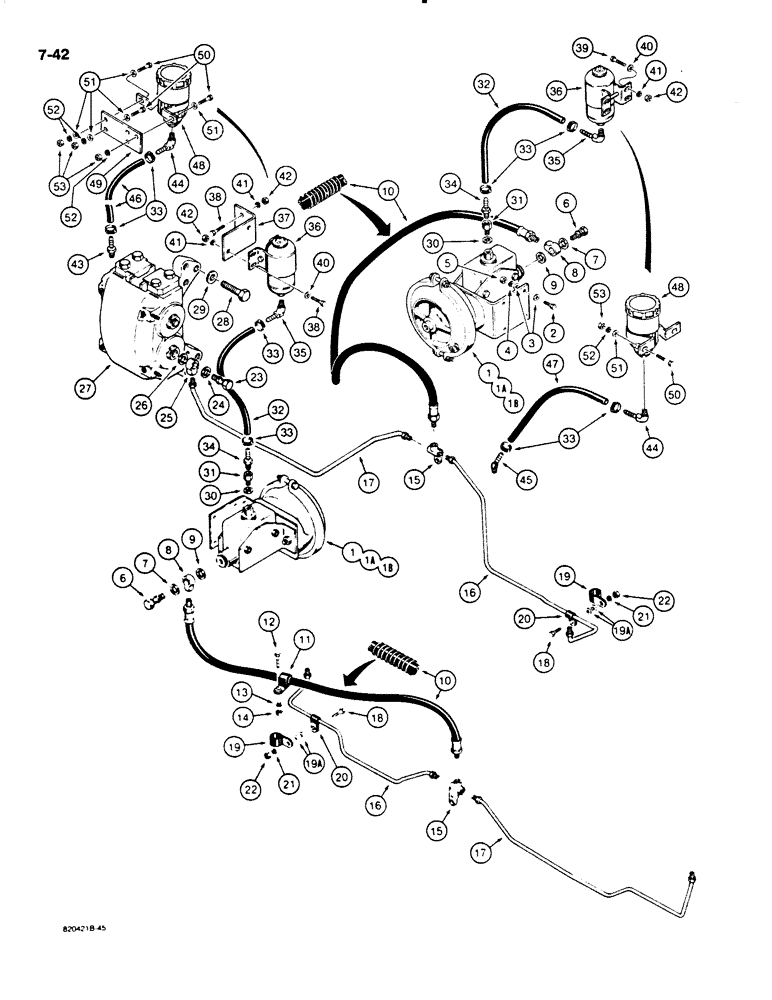

Запчасти Case W20C (7-42) - W20C BRAKE SYSTEM, BRAKE ACTUATORS TO WHEEL CYLINDERS (07) - BRAKES

1

L107985

CYLINDER BLOCK

BRAKE ACTUATOR - Wagner part No. AF104381, parts list Figure 7-58, no longer available, order L113007 brake actuator

2шт.

1a

L112959

CLUSTER

BRAKE ACTUATOR - Wagner part No. AF105171, parts list Figure 7-58, no longer available, order L113007 brake actuator

2шт.

1b

L113007

CYLINDER

BRAKE ACTUATOR - MICO No. 02-460-503, parts list Figure 7-68

2шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

6

A12864

BOLT

- special, tube fitting

2шт.

7

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer, .600" (15.4 mm) ID

2шт.

8

A18531

FITTING

- brake, Serial Range: actuator-tube

2шт.

9

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner, .540" (13.72 mm) ID

2шт.

10

L104445

HOSE,3.17mm ID x 533.4mm L

- 21" (533 mm) long, service replacement hose may not have a protective spring guard which is not required at this location

2шт.

11

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- rear hose only

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

15

A12452

FITTING

TEE -, Serial Range: hose-tubes

2шт.

16

L116825

TUBE,6.35 mm OD

- tee to wheel cylinder, right-hand front and left-hand rear

2шт.

New style tube that goes straight into a reducer in caliper is L110033.

1шт.

17

L116827

TUBE,6.35 mm OD

- tee to wheel cylinder, left-hand front and right-hand rear

2шт.

New style tube that goes straight into a reducer in caliper is L110035.

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

19

R14668

CLAMP

- tube support

4шт.

19a

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

20

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake tube

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

23

A12864

BOLT

- special, tube fitting

4шт.

24

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer, .600" (15.4 mm) ID

4шт.

25

A18531

FITTING

- brake, Serial Range: actuator-tube

4шт.

26

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner, .540" (13.72 mm) ID

4шт.

27

L127645

BRAKE CALIPER

CALIPER - disc brake, parts list Figure 6-82

4шт.

27

L127645R

REMAN-BRAKE ASSY.

W20C

4шт.

27

L127645C

CORE-BRAKE ASSY.

Return Number

4шт.

28

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

24шт.

29

L79179

WASHER

- hardened

24шт.

30

A12988

GASKET

- fitting, used with Wagner power clusters

2шт.

31

L76300

CONNECTOR, ELEC

FITTING - special, used with Wagner power clusters

2шт.

32

REF

INSTRUCTION

HOSE - 1/4" (6 mm) ID x 15-1/2" (374 mm), cut from A21561, see below, used with Wagner brake reservoir

2шт.

33

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

2шт.

34

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

STEM FITTING - straight, used with Wagner reservoir

2шт.

35

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

STEM FITTING - 90 degree, used with Wagner reservoir

2шт.

36

L71025

RESERVOIR

- brake fluid, parts list Figure 7-86, no longer available, order L114928 reservoir, item 48

2шт.

37

L73943

BRACKET

- rear reservoir, used with L71025 reservoir

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

40

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

41

92-6

LOCK WASHER,3/8"

6шт.

42

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

43

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

STEM FITTING - straight, used with Mico reservoir

1шт.

44

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

STEM FITTING - 90 degree, used with Mico reservoir

2шт.

45

217-282

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

STEM FITTING - 45 degree, used with Mico reservoir

1шт.

46

REF

INSTRUCTION

HOSE - 1/4" (6 mm) ID x 17" (432 mm), front, cut from A21561, see below, used with Mico brake reservoir

1шт.

47

REF

INSTRUCTION

HOSE - 1/4" (6 mm) ID x 9-1/2" (241 mm), rear, cut from A21561, see below, used with Mico brake reservoir

1шт.

48

L114928

RESERVOIR ASSY.

RESERVOIR - brake fluid, parts list Figure 7-88

2шт.

49

L114929

BRACKET

- rear reservoir, used with L114928 reservoir

1шт.

50

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- hex head, 3/4" - 16 NC x 1-1/4"

5шт.

51

95-6

WASHER,3/8"

- flat, 3/8"

7шт.

52

92-6

LOCK WASHER,3/8"

5шт.

53

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

5шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

1шт.
